Teflon Tape is a 5 mil pure skived Teflon (PTFE film) tape with a high temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness / coil wraps & separators Teflon Tape Fiberglass Tape Coats
PRODUCT DESCRIPTION
Teflon Tape Fiberglass Tape Coats

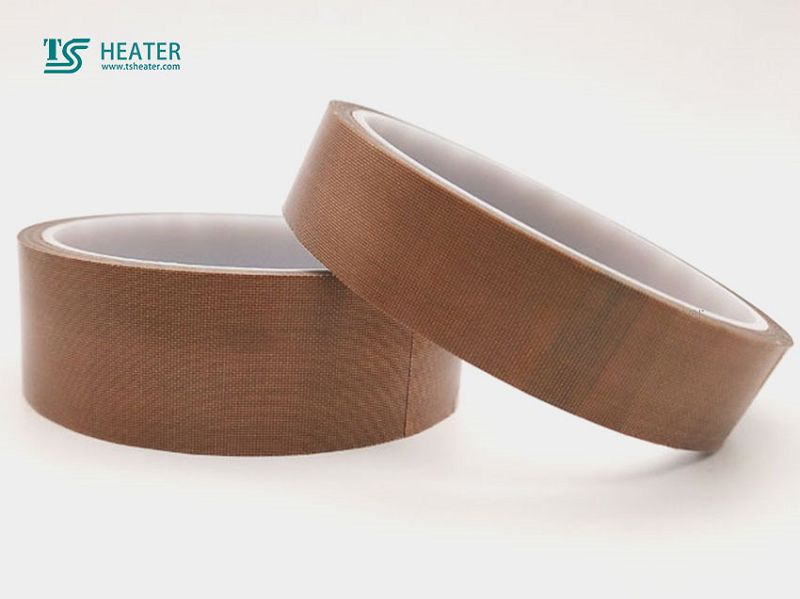

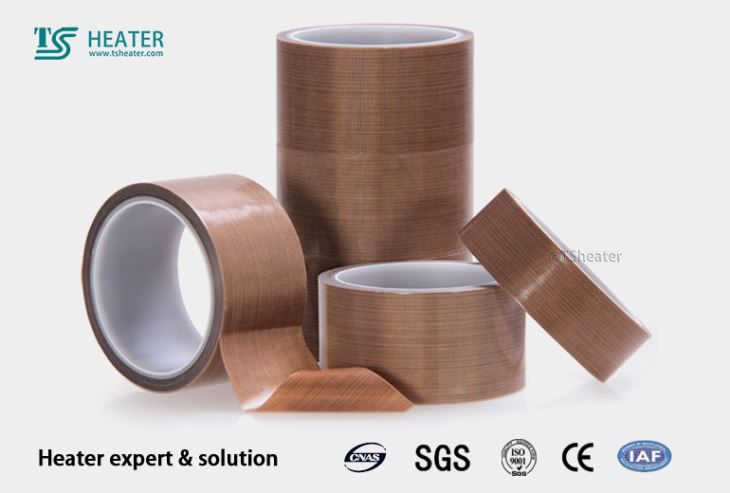

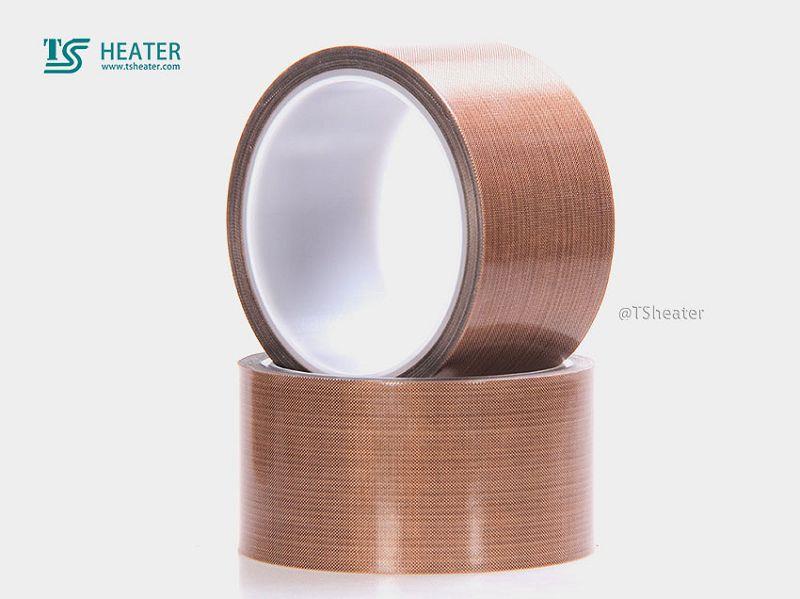

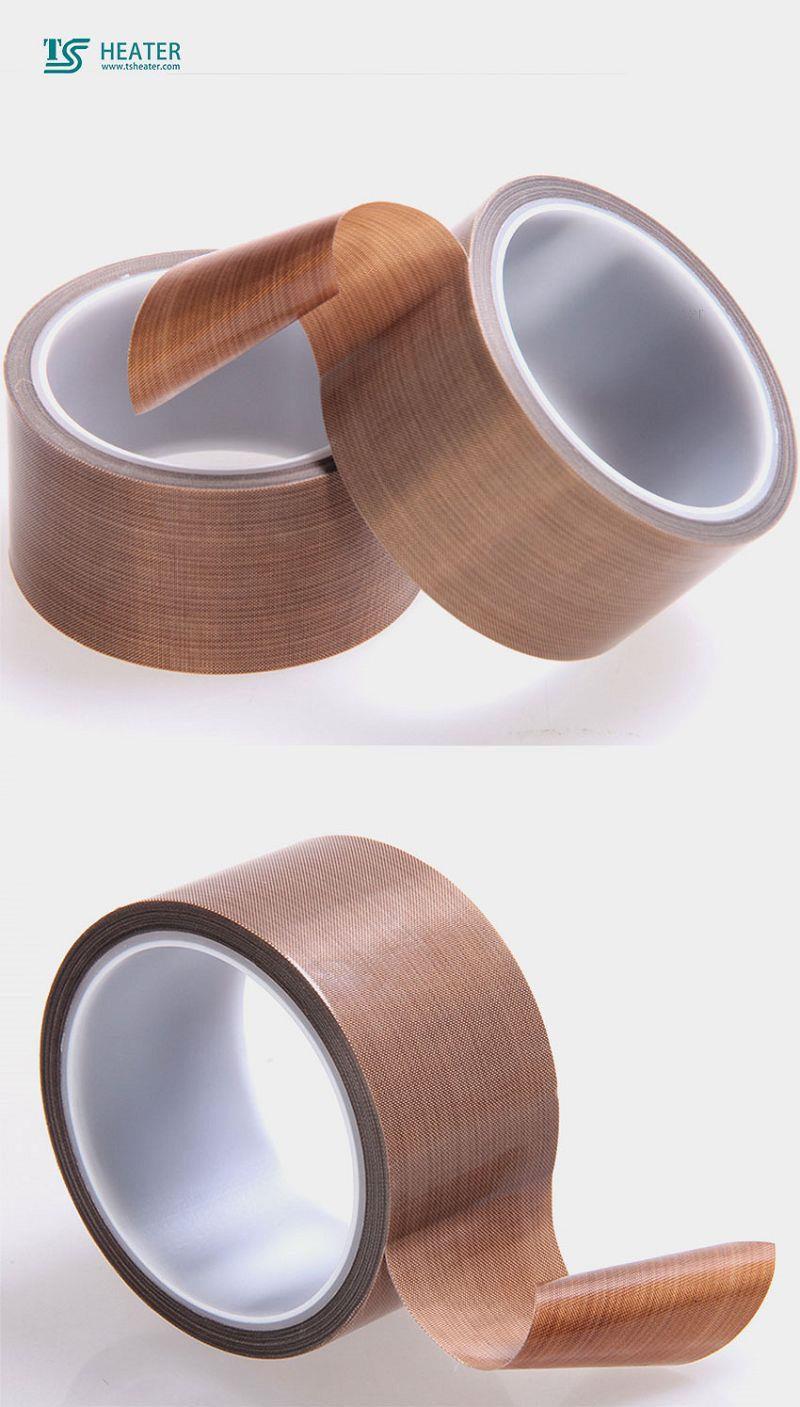

Teflon Tape is a 5 mil pure skived Teflon (PTFE film) tape with a high temperature silicone adhesive. It comes self-wound without a liner. Used in electrical applications such as harness / coil wraps & separators, transformers and slot liners where good insulation and heat resistance are required.
Also used in mechanical applications such as heat sealing bars & jaws, labeling machine pressure pads, chute liners, anti-friction devices, bearings, forming dies, aircraft mold release & guide rails where high temperature, maximum slip and lubricity are required. High elongation of PTFE-5 permits tight wrapping and conforms to sharp bends/irregular surfaces.
* Multiple cases may be shipped per package in order to minimize the charge for shipping.
A PTFE coated glass cloth or Teflon Tape combines the properties of PTFE / Teflon with the mechanical strength of Glass Cloth. It has a good heat and chemical resistance along with excellent non stick properties. It is available in plain or self adhesive backed and as anti static if required. We can cut to any width to suit your requirement.
Temperature: -73°C to +260°C.
Features:
Teflon Tape Fiberglass Tape Coats
Excellent release properties.
Low coefficient of friction.
Easily cleaned.
Good chemical, moisture and corrosion resistance.
Good electrical insulation and di-electric properties.
Food contact approval.
TECHNICAL INFORMATION
Teflon Tape Fiberglass Tape Coats
Adhesive: silicone
Thickness: 7.2 mils (carrier, adhesive) 5 mils (carrier)
Adhesion: 30 ounces per inch (to stainless steel test panel)
Tensile Strength: 15 pounds per inch (longitudinal)
Dielectric Breakdown: 12000 volts
Service/Operating Temperature: -100°F to 500°F
Elongation: 200%
Core: 3" diameter
Description: Self Adhesive High Temperature Heat Resistant Glass Coated PTFE TeflonTape
Size: 100mm Wide x 0.13mm Thick x 10 Metres Long
Pack Qty: 1 Rolls
Colour: Bronze
Adhesive: Quality Pressure Sensitive Adhesive

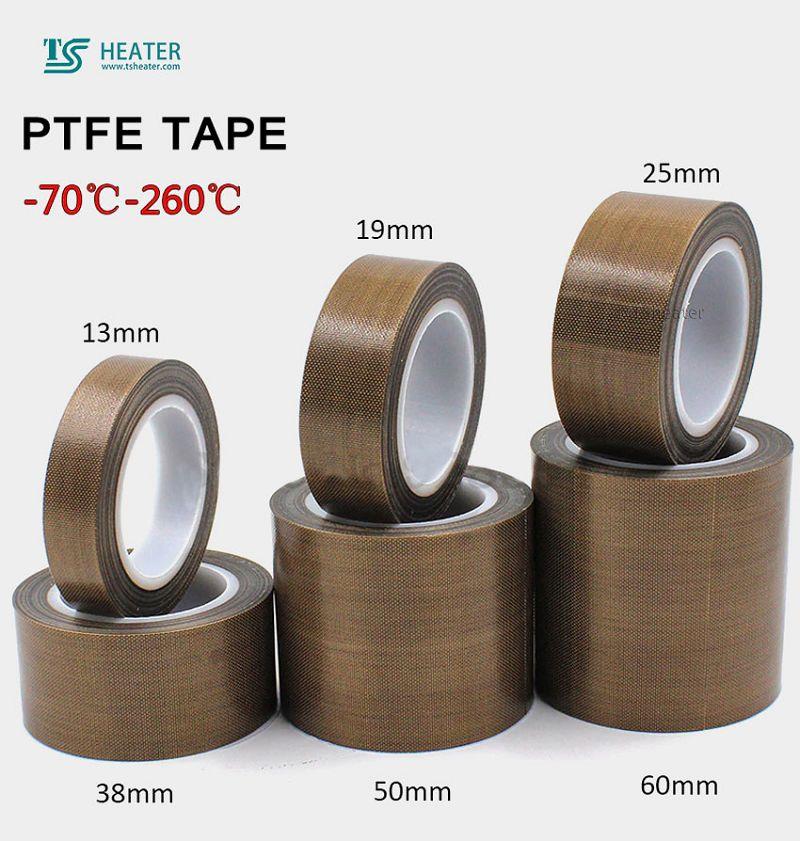

Other Sizes and thicknesses: We stock 25mm, 50mm and 100mm in the standard thickness, however we can also supply a wide range of thicknesses and widths as a special order item.
Buying from us is buying direct and you will not find this quality of Glass Coated Cloth PTFE Teflon Tape cheaper elsewhere and we back this up with our price guarantee.
PTFE has excellent weather resistance and has an extremely wide working temperature range. It is the best of the solid dielectrics and an excellent insulator. It is worth noting that it cannot be used on drinking water pipes.
