Power: We generally do it according to 8W per square centimeter. The Cast copper heater can be made into various shapes: round plate, long plate, triangle, cylinder, square plate, Hough, round rod, long strip, wing, and so on.
Formulate:
1. Specific size requirements: length (mm) * width (mm); diameter (mm) * Height (mm)
2. Operating voltage: 380V, 220V, 110V, 36V. . . Etc., customized according to customer needs
3. Power: We generally do it according to 8W per square centimeter.
4. The Cast copper heater can be made into various shapes: round plate, long plate, triangle, cylinder, square plate, Hough, round rod, long strip, wing, and so on.
The Cast copper heater uses tubular electric heating elements as heating elements and insulators. According to the requirements of various drawings, the tubular electric heating elements are bent into the required shape, and they are formed by centrifugal casting in the mold. After precision processing on the machine tool, the required Cast copper heater is obtained.
advantage:
1: The Cast copper heater can be closely occluded with the heated body, and the high-temperature resistant working temperature can reach 800℃. Fast heating, uniform heating, good conductivity, anti-pollution, long life, safe and reliable. It is selected as one of the most ideal heaters for high-temperature resistance in The Cast copper heater.
2: High thermal conductivity. (Power design 6.0-8.0w/cm2, maximum working temperature is not more than 400℃)
use:
Used in plastic machinery, rubber and plastic machinery, extrusion machinery, and other industries

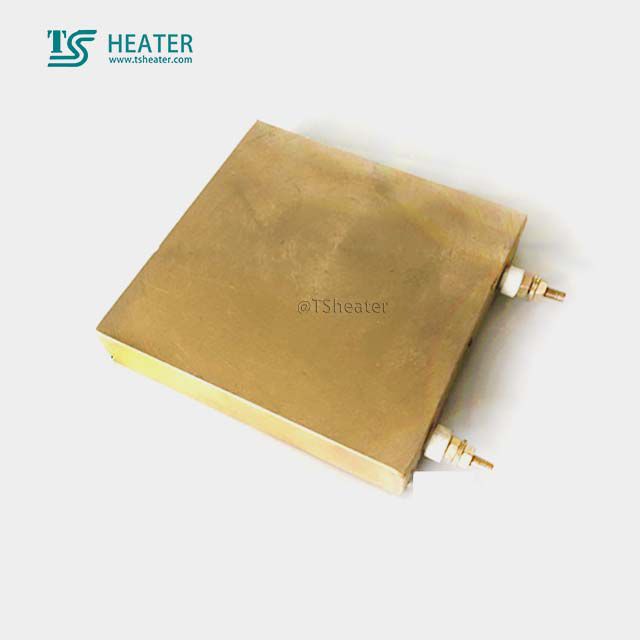

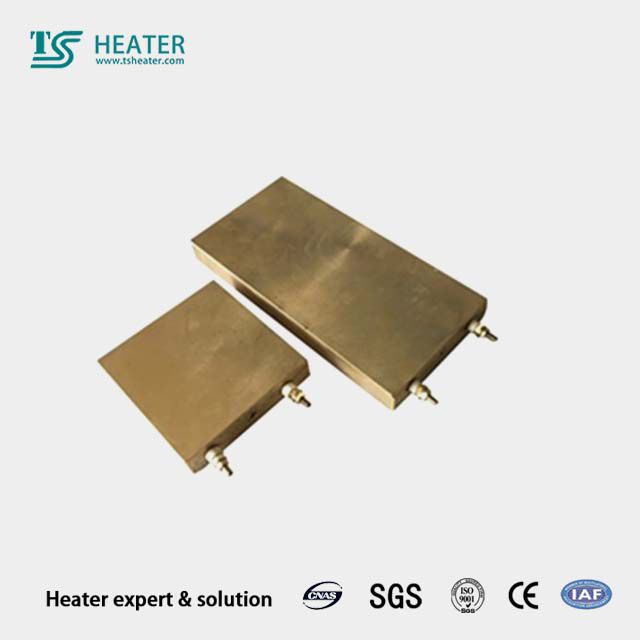

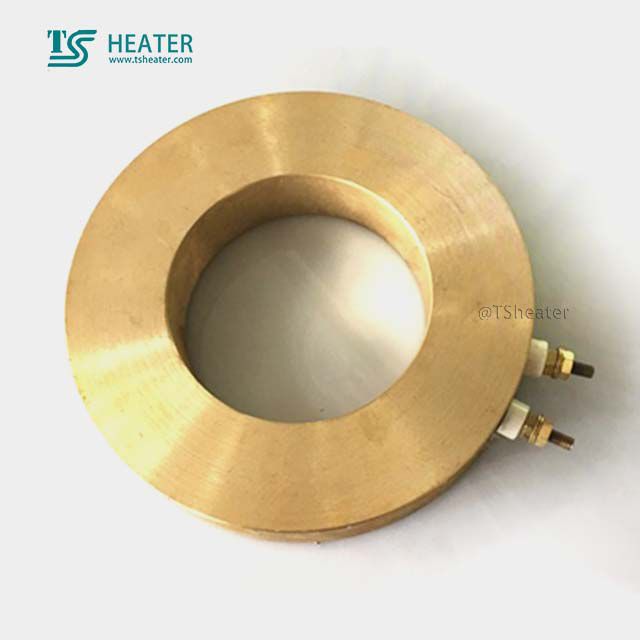

Product display:
