Ceramic Radiation Pipe Heater Element

Ceramic Radiation Pipe Heater Element

There are many types of Ceramic Radiation Pipe Heater Element in our factory. A wide range of products can meet any of your needs.

Description

Classification of the Ceramic Radiation Pipe Heater Element in our factory

1. Wire-mounted spiral surrounds the electric heating radiant tube

This kind of electric heating radiant tube is a heater composed of a heat-resistant alloy steel sleeve and a heater. The working voltage is 220V and the power is generally 3-15KW.

2. Ribbon spiral surrounds the electric heating radiant tube

The structure of this heater is basically the same as the first structure, except that the heating element is wound with a resistance band. The resistance band is generally 1-3 mm thick and 10-20 mm wide. The cores are mostly multiple grouped tubes. The core composition, under the same surface load, the heat radiation area is large, and the material can be saved. Generally, the high-power point heating radiant tube adopts this form.

3. Axial zigzag cage type electric heating radiant tube (commonly known as squirrel cage type)

Its structure is to bend the resistance wire (belt) of the heating element into a "U" shape and string into multiple insulating and high-temperature ceramic support plates, fixed with a heat-resistant rod in the middle, and its power can reach 3-16.5KW. This kind of radiant tube has a long life.





Features of the Ceramic Radiation Pipe Heater Element

1. Practical and reliable. The products of our factory are handed over to the users and have been verified by production.

2. The core material adopts DC argon arc welding to ensure various technical indicators such as surface load and resistance difference.

3. The heat-resistant insulation material is a German formula, the porcelain piece has good thermal shock resistance, high-temperature resistance, long life, and good surface quality

4. Fast heating



Advantages of our factory

1 Available from stock, a variety of styles and specifications, sufficient inventory, can be shipped on the same day

2. Can be customized, specifications, shapes, materials, colors, and craftsmanship, all can be produced according to customer requirements.

3. Our factory direct sales, quality assurance, affordable price,




Application of the Ceramic Radiation Pipe Heater Element

1. Air heating,

2. Heater,

3. Oven

4. Oven furnace

5. Tunnel furnace

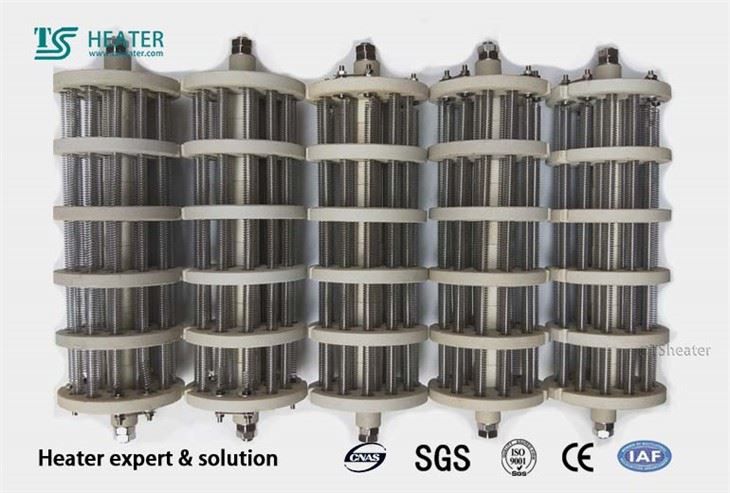

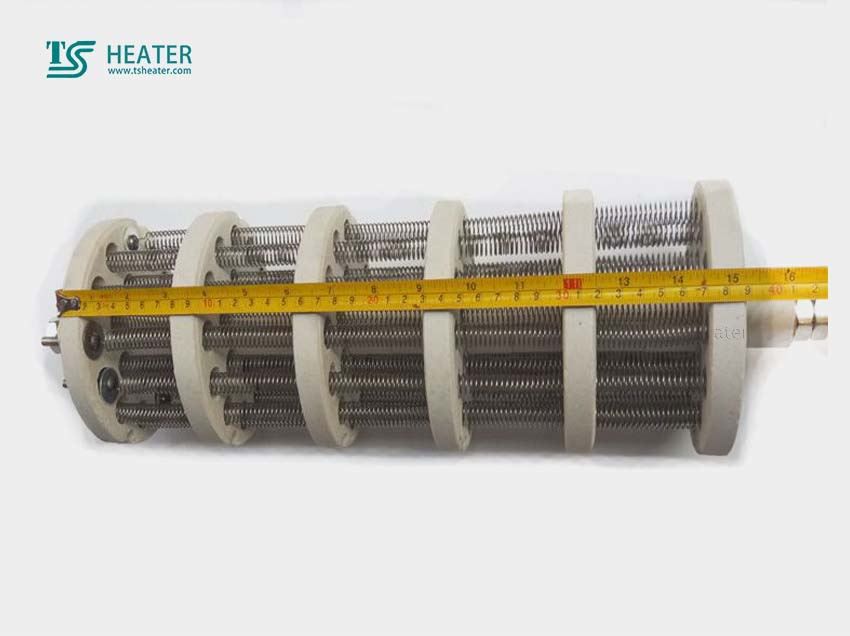

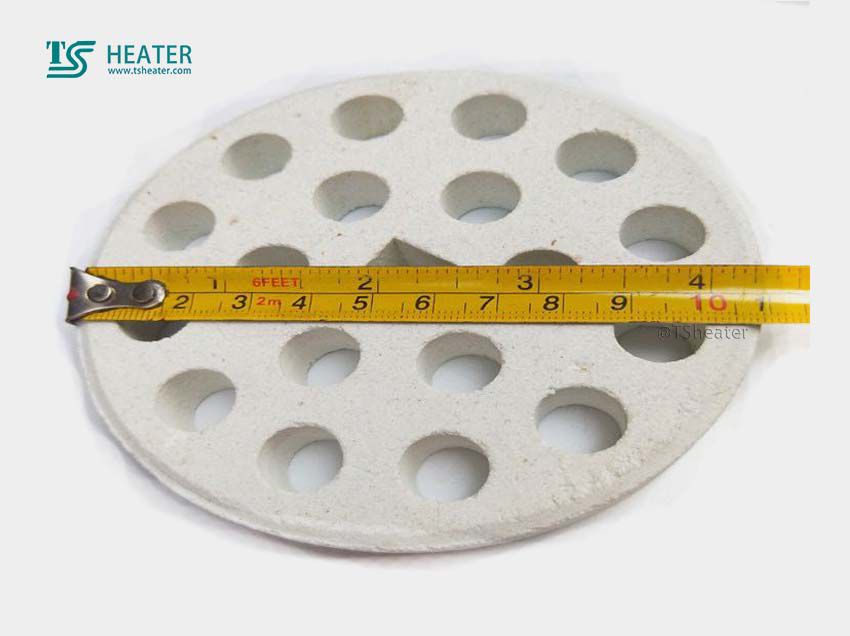

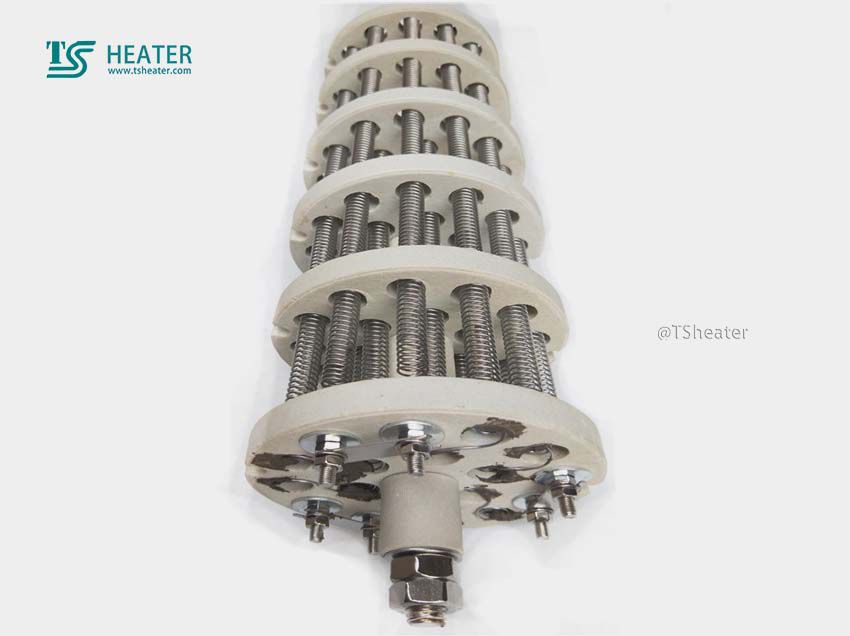

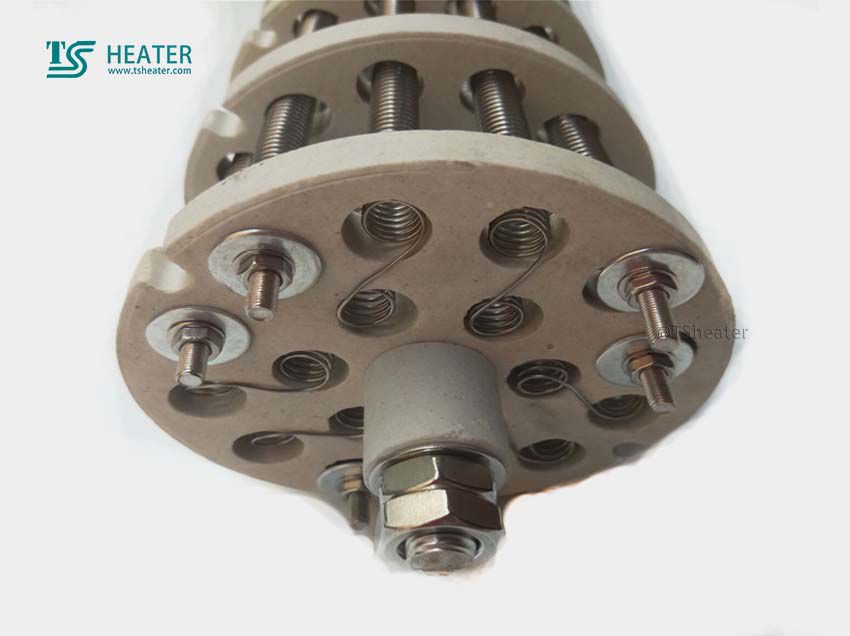

Display of the Ceramic Radiation Pipe Heater Element:
