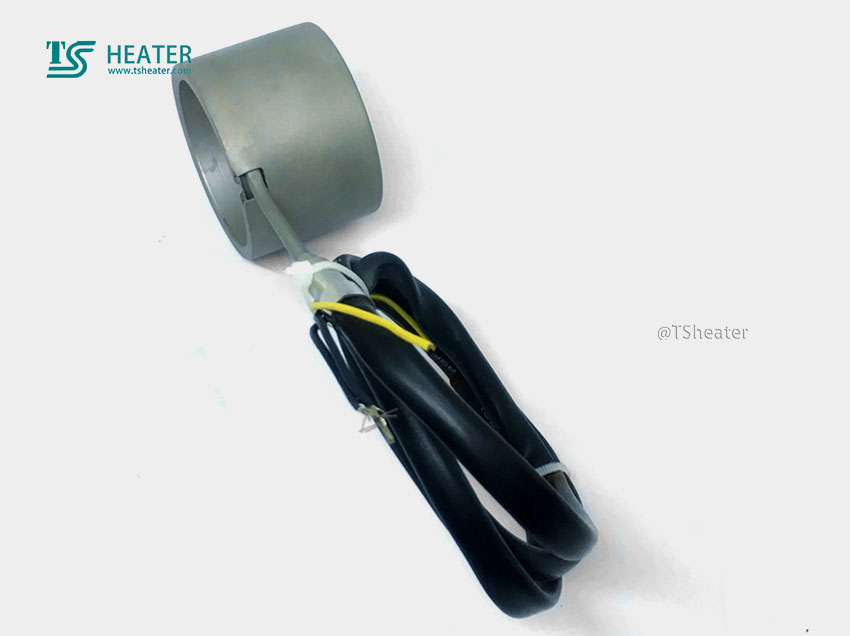

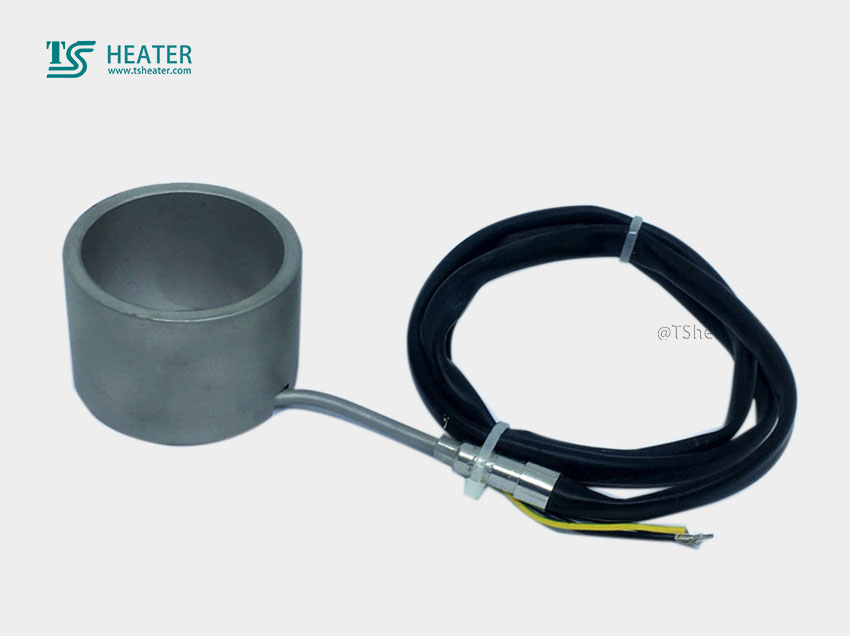

Dc Heater Coil

specifications：Dc Heater Coil

The thermocouple coil heater made of ni-cr resistance wire is placed in the ni-cr steel tube filled with MGO powder and compacted to conduct heat transfer faster and more effectively

Parameters:Dc Heater Coil

Size :3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4

Voltage: 230 v

Power: 650 w

Resistance wire :NICr 80-20

Maximum jacket temperature :700 ℃

Die electrical strength :800V ac

Insulation :> 5 mw

Thermocouple :J (standard) or K

Length tolerance (straight):5%

Wattage tolerance :10%(5% available upon request)

Unheated length :35mm standard length

Dimensional tolerance:

Coil diameter :0.1 ~ 0.2mm

dc heater coil Applications:

Hot runner nozzles and spruce shrubs

Packaging machinery

Injection molding machine nozzle

Blowing machine

Features:Dc Heater Coil

Standard dimensions available with various sections

Various watt densities are available

Select the robust design of terminal outlet

Available with built-in thermocouple

Design uniform thermal profiles

Precision mounted on hot runner nozzle and manifold

Highly stainless

Greater contact area, maximum heat transfer

Advanced thermal engineering

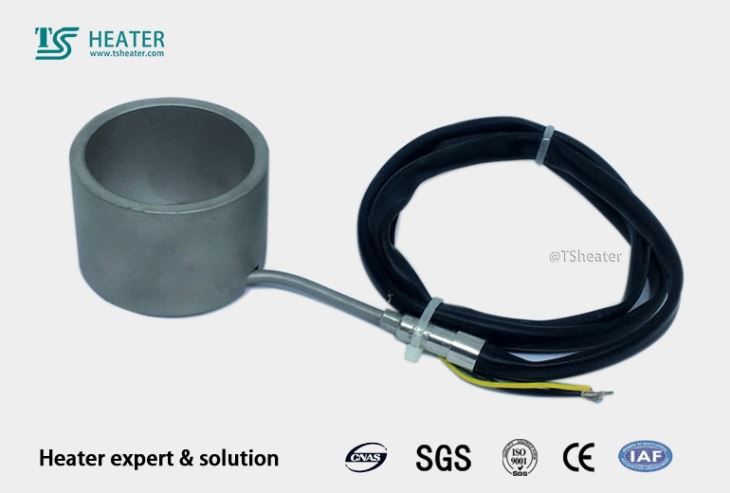

dc heater coil
