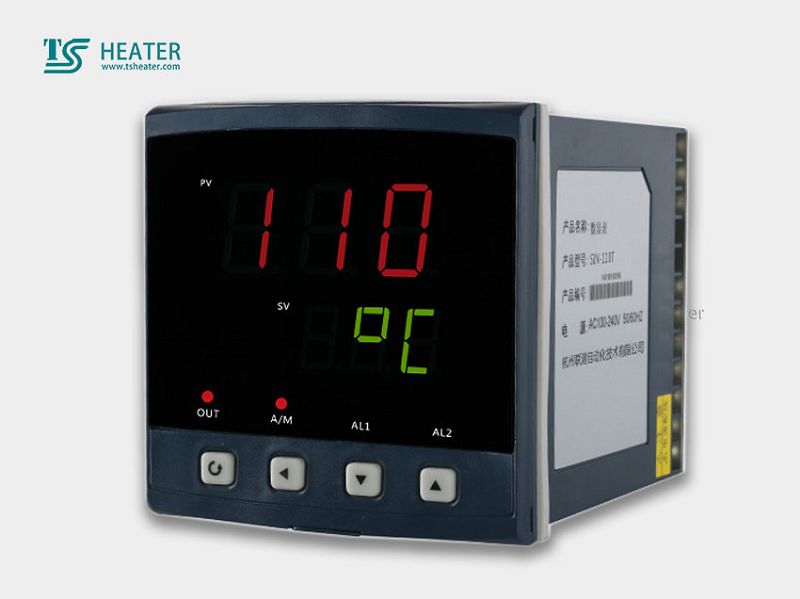

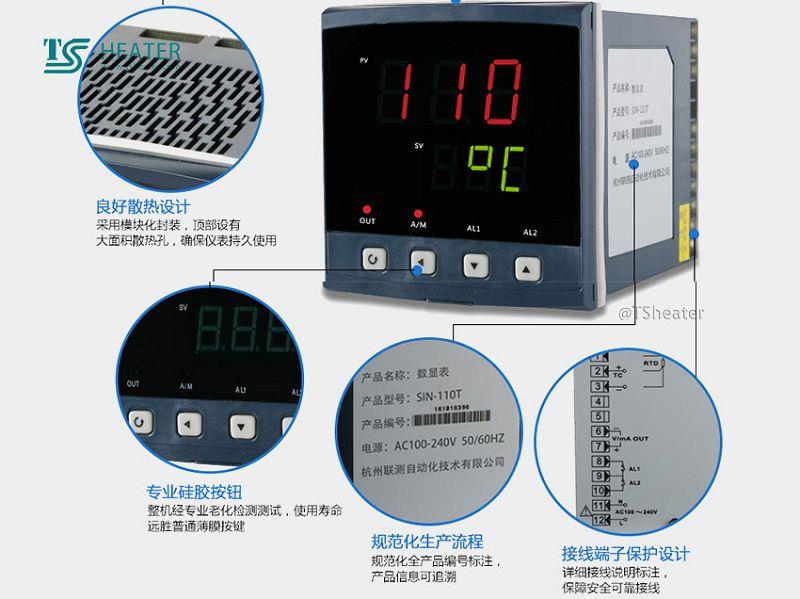

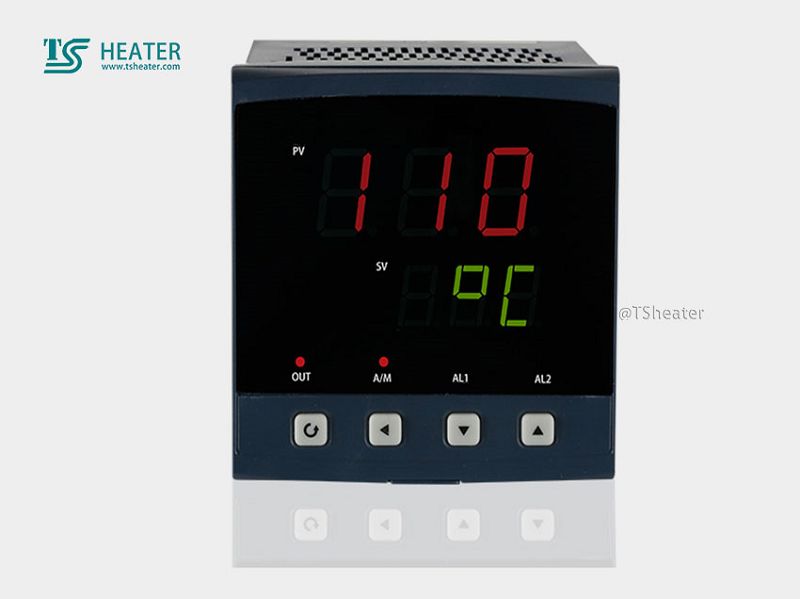

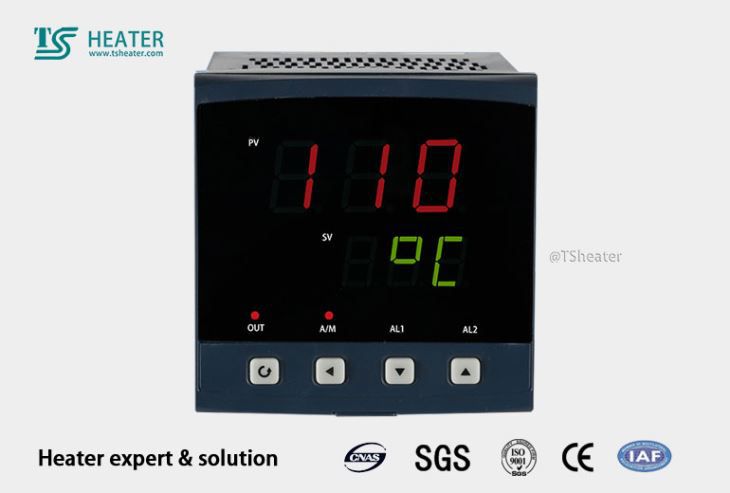

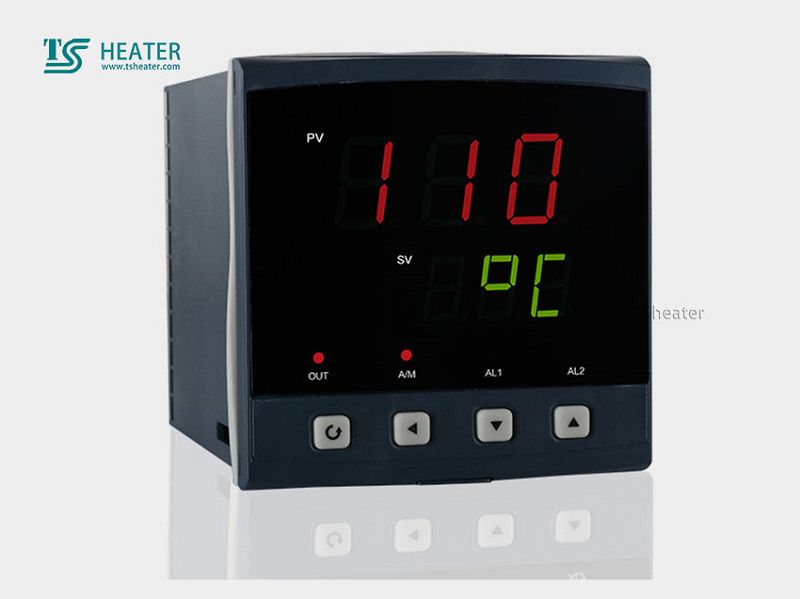

Digital Celsius Thermostat

Digital Celsius Thermostat

Intelligent digital pressure instrument, all position plate operation, and PT series pressure sensors, suitable for chemical fiber, plastic machinery, hydraulic pressure, die casting, central air conditioning system, building automation, constant pressure water supply, air compressor and other chemical equipment pressure control.

Voltage module output

Digital Celsius Thermostat

The linear output voltage (0-5v, 0-10v) is based on the pressure value.The voltage modules are 0-5v and 0-10v.Principle is in current module is set to 0 to 20 mA output, at the output end resistance of Ω Ω 250 or 500.When the actual voltage output deviates from the set value, the voltage module can be adjusted
The potentiometer is adjusted to make it consistent.

0 to 5 v output:
Digital Celsius Thermostat

0-5v voltage module should be selected, and al-1 should be set as "I" type.
DL set to 0mA, DH set to 20.00mA.In the output
End with a 250 Ω resistance to current signal converting 0 to 20 ma, 0 to 5 v.

0 to 10 v output:
Digital Celsius Thermostat

0-10v voltage module should be selected, al-1 should be set as "I" type, DL should be set as 0mA, DH should be set as 20.00ma.That is, on the output side plus a 500 Ω resistance to current signal converting 0 to 20 ma, 0 to 10 v.
Alarm 2 (al-2) : four output modules can be selected
1. Relay module output :(same as al-1)
2. Output of current module :(same as al-1)
3. Voltage module output :(same as al-1)
