Electric Resistance Heating Element

Quick details

Electric Resistance Heating Element

Type: immersion heater, submersible heater element

Dimension (L * W * H): 8 mm * 245 mm (diameter * length)

Weight :0.4 kg

Quality assurance :1 year

Provide after-sales service: video technical support, online support

Applicable industries: manufacturer, food and beverage factory, household, retail, printing, energy mining, food and beverage factory

Origin: guagnzhou, China

Brand name: tsheater

Voltage: 220 v

Certification: CE

Product name: tubular heating element

Power tolerance :+ 5% - -10%

Material: SUS304

Electric Resistance Heating Element

Add hot wire: nickel chrome wire

Service life: 2-5 years

Category: elements of water heater

Application: boiler heating element

Packaging and delivery

Unit of sale: single item single package size: 26x5x5cm single gross weight: 0.4kg package type: carton

The product description

Electric Resistance Heating Element

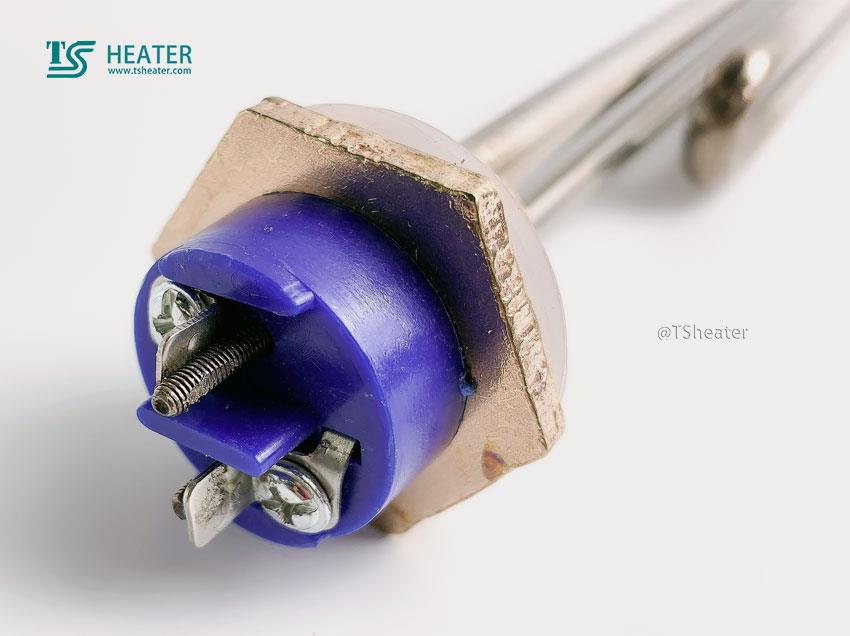

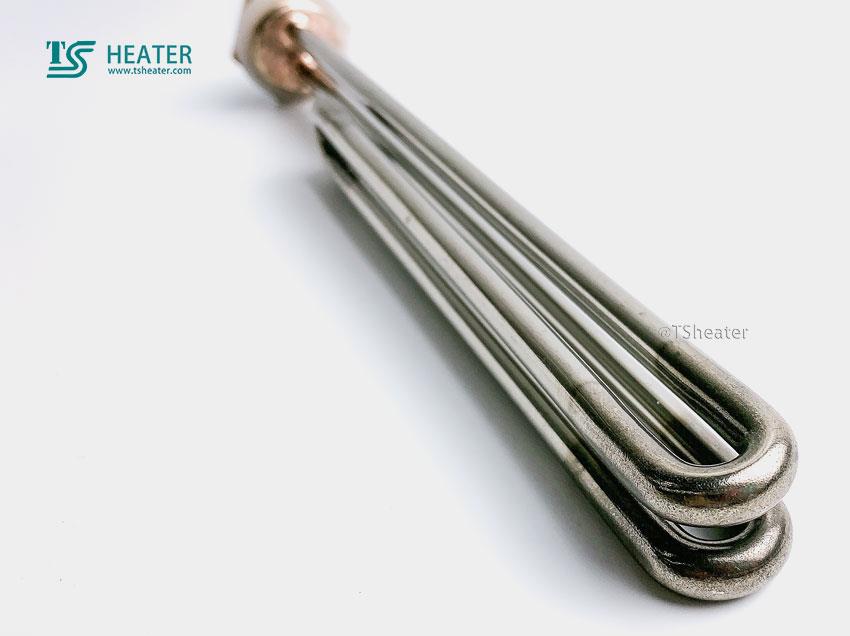

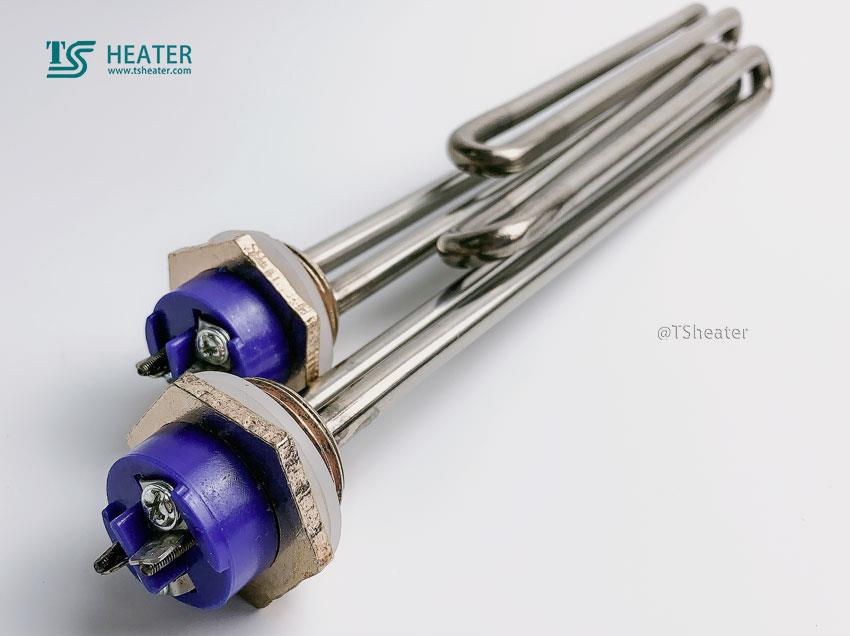

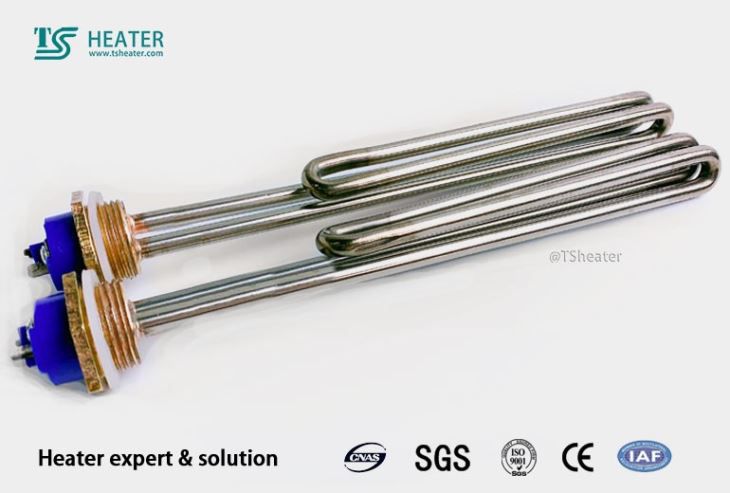

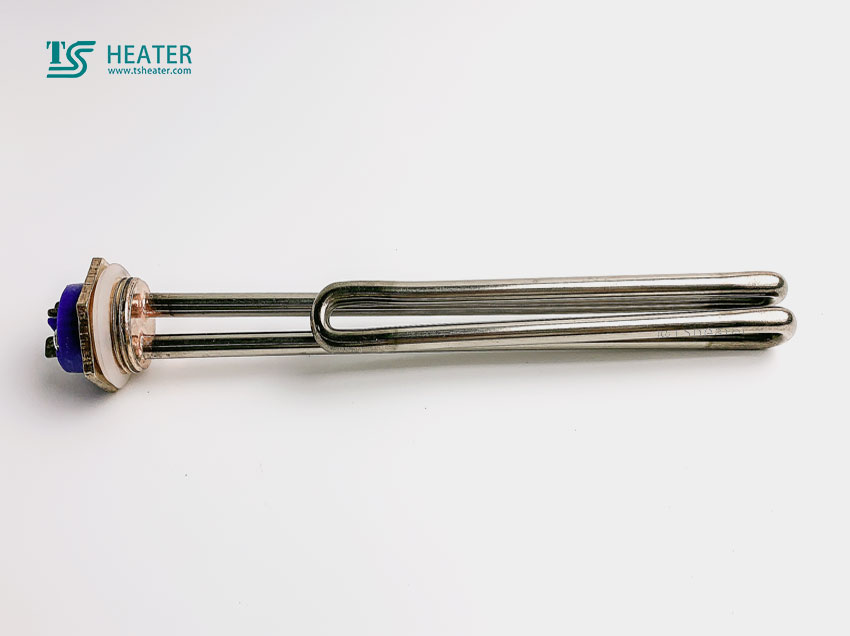

Electric Resistance Heating Elements are hexagonal pipe threads made of brazed or welded elements.These devices are used for direct immersion in liquids and gases.The water heater shall be installed through a threaded hole in the tank or container.Water heater components are available in a variety of pipe thread sizes and materials.Water heater components are made of a variety of materials, suitable for a variety of fluid heating applications.The terminal housing can be used in indoor, outdoor and hazardous environments.There are many options.As we are a bespoke company, we can provide a large selection of sizes and configurations.Please contact us to assist with your application.Heating element specifications for 220V submersible water heater.

Electric Resistance Heating Element

Material (SUS304,316,321, inculy800) SUS304

Voltage is 220 v

Power 3000 w

The tube is 8 mm in diameter

The length of the tube is 245 mm

Thread 1 "BSP size

All specifications can be customized according to your requirements!

Electric Resistance Heating Element
