Industrial Water Heating Element

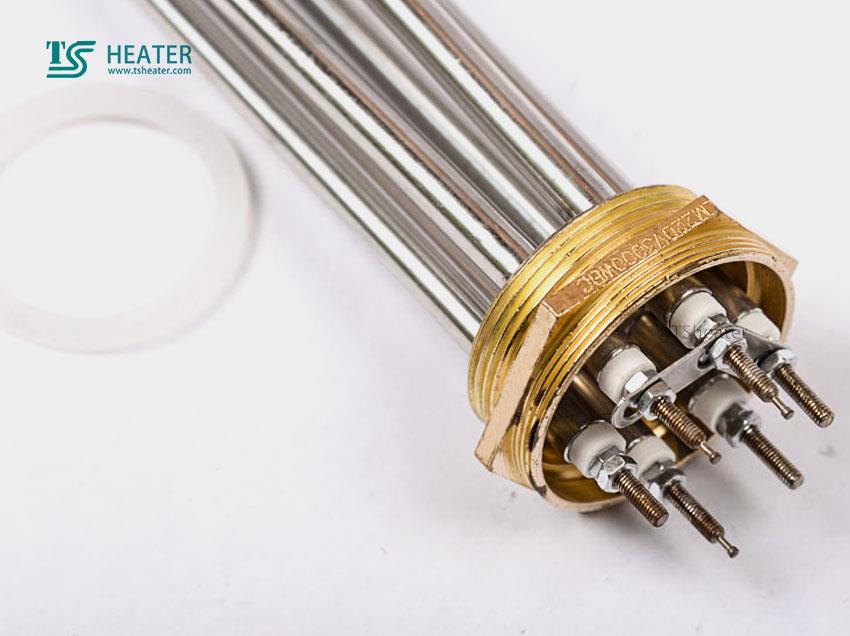

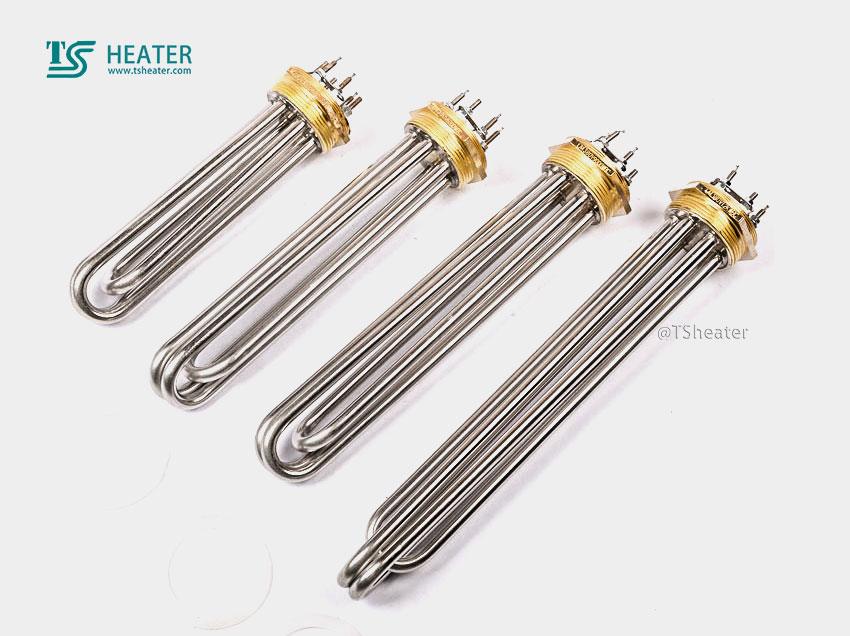

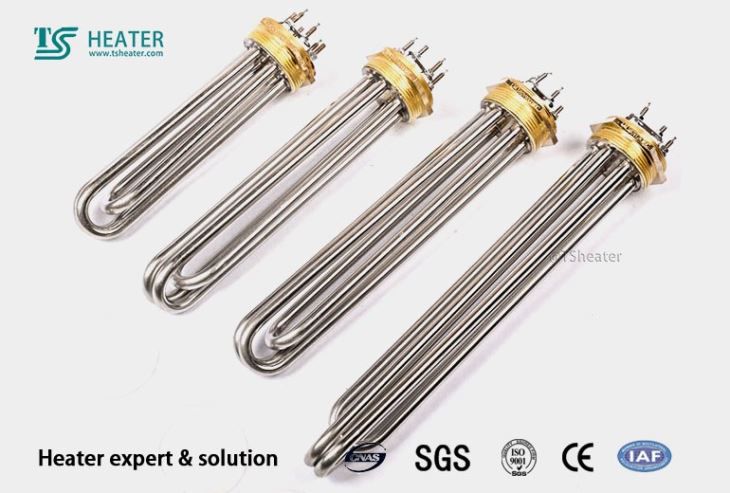

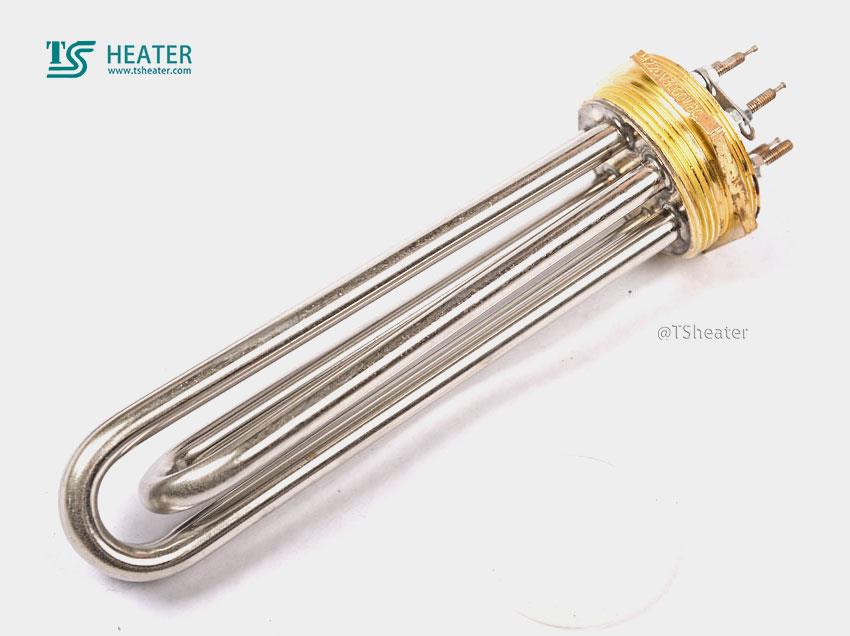

Product name :3000W 230/400v heating element tubular heater with brass flange

Brief introduction:

Industrial Water Heating Element

Tubular heating elements usually consist of a coil of resistance heating alloy wire, usually NiCr ends connected to a terminal pin and from metal electrical insulation tubes, stainless steel alloys such as inco nickel-chromium stainless steel or copper, through ceramic insulation material, electrofused magnesium oxide powder.

Industrial Water Heating Element

The ends of the tubes are usually filled with beads of insulating material, such as ceramic or silicone rubber, or a combination of both, to prevent moisture from penetrating the components.

These can be straight bars (in the toaster oven) or bent into a shape to cross areas to be heated (such as the electric stove, oven, and coffee machine).

Industrial Water Heating Element

Technical specifications:

1 sheath material sus201/304/316/316l/incoloy600/800/840/titan/etc.

2 sheath Φ 4 mm to 30 mm in diameter

Develop custom heating element lengths

The voltage is 12v-480v

5 power 10w-50kw

6 customization of terminal solutions

Flanged brass screws/threads/steel plate/stainless steel fasteners/etc.

Performance indexes:

Industrial Water Heating Element

Not at all.

Project technical index

1 m insulation Ω 5000 or higher

2. Withstand voltage ≥1800V/5S

3 leakage current ≤ 0.25ma

4 resistivity (Ω) + 5% - 8%

5. Power tolerance ±5%

We can meet the customer's further technical requirements.

Product warranty :2 years

Industrial Water Heating Element

Functions and features of tubular heating elements:

1.Small size, high power

2.High heating temperature

3.Wide application, strong adaptability

4.Long life, high safety

5.It can realize automatic parameter control and save energy

Application of tubular heating elements:

Industrial Water Heating Element

1) air application:

1.Sealed air heating

2.Circulating air heating

3.Special gas heating

2) apply to liquid

1.Water is heated

2.Oil heating

3.Heat acid or alkali solution
