hot runner mould Stainless steel hot runner heater for injection mould.The hot runner adopts high-power spring electric heating ring electric heater.Direct supply of coil heater for hot runner，Hot Runner Mould
Description：Hot Runner Mould

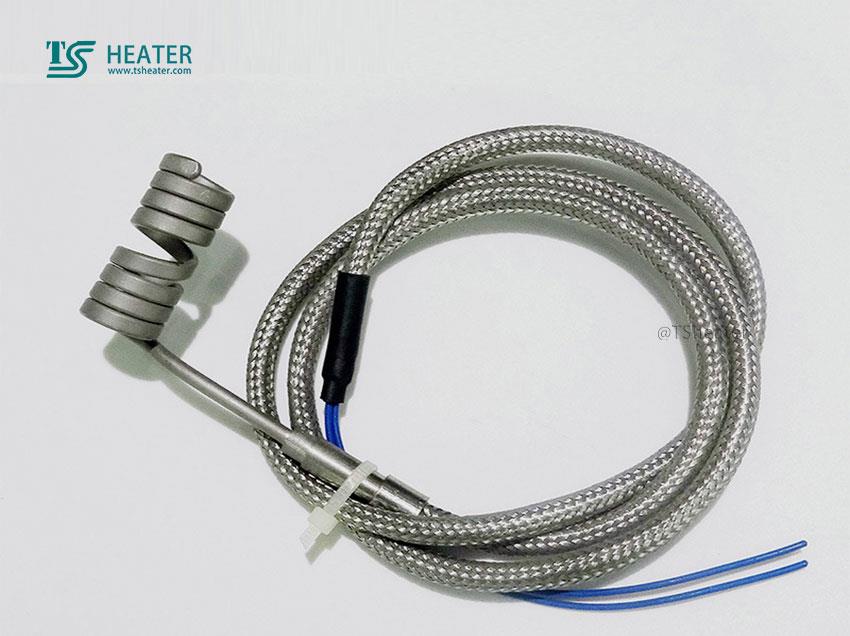

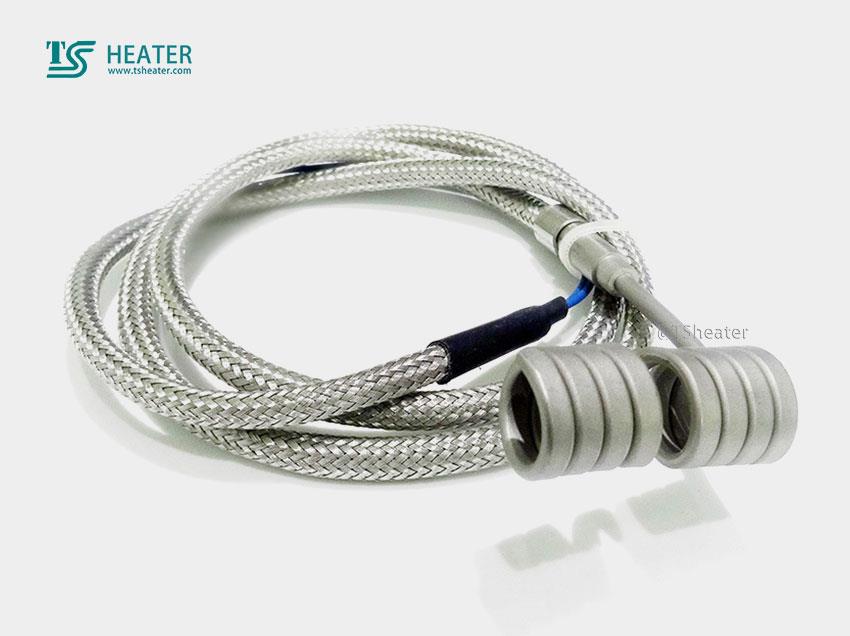

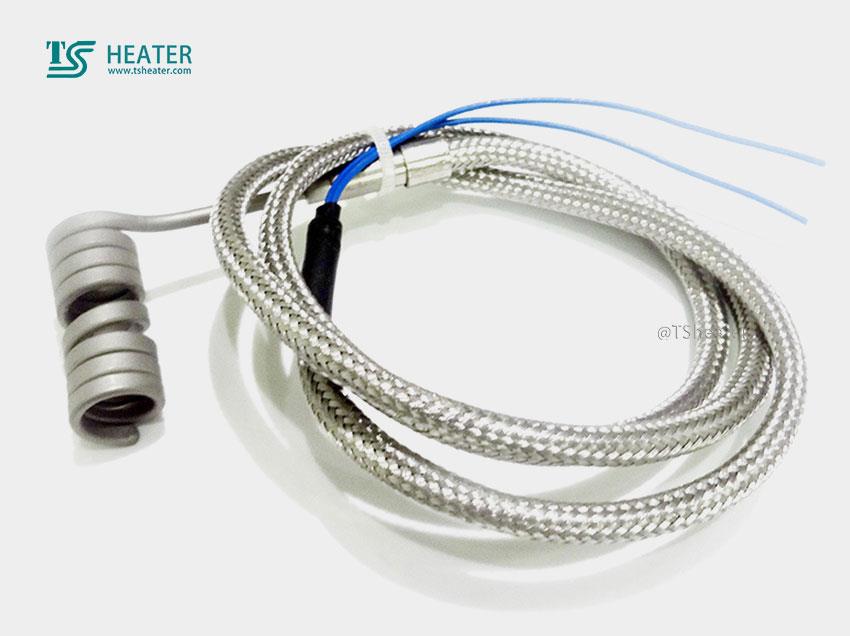

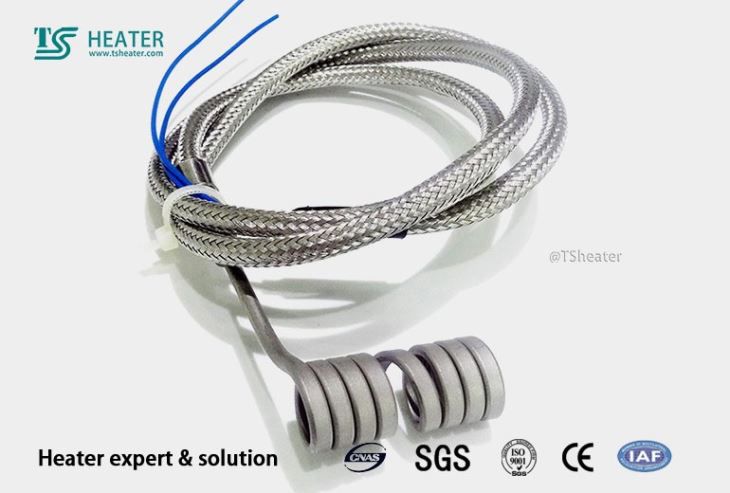

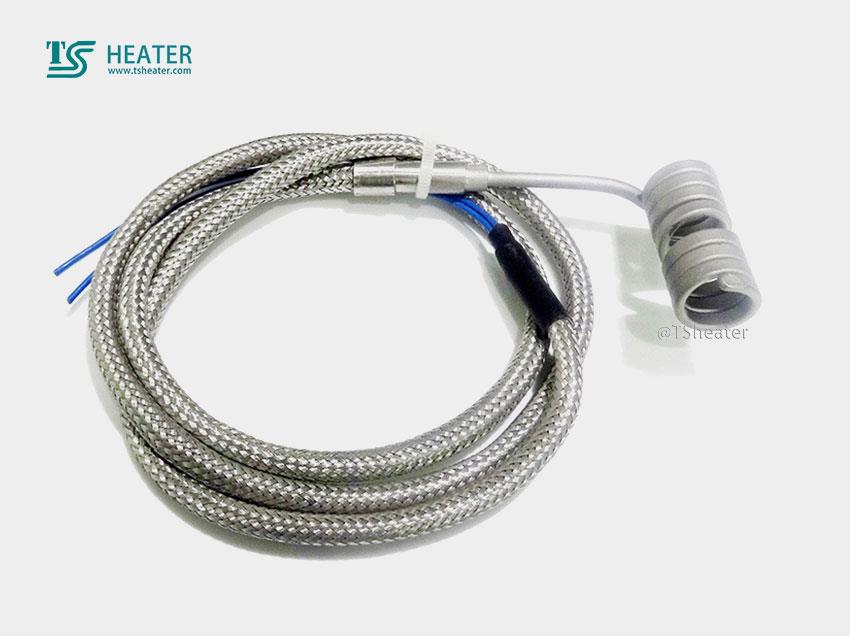

Hot runner coil heater profile:
The hot runner coil heater is made of ni-cr resistance wire and placed in a steel tube filled with MgO powder. After compaction, the heat transfer is faster and more effective.
The hot runner heater is annealed to obtain ductility that can be bent into any shape.
Injection molding coil heaters with thermocouples are also available.
Hot runner coil heater data sheet：Hot Runner Mould
Jacket of coil heater :SUS304
Insulation of coil heater: compacted magnesium oxide
Conductor: NiCr8020
Thermocouple :K, J (optional)
Lead wire: stainless steel braided wire, PTFE wire, fiberglass wire (on demand)
Voltage :24V ~ 415V
High temperature resistance :Maxi 800 degrees
Packaging & Shipping

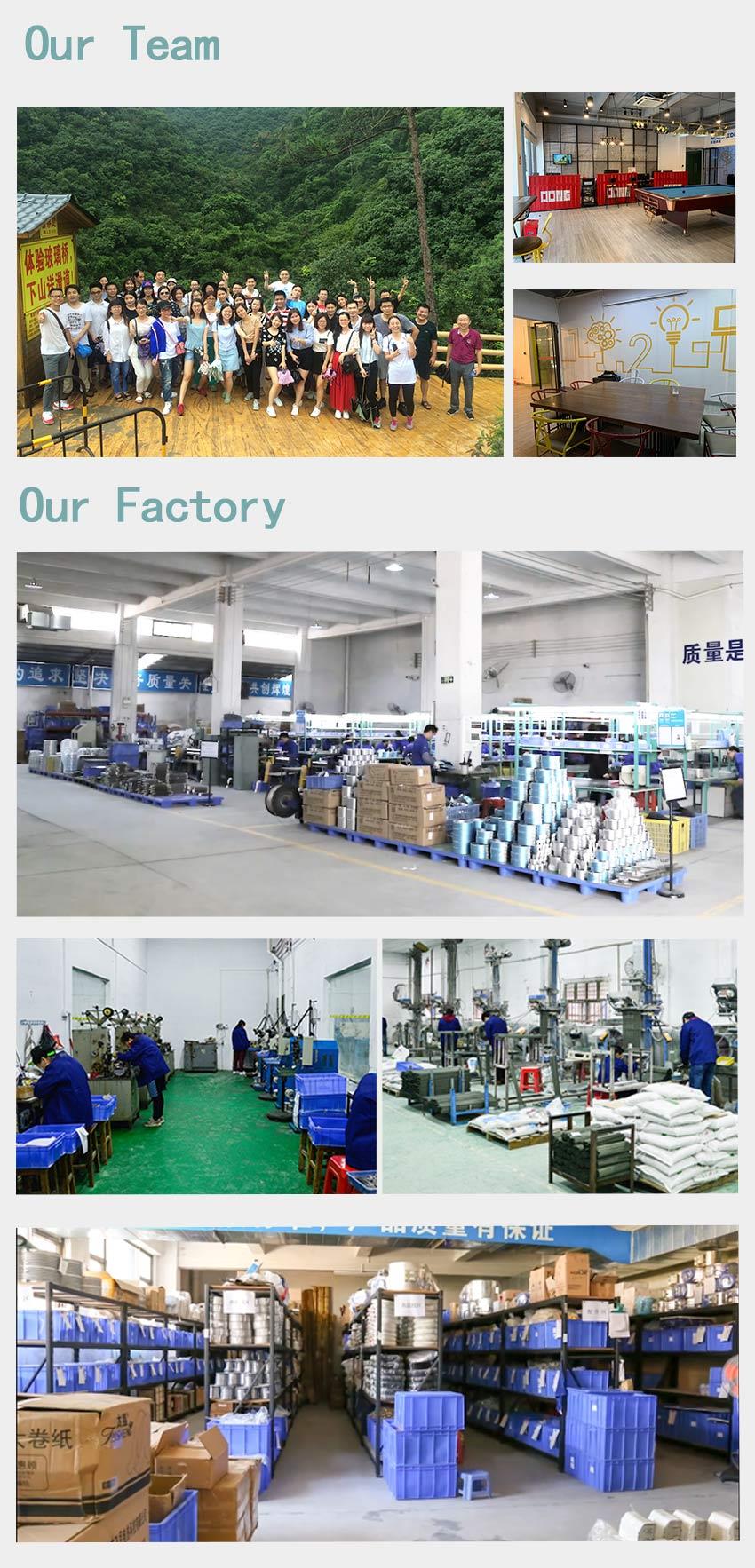

-----FACTORY SHOW-----
