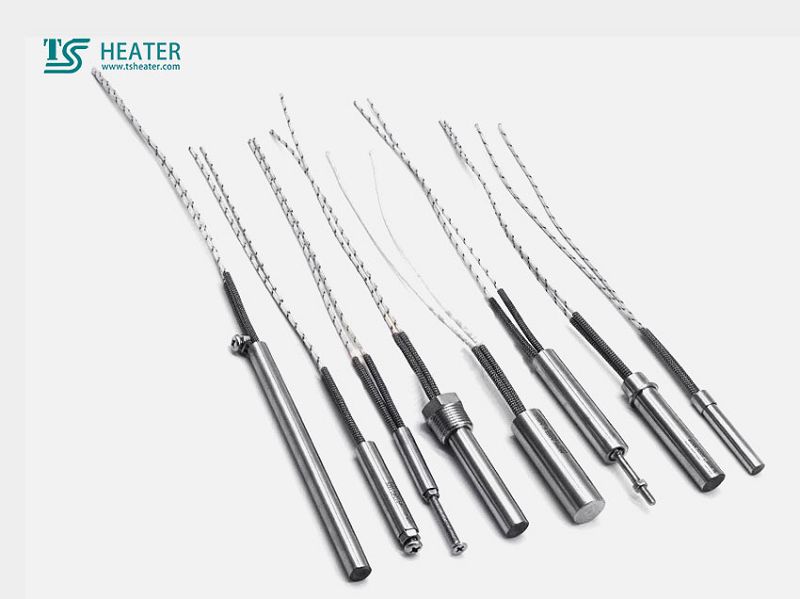

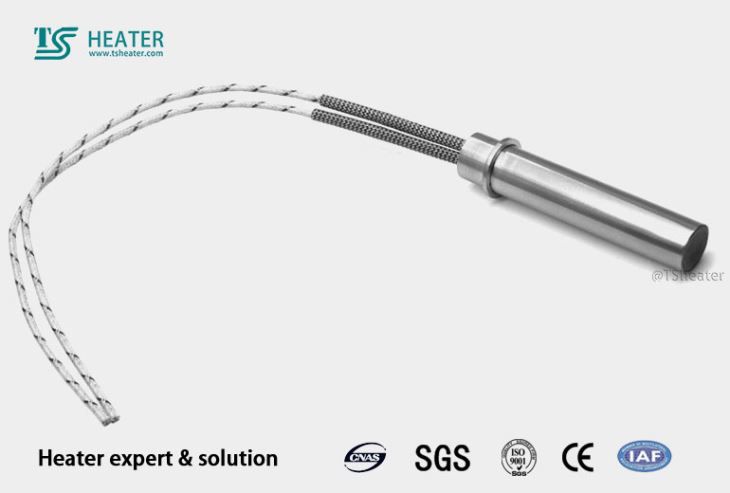

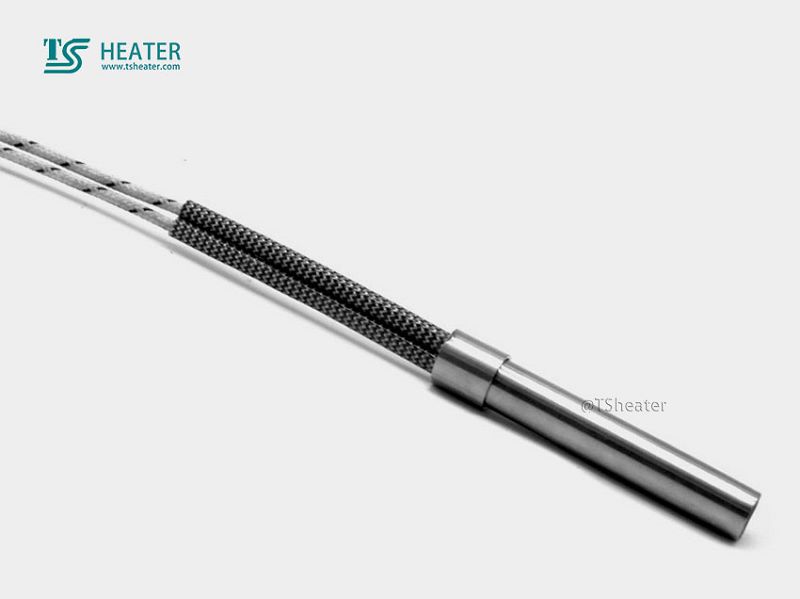

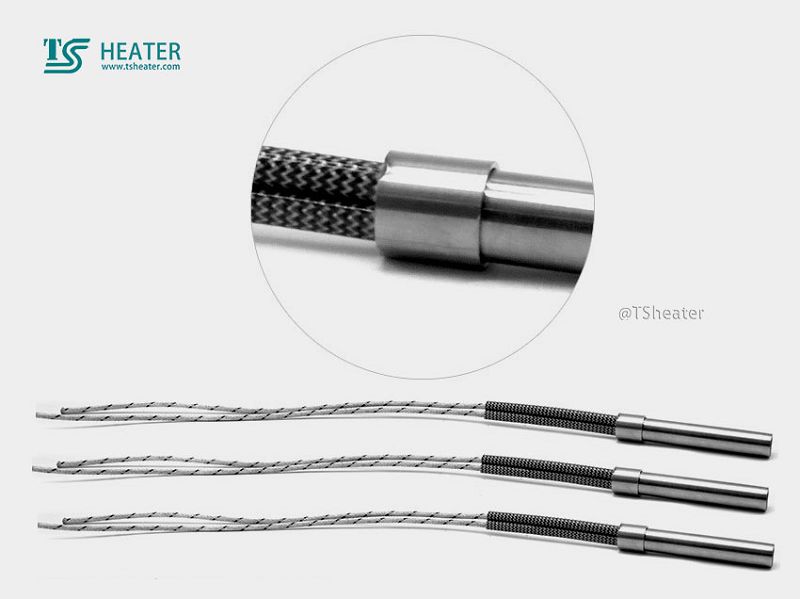

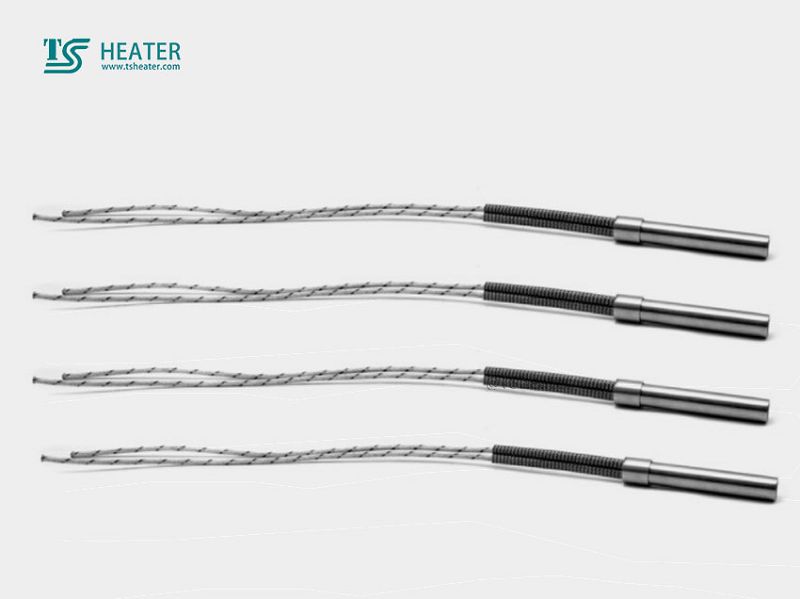

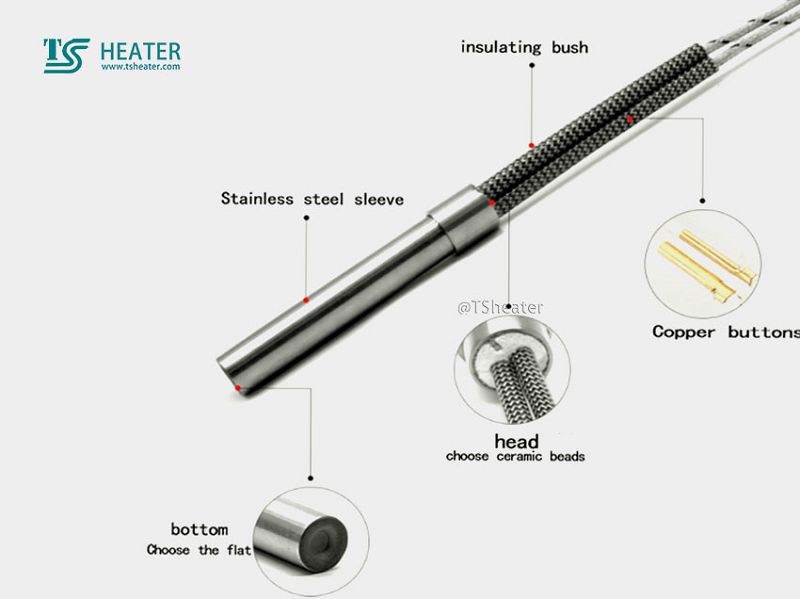

Low Voltage Cartridge Heater,The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the heating wire at both ends.Low Voltage Cartridge Heater
Low Voltage Cartridge Heater,The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the heating wire at both ends. The whole is assembly is highly compacted by a swaging operation and thus ensuring excellent heat transfer to the external sheath. This allows for operating temperatures to 1600ºF and high watt densities.Low Voltage Cartridge Heater,Low Voltage Cartridge Heater,Low Voltage Cartridge Heater
Cartridge heater application:Low Voltage Cartridge Heater:Low Voltage Cartridge Heater
Water heating | We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater. |
Air heating | Elements of approximately 1 watt per square centimetre are suitable for convection air heating, eg. Anti-condensation heaters. |
Die heating | Manifolds, hot runners and torpedoes. |
Oil heating | We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater. |

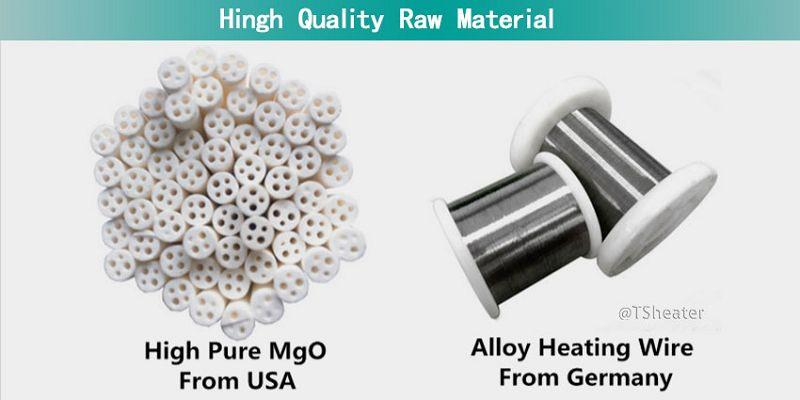

We use the best quality raw material:
Pcaking and Delivery
The exhibition is a good form of promoting industry communication. Through the exhibition, we have more contact and understanding with our customers and achieve better cooperation.Welcome to our booth!

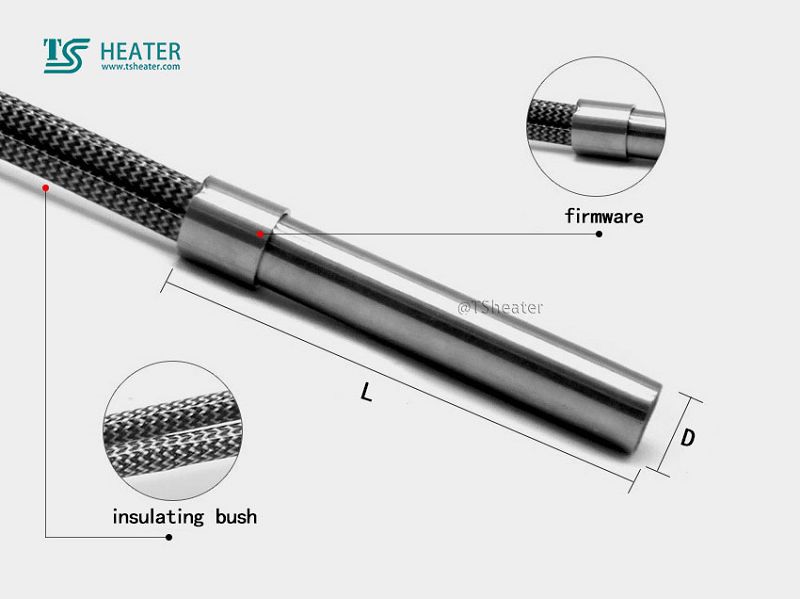

When you inquiry, pls sspecify the following details
A. Diameter - see specifications for assistance.
B. Overall Sheath Length - measured in inches or millimeters from end toend of heater sheath.
C. Lead Length - specify in mm or Inches.
D. Termination Type
E. Voltage - specify.
F. Wattage - specify.
G. Special Modifications - specify as required
