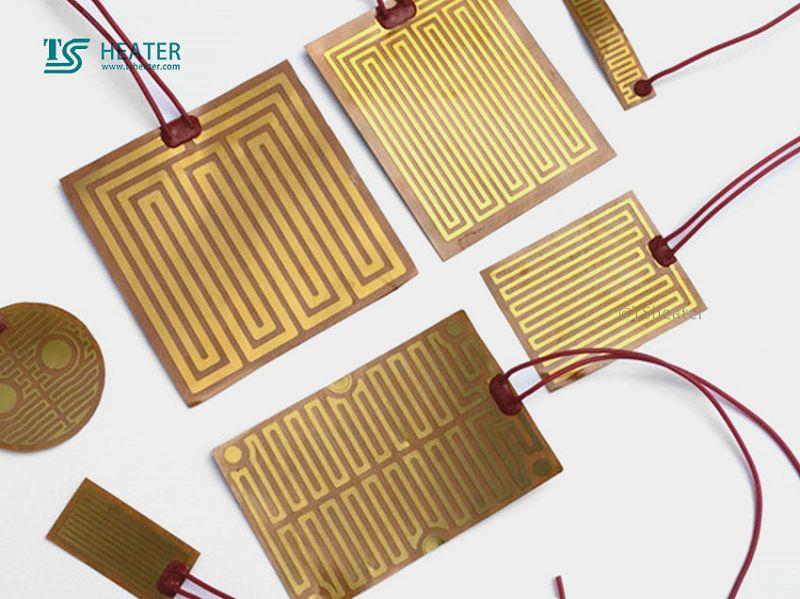

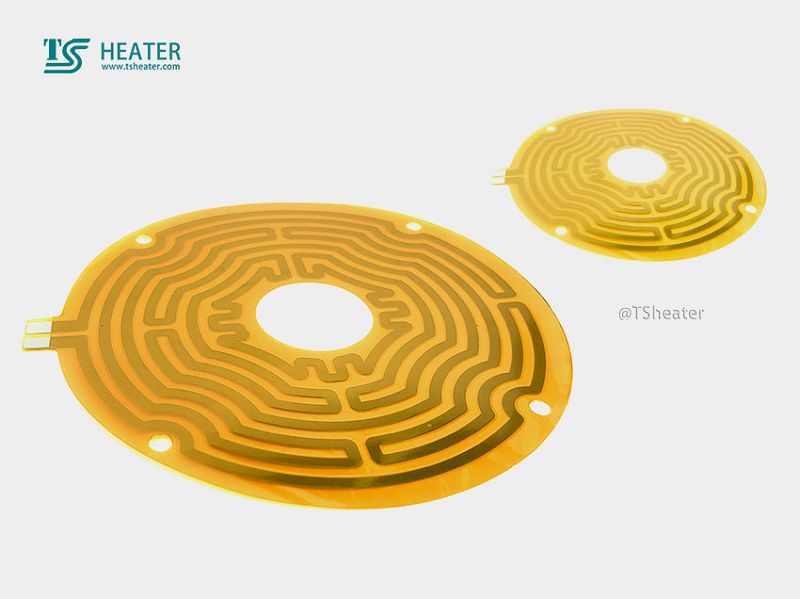

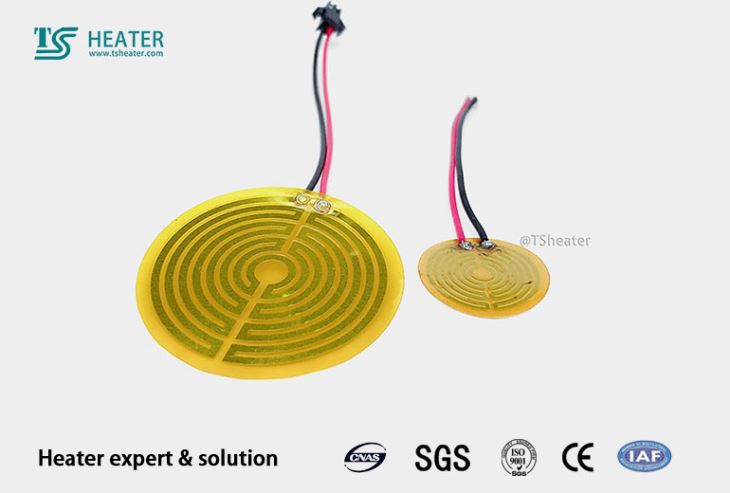

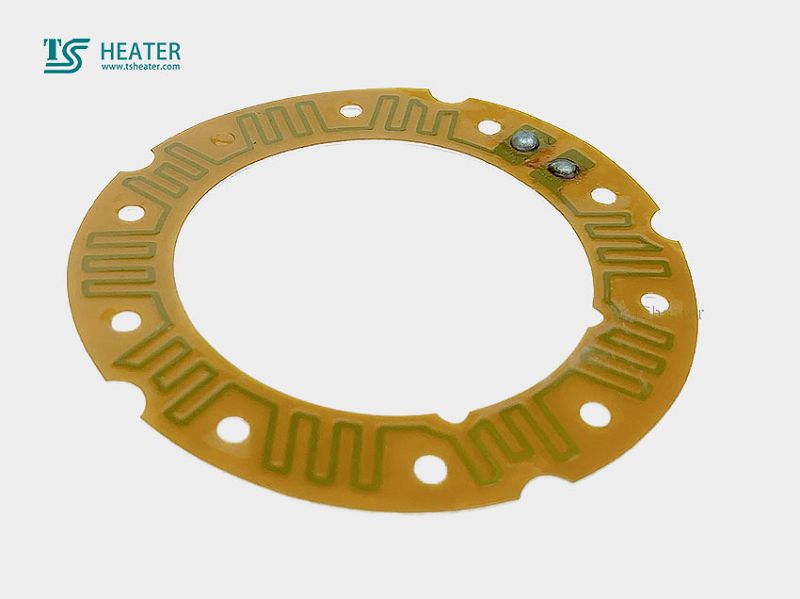

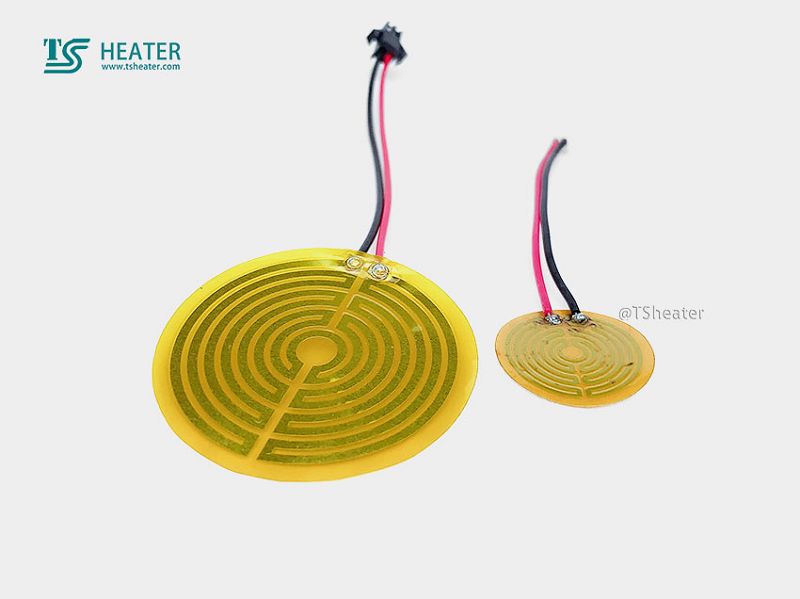

Polyimide Metal Foil 3D Film Heater Polyimide PI heating film is made of polyester amide film as external insulation material and metal foil as internal conductive heating material, which is heated under high temperature and high pressure for a long time.
It makes full use of PI film insulation properties, excellent mechanical properties, electrical properties, chemical stability and high radiation resistance, high temperature and low temperature resistance properties, is a very popular heating film.
Technical parameters: Polyimide Metal Foil 3D Film Heater
Insulation materials
Polyimide film

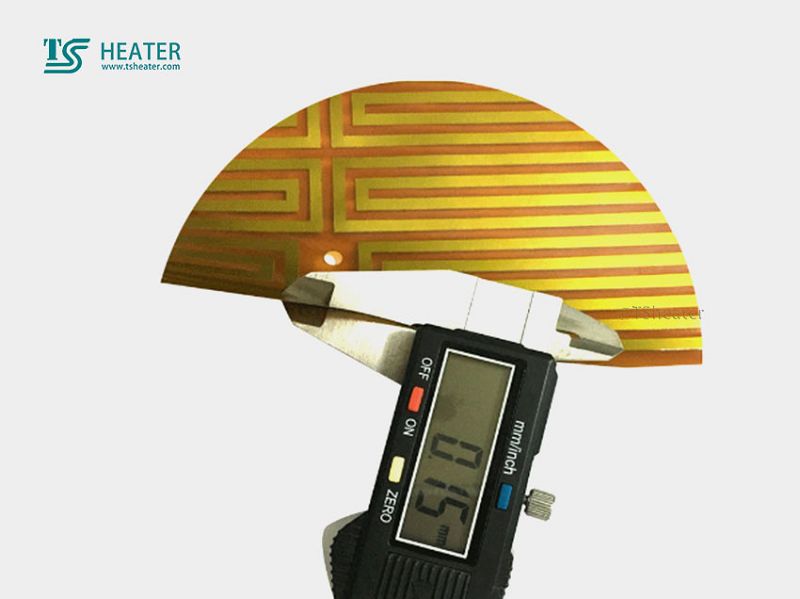

Electrothermal film thickness
0.08 mm to 0.2 mm
The use of temperature
- 200 ℃ ~ 200 ℃
Maximum power density
7.8 W/cm2
PI,
Characteristics of polyimide heating film heating tablet: Polyimide Metal Foil 3D Film Heater
1. Light and soft, with good bending, the shape can be customized with your equipment
2. Surface heating, with better uniform heating performance and faster heating rate.
3. Excellent chemical corrosion resistance
4. Long service life.The service life is 10 times of the traditional heating wire heating element.
5. Accurate power control within ±5%.
6, Component heat conversion rate up to 98, more than 30% energy saving than conventional heating element.
Applications: Polyimide Metal Foil 3D Film Heater
Small appliances: hair curlers, straighteners, massagers, beauty machines, breast augmentation machines and so on
Thermal products: hand warmer, electric clothing, electric shoes and so on
Medical equipment: blood pressure analyzer and so on
Outdoor products: camera, access control, display screen and so on
