The composition of the electric heating tube?

Maybe many customers who come to our company website to buy electric heating tube do not know the structure of electric heating tube very well, so many customers will ask some basic questions, such as "Is the surface of the heating tube lives?" "How is the electric heating tube insulated? "Wait, wait for the question, in fact, after understanding the structure of the electric heating tube, these basic problems are not a problem, today I will introduce the composition of the electric heating tube.

We need to know what kinds of water tank heating tubes are there?

If you need low power, we can choose U (different) heating tubes. Special-shaped heating tubes include double U-shaped heating tubes, 3U-shaped heating tubes, wave-shaped heating tubes, and other shapes of heating tubes. One thing they have in common is a double Head heating tube, so when we install this kind of electric heating tube, we need to make two installation holes 1mm larger than the thread on the fastener on the water tank, and then the thread of the heating tube directly passes through the installation hole, and the inside of the water tank needs to be equipped with a gasket. , The outside of the water tank is directly screwed with a nut.

  If you need a slightly larger power, we can consider a hexagonal threaded flange tube. At this time, we need to confirm the size of the thread with the customer, so that the customer can choose a suitable welding tube for tapping, and when we receive our heating tube, we can directly screw it.

If more power is required, we can consider flat flanged heating tubes. At this time, we need to confirm with the customer the size of the flange, the number of bolt holes, the diameter of the bolt hole, and the center distance of the bolt hole, so that the customer can choose the matching female flange and external pipe. Note: The outer diameter of the multiple U-shaped pipes on the flange should not be larger than the inner diameter of the welded pipe, otherwise it cannot be installed. The installation sequence of the flat flange heating pipe: the water tank is drilled and welded to the external pipe, the female flange is welded to the external pipe, and finally our heating pipe is connected to the female flange, and a gasket needs to be added between the two flanges.

  Through the photos, we can intuitively find that the heating tubes are all installed at the bottom of the side of the box so that the heating tube cannot be separated from the liquid heating tube.

If you want to know more about the composition of the electric heating tube, you can consult

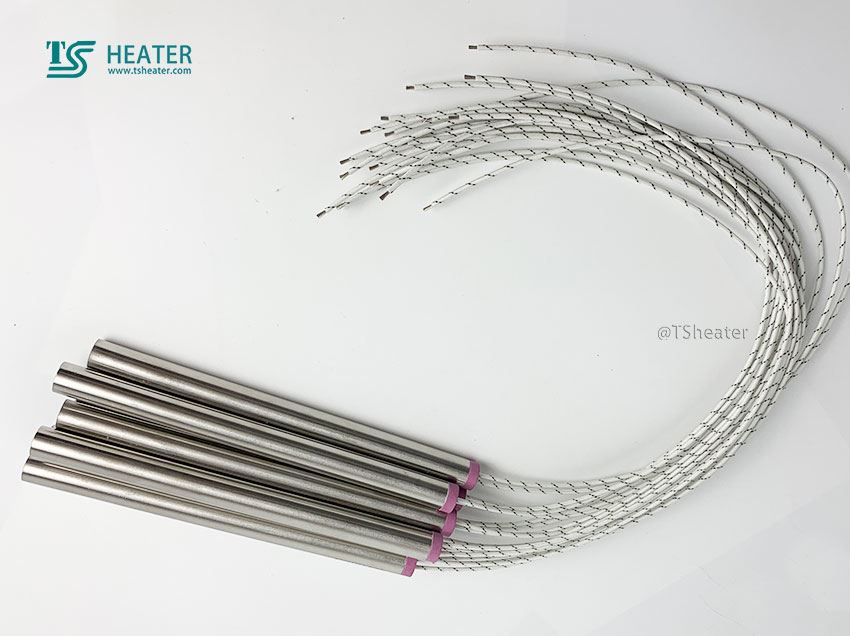

Our company's quality products: Heater Cartridge Resistance，120v Cartridge Heater，L Right Angle Cartridge Heaters，etc.
