Our factory specializes in the production, export, and supply of thermocouple extension Cable. The extension wires are provided under our premise, using high-quality raw materials and advanced technology, in line with preset industry standards.
Commodity name: K-type T-type J-type temperature measurement line. Teflon KTJThermocouple Extension CableKX-F-JIS2*0.3 compensation wire. K-type high-temperature KBB2*0.3
Whether to import: No
Brand: TS
Type: Compensation type
Thermoelectric characteristics: precision level
Nominal diameter of single wire: 1 (mm)
Nominal cross-section: 0.5, 1.0, 1.5, 2.5 (mm)
Insulation layer material: silicone rubber / Teflon / glass fiber / pvc
Sheath material: polyvinyl fluoride
Product certification: CE, ROHS
Positive color: red
Negative electrode color: white
Equipped with thermocouple: various types are available
Scope of application: thermocouple

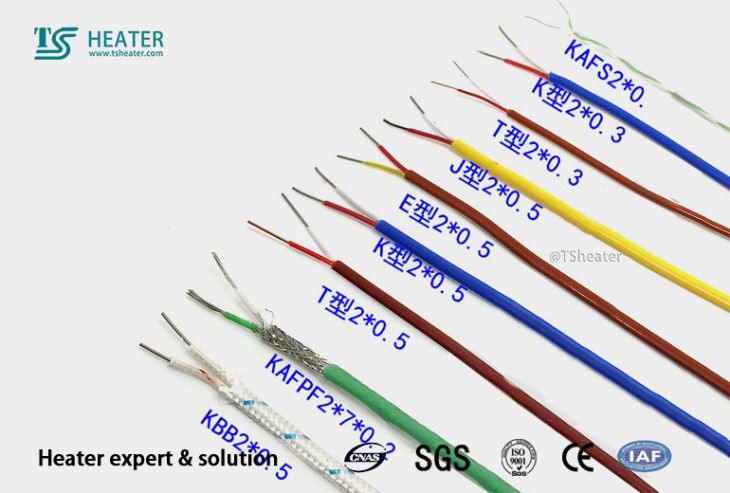

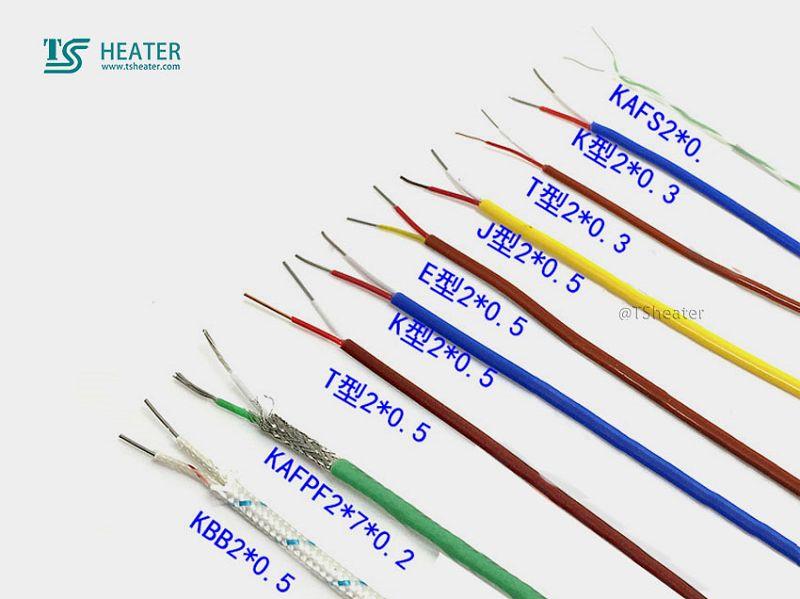

Picture remarks: KAFS2*0.25
K type 2*0.3
T type 2*0.3
J type 2*0.5
E type 2*0.5
K type 2*0.5
T type 2*0.5
KAFPF2*7*0.2
KBB2*0.5
Advantages of Thermocouple Extension Cable:
1: Complete specifications. Can be processed according to length
2: Use high-precision welding technology to weld. The surface of the solder joint is smooth, full, free of impurities and burrs, ensuring the accuracy of temperature measurement
3: Impact resistance, flexibility, and ease of use
4: Abrasion resistance, good quality
Order note:
1: The above specifications are the unit price of 1 meter! Processing is not included by default, please know!
2: K-type 2*0.2mm is the ultra-fine temperature measuring line, the price of 100 meters/roll. Outer diameter: 0.85mm*1.3mm
3: The temperature measuring line can provide welding spot processing service, the specific length can be customized according to needs, please contact the customer
4: Other types of matching connectors are welcome to buy
Parameters of Thermocouple Extension Cable:
K/T/J/E Type PTFE Thermocouple Extension Cable
1: Insulation material: PTFE
2: Core diameter:
a: 2*0.3mm/Outer diameter of belt: 1.6mm*1.1mm
b: 2*0.5mm/Outer diameter of belt: 2.3mm*1.5mm

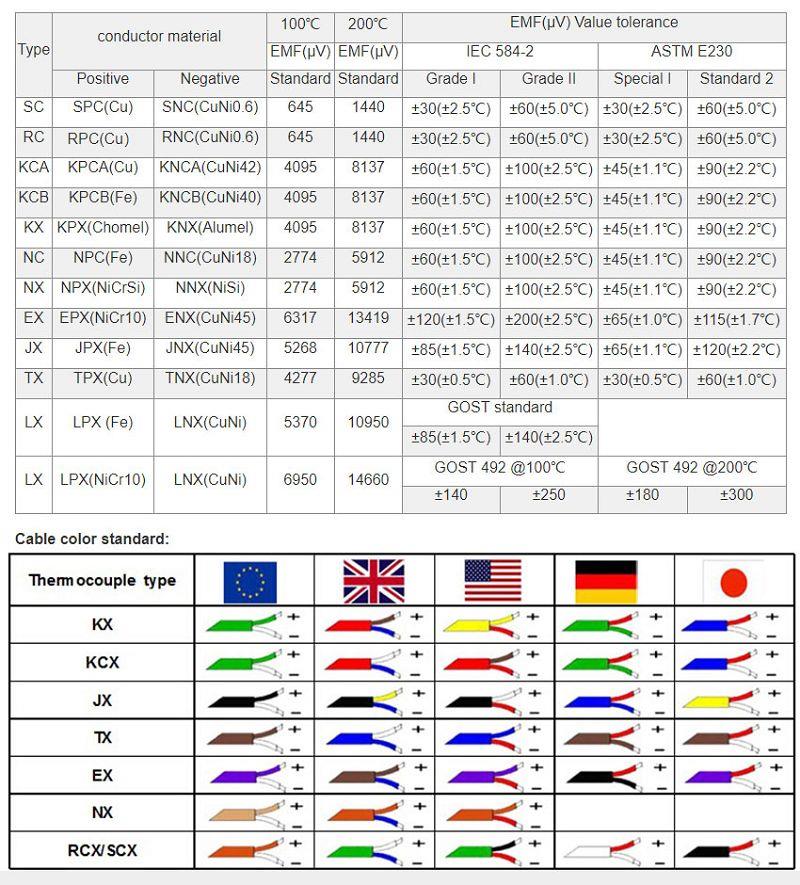

3: Material of Thermocouple Extension Cable:
K type nickel-chromium-nickel silicon
T type copper-copper nickel
J type iron-copper nickel
Type E Nickel Silicon-Nickel Silicon
4: Color mark: red positive pole, the white negative pole
5: PTFE temperature resistance: -200℃~+260℃
6: KBB glass fiber temperature resistance: -60℃+400℃
Delivery & Enquiries:
Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
