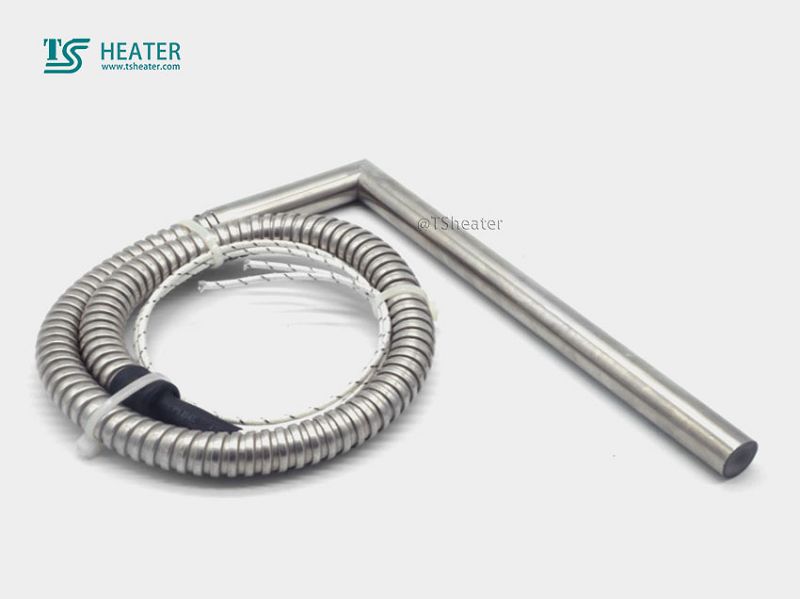

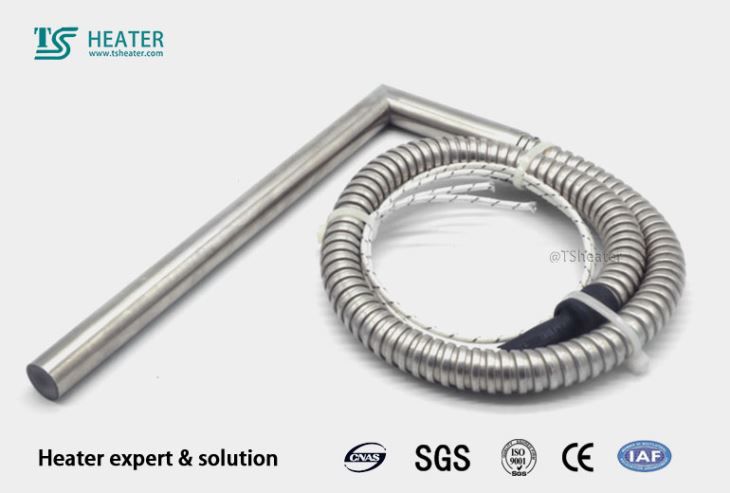

l right angle cartridge heater

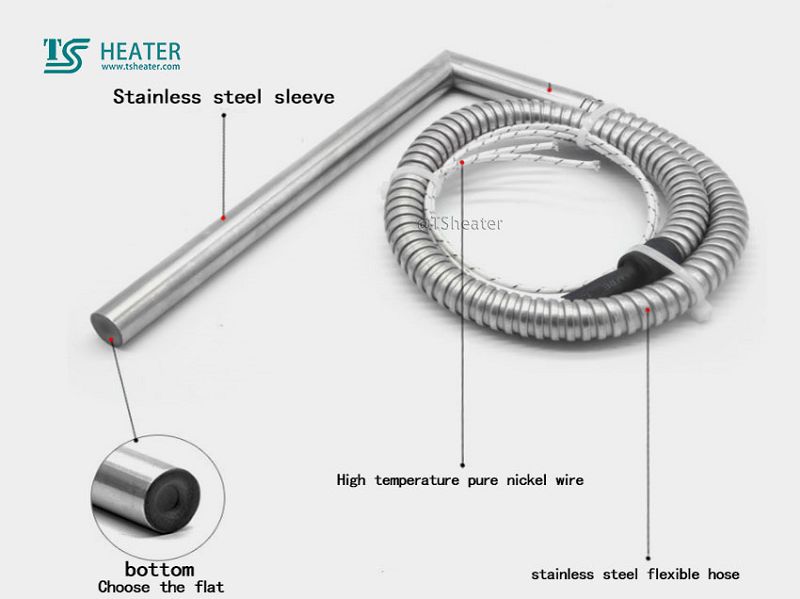

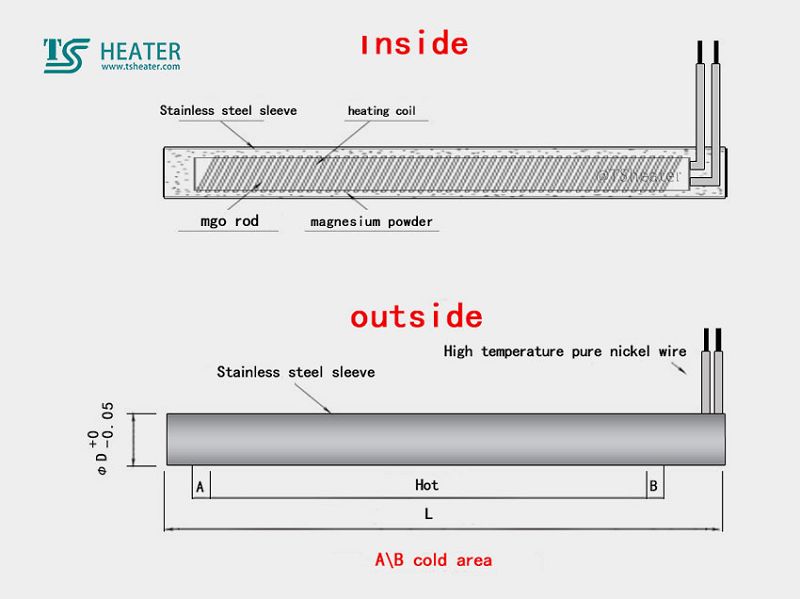

l right angle cartridge heater is made of metal tube as a foreigner to load high-resistance electrothermal alloy wire as heating material, filled and compacted around the heating wire, has good insulation performance, and uses high-purity magnesium oxide with high thermal conductivity.
As a filler, L right angle cartridge heater has the characteristics of large power, high thermal efficiency and fast heat dissipation.l right angle cartridge heater

l right angle cartridge heater

Features ：l right angle cartridge heater
Fast heating, working temperature ≤ 450 °C.
Uses: plastic molding mold, C02 decompression assembly, cigarette machine, quick sealing machine, pharmaceutical machinery, etc.
Voltage: 36-250V Power: 8-20W/cm2 (

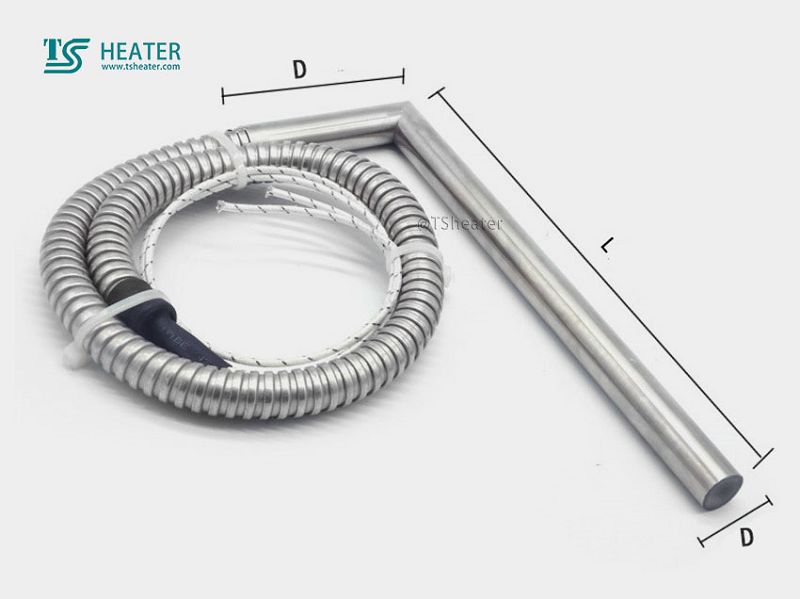

Recommended specifications: 6<20×40<100

In southern China, the electric heating pipes for such a outgoing mold are called single-head electric heating pipes, which are very similar. It is also called a cartridge heater in foreign countries. It is also called a shape.The insulation compressive strength component should be kept for 1 min under the specified test conditions and test voltage without flashover and breakdown.

l right angle cartridge heater

How to determine the diameter of L right angle cartridge heater？

The choice of the size of the mounting hole of the mold heating tube is closely related to the heat density of the electric heating tube. The temperature generated by different heat densities is different, and the degree of expansion of the sheath tube is also very different. Therefore, it is necessary to combine the relationship between the two to make a suitable one. Install the hole size and then determine the diameter of the Cartridge heater.

Our factory daily production capacity exceeds 5,000 PCS , guaranteeing the fastest delivery time to customers.
