Our factory has three production lines, and The Brass Nozzle Heater has a large stock of regular sizes. Our factory supports customization and fast delivery.
Introduction of the Brass Nozzle Heater:
The Brass Nozzle Heater is mainly made of brass tubes to seal the heating element. The heating element is made of nickel-chromium wire and a high-temperature-resistant mica board. The lead wire adopts high-temperature resistant fiber thread and the outlet method of stainless steel ribbon, making the lead wire wear-resistant and durable. The wiring of the Brass Nozzle Heater is connected to the heating element with a copper tube and is welded with silver fiber welding so that the Brass Nozzle Heater is completely sealed.
Advantages of the Brass Nozzle Heater:
1. The Brass Nozzle Heater adopts a high temperature-resistant mica board, which has the advanced characteristics of high-temperature resistance and good insulation performance.
2. The Brass Nozzle Heater adopts high-temperature resistant heating wire, which has the characteristics of fast heat dissipation, uniform heating, and high-temperature resistance.
3. The Brass Nozzle Heater adopts copper material, which has the characteristics of fast heat conduction, fast heat dissipation, high-temperature resistance, and the temperature can reach 600 ℃ without burning.
4. The Brass Nozzle Heater adopts a fully sealed production to prevent serious leakage of the injection molding machine nozzle.
5. The Brass Nozzle Heater has a long service life, reducing the number of replacements and reducing costs.
6. Technical parameters of the Brass Nozzle Heater: normal temperature, low relative humidity.
Precautions for installation and use of the Brass Nozzle Heater:
1.The contact surface where the heating element is installed should be flat and free of unevenness.
2. This heating element should be placed dry, avoid immersion in water to affect its insulation performance.
3. When installing, check whether the installation position is consistent with the specifications of the heating element and whether the use voltage is consistent.
4. After installation, check whether the inner six-leg bolts, terminal block bolts, and terminal bolts are tightly locked to avoid thermal expansion and contraction affecting the use of the product.
5.This product should be used under the specified voltage. Considering that the voltage changes at night in some areas, it is recommended to use a voltage stabilizer to avoid affecting the efficiency of the product.
Required to order
1. Specific size requirements: diameter (mm) * Height (mm), lead form, length, and position
2. Operating voltage: 380V, 220V, 110V, 36V, etc., customized according to customer needs
3. Power: We generally do it according to 1.5-3W per square centimeter.

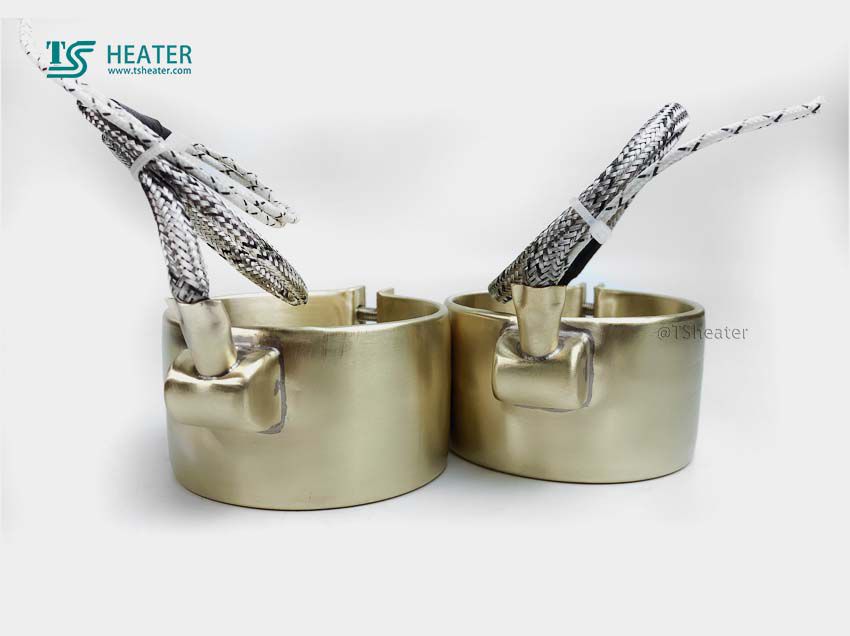

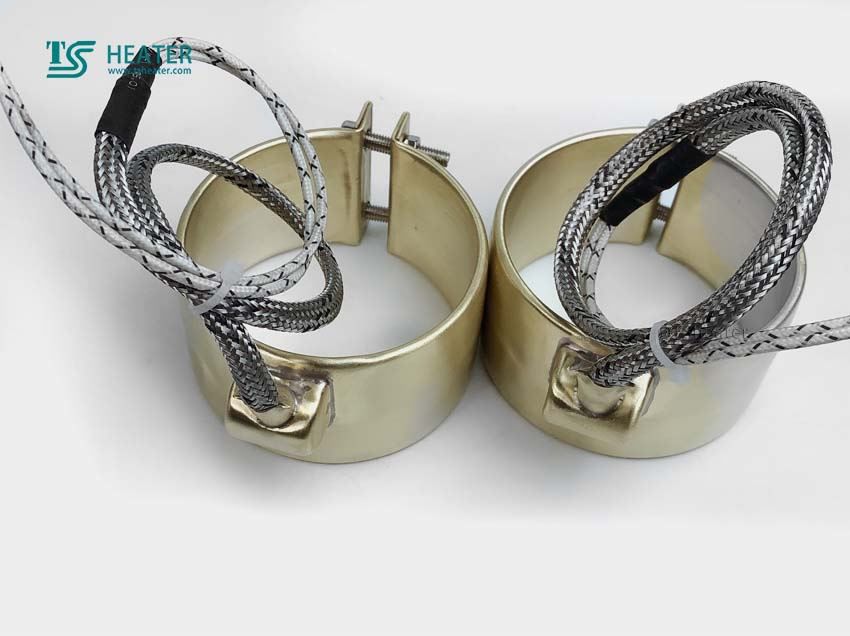

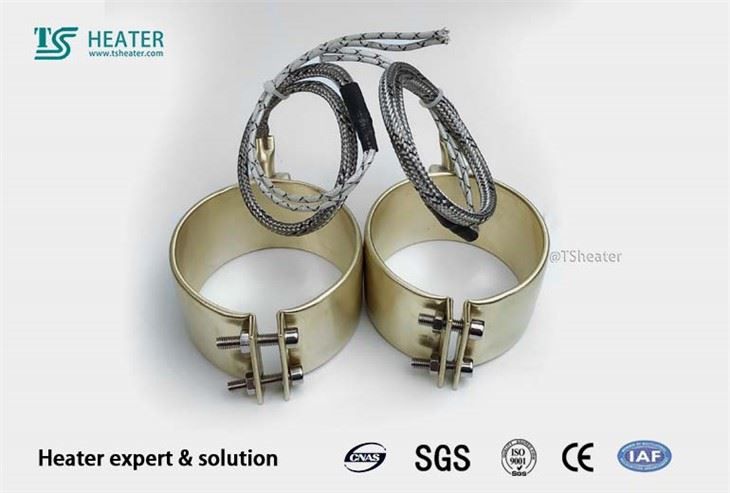

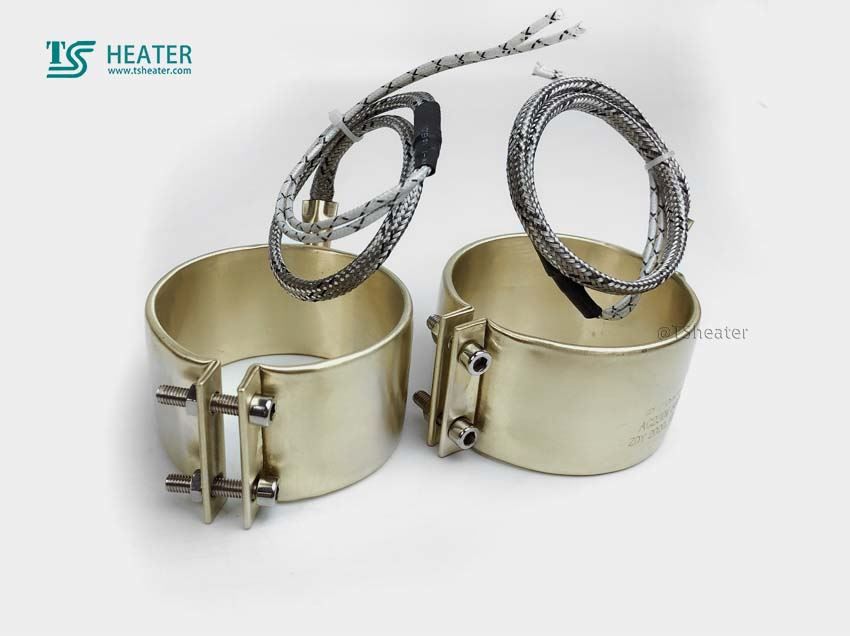

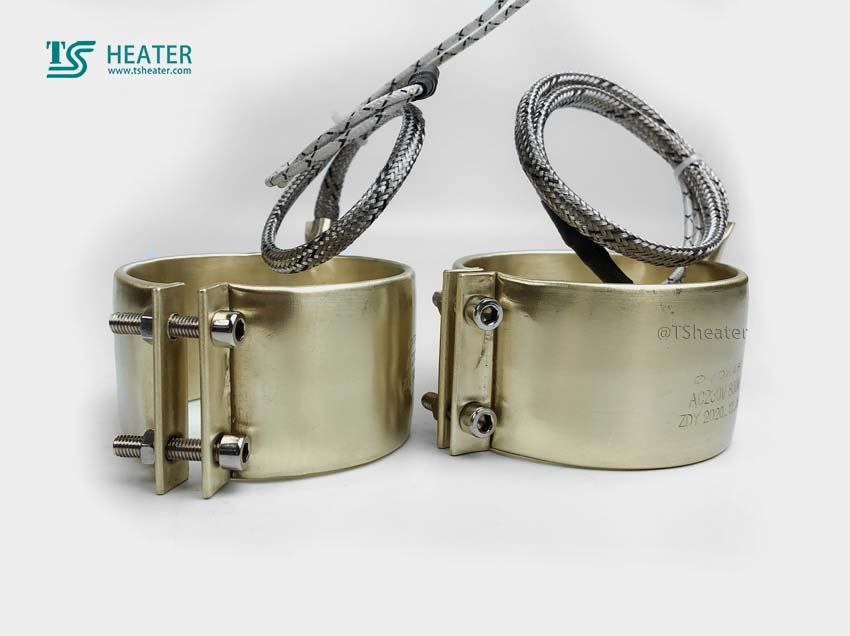

Details of the Brass Nozzle Heater:
