Our factory has a very complete production of the Ceramic Heating Element in Chin and can be installed to customize the Ceramic Heating Element of any specification according to customer requirements.

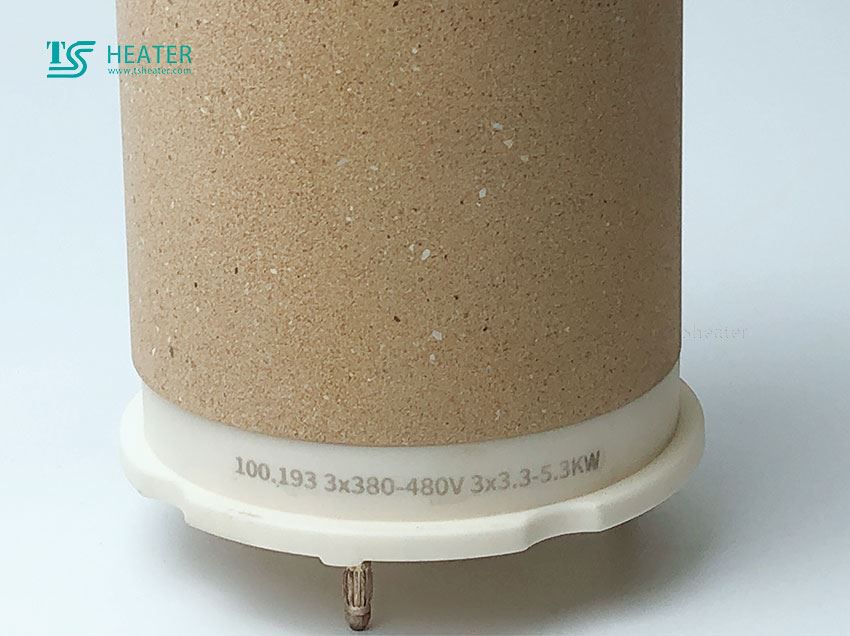

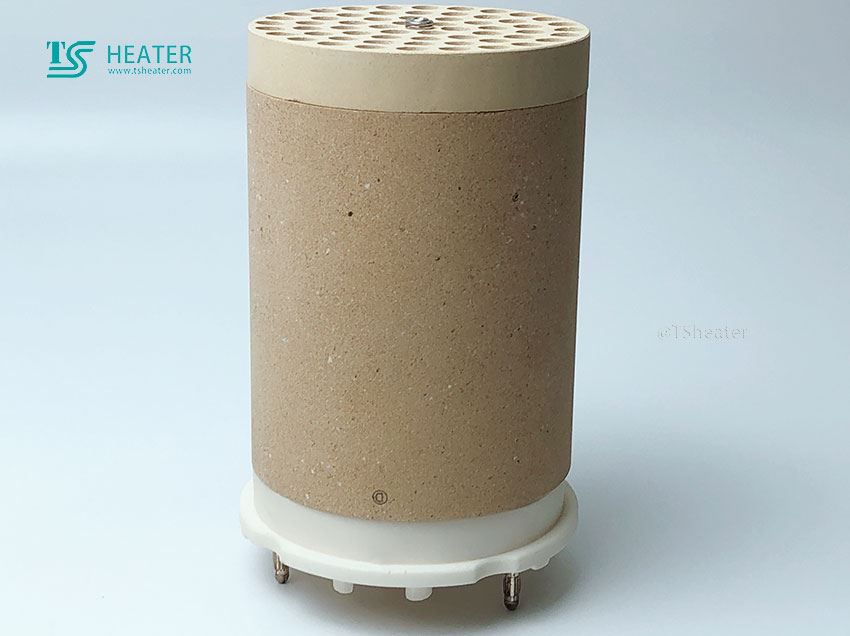

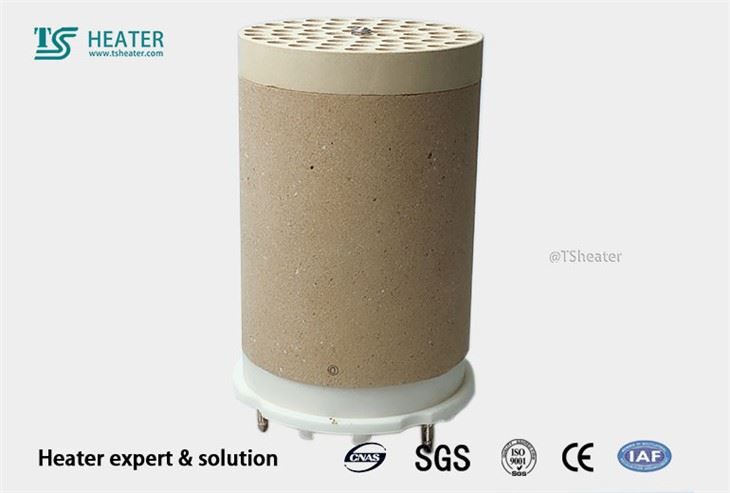

Product Name: Ceramic Heating Element
Type ： CHE-100193
Power: 3*(3.3-.3.5) KW
Voltage: 3*(380-480)V
Brand: TS
Size: 100.193
Uses: heating, heat preservation
Material: ceramic heating coil
The material of the Ceramic Heating Element:
1) Ceramics: high-temperature resistant ceramics
2) Electric heating wire: high-temperature alloy resistance wire
3:)Terminal: Copper nickel-plated terminal
Advantages of the Ceramic Heating Element:
1: The ceramic shell gives the product higher strength
2: Ceramics and heating wires are made of high-temperature-resistant materials. High-temperature resistance
3: Our factory has many years in the manufacturing process. The appearance of the ceramic is not easy to crack.

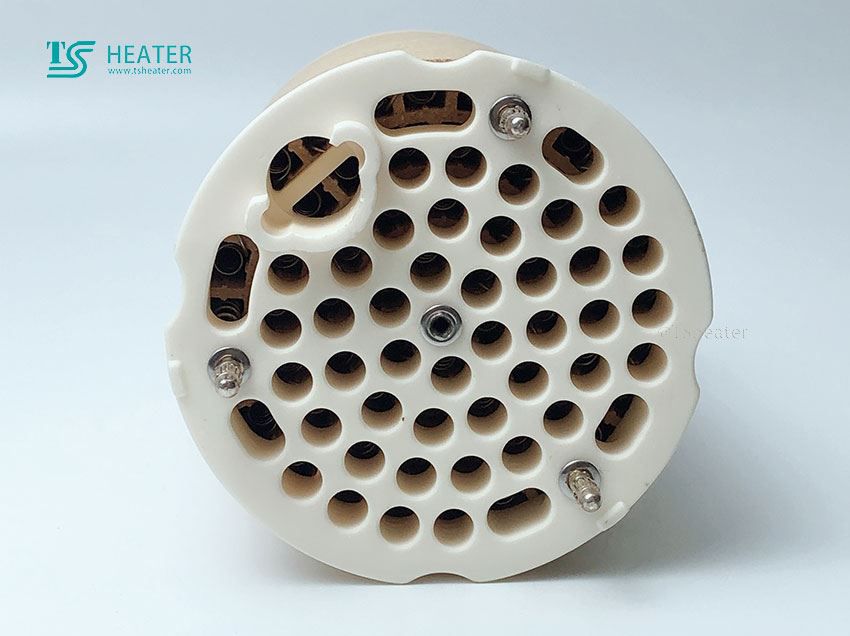

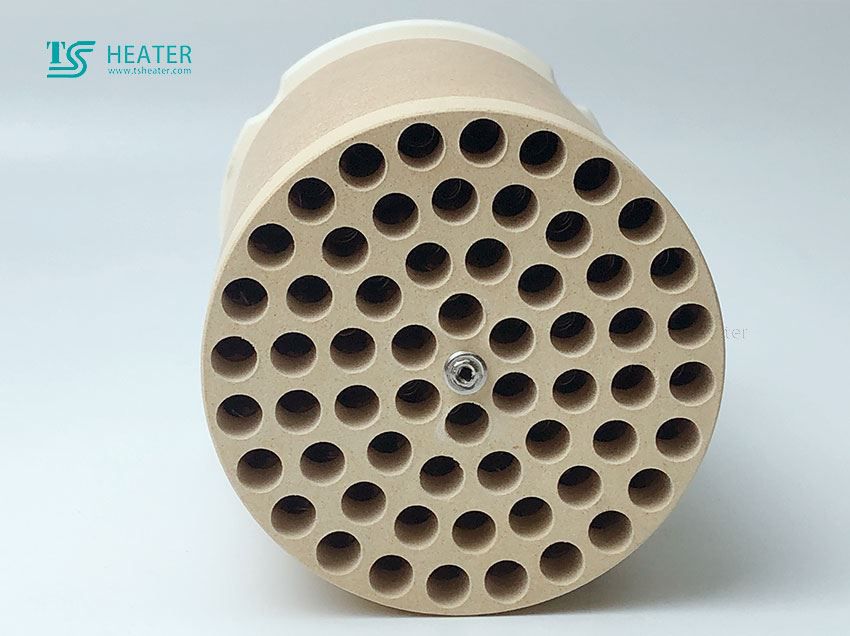

4: 60 electric heating wires are arranged around, so the heat transfer is fast and the heat is even.
5: Ceramics have a high heat insulation capacity, so the temperature does not leak out, can save electricity, the outer cover is not hot when touched by hand, and the work is safe.
6: The power of the product is high, the power of the ceramic rod threading method is 0.5~1.5 times higher than the ordinary one
7: European and American high-temperature resistant heating wire, with fast heat dissipation, uniform heating, stable high temperature, etc., can be used at 600-800℃ for a long time.
8: The product has a long life because of the age of the raw materials slowly at high temperatures, so the product has a long life.
9: Meet the technical requirements of the electric heating industry. Power deviation +5%∽-10%.
10: Electric strength: After the 1500v/50Hz sinusoidal AC voltage test, there is no breakdown after 1MIN.
11: High mechanical strength, good thermal insulation performance, large contact surface with the heated object, and long service life.
12: Installation and maintenance are convenient, and the use cost is low. Even if the internal heating material is damaged, the external ceramic components can still be reused.
Application of the Ceramic Heating Element:
1) Dry joint: tunnel geotechnical waterproof membrane welding, advertising inkjet tarpaulin welding, HDPE geomembrane welding, landfill impermeable membrane welding, PVC coated fabric heat sealing splicing, PVC plastic floor welding.
2) Food drying: food drying and baking, the food packaging industry, plastic shrink packaging,
3) Dry air: drying equipment sterilization packaging, industrial heater hot air device,
4) Others: electronic chemicals, civil engineering, plastics industry, automobile maintenance (painting/painting/welding).
Private customization of the Ceramic Heating Element
1) Due to the diversification of the varieties and specifications of heating elements, our factory has the most complete production line in China, which can manufacture all products in the market.
2) Our factory can customize various specifications of heating cores according to customer requirements.
