The heating tube winding machine mainly produces high-density electronic parts with single-ended lead-out heater parts, such as mica sheet electronic parts and carbon electronic parts.
Product: Heating tube winding machine
Number: FHDRS-23
The main technical parameters:
Maximum length: 500 mm (can be customized)
Minimum diameter: 0.07 mm (can be customized)
Power: 200V 50HZ 500W (can be customized)
Roll: 1200 * 550 * 1100 mm

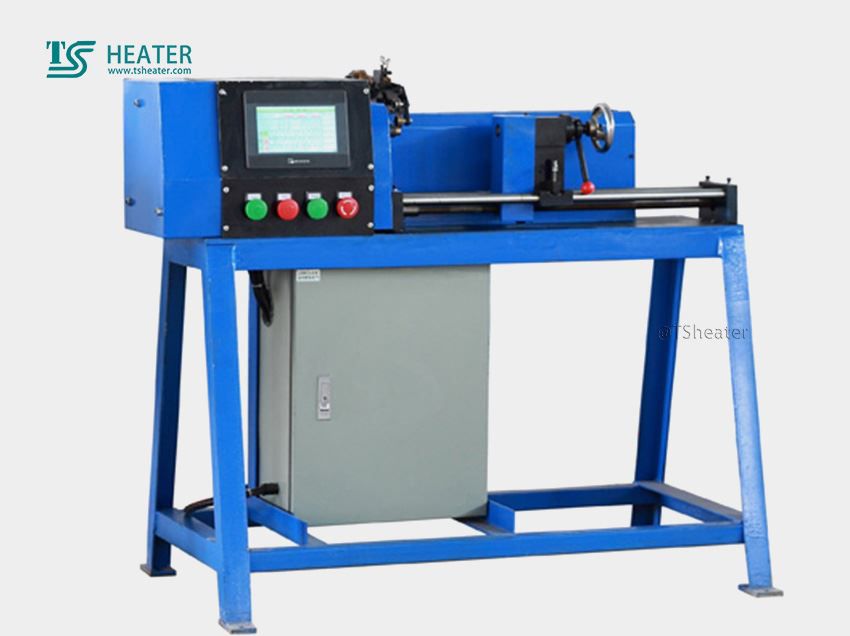

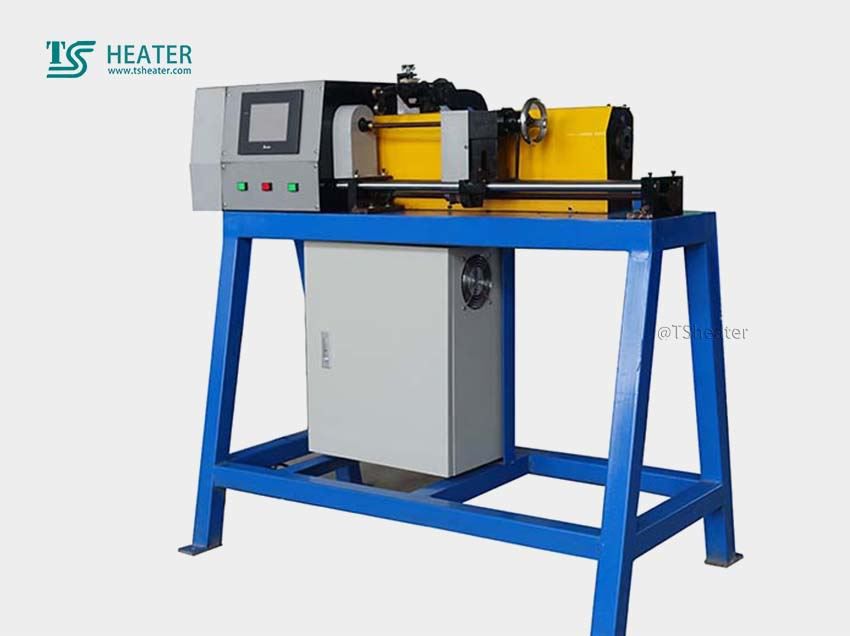

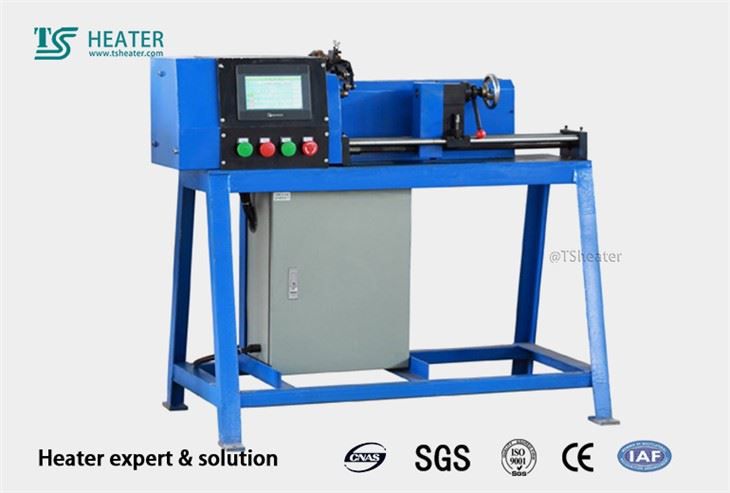

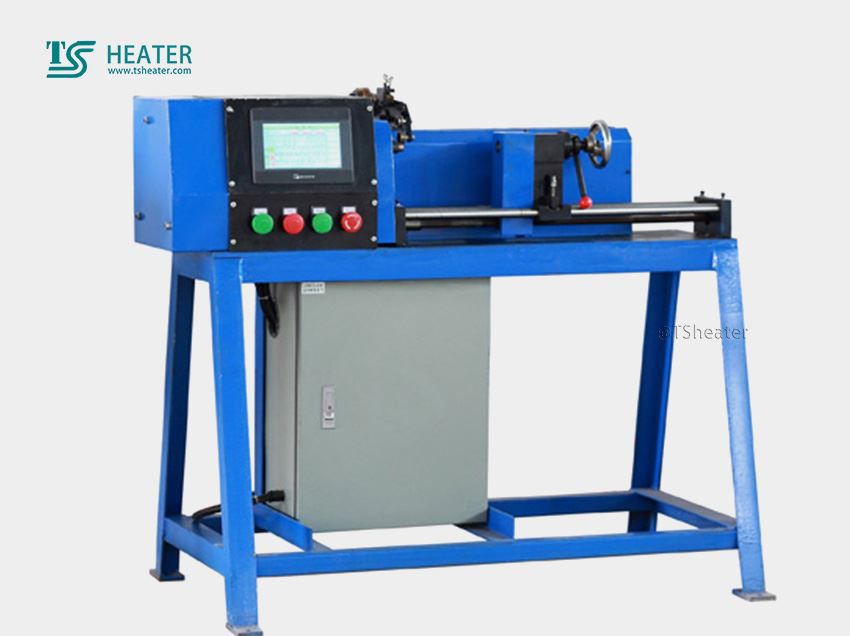

Heating tube winding machine:
The heating tube winding machine mainly produces high-density electronic parts with single-ended lead-out heater parts, such as mica sheet electronic parts and carbon electronic parts.
The main shaft is used as a support for the frame of these parts such as magnesium rods, ceramic rods, and mica sheets, and the inverter controls the speed.
The winding displacement moves with the movement of the ball screw driven by the stepper motor, thereby producing electrical components with different pitch intervals.
The controller made of SBC constitutes an integrated control system, which accurately controls the number of coil pitch arrangements, slow wind, fast wind, fast exit, and reset programs.
