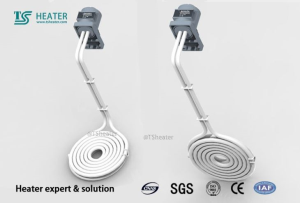

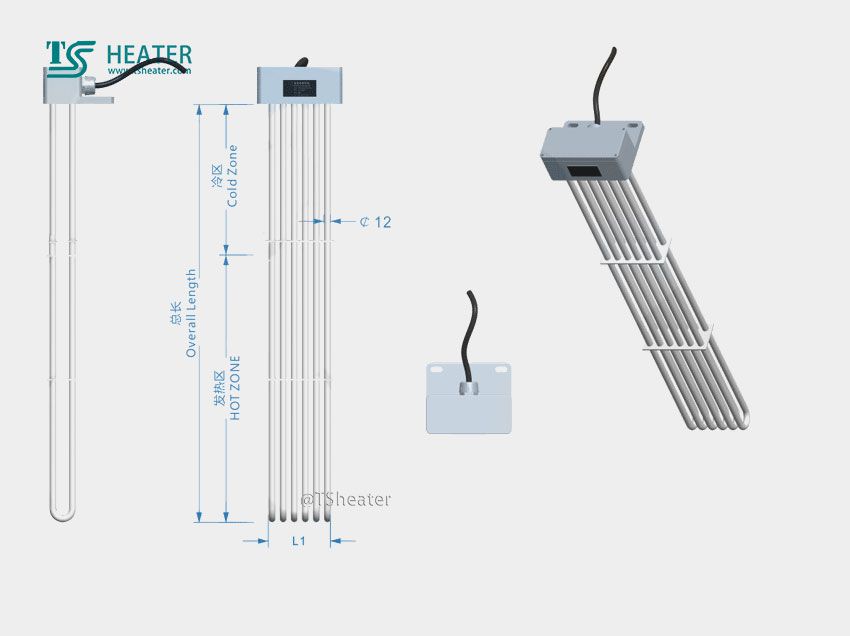

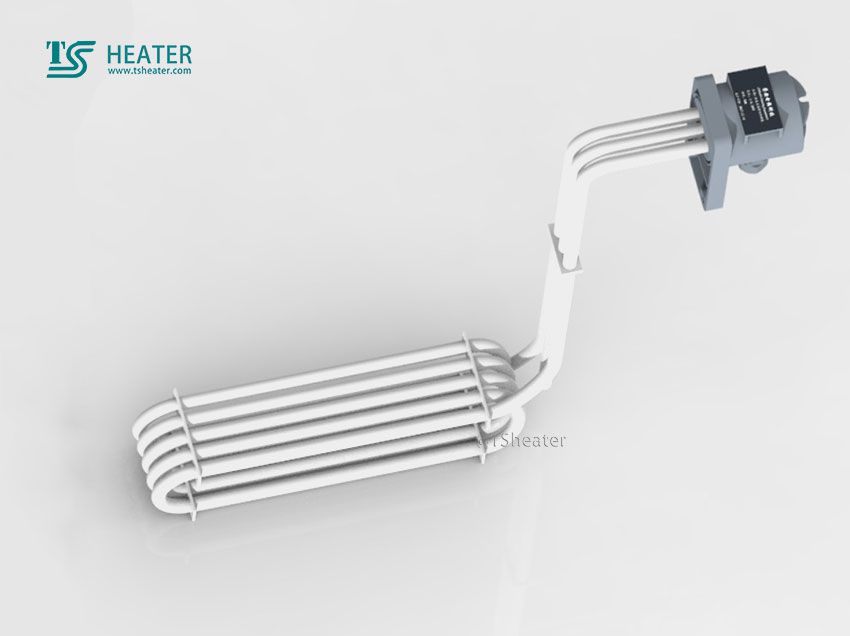

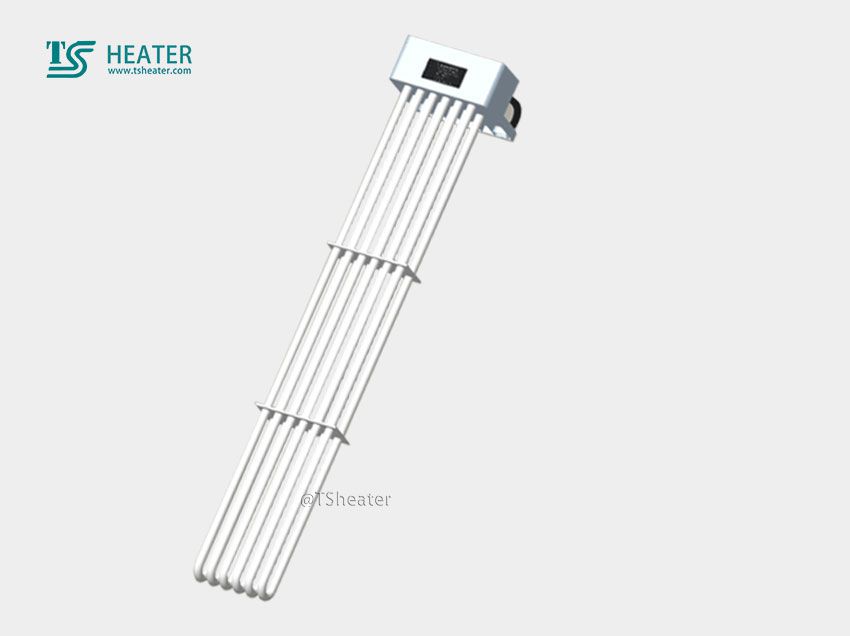

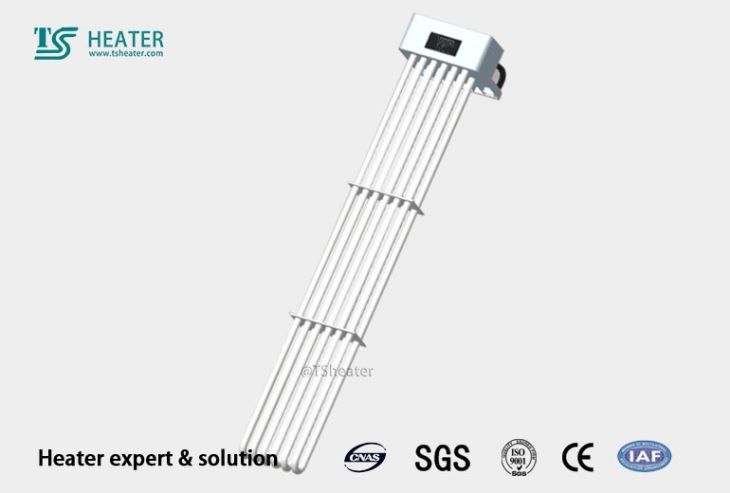

Element PTFE Immersion Heater,It is not applicable to heat in over-sticky liquid because poor heat dissipation will influence the service life of the products. We are able to make products according to customers’ request.At present, we have the following: combination type, L-shaped, coil-shaped for your reference. When using the product, please don’t collide or scratch the surface of the Teflon.Element PTFE Immersion Heater
Element PTFE Immersion Heater
Excellent CHEMICAL RESISTANCE: suitable for all kind of acid, alkaline, anodizing and pickling solutions
(2).Heaters materials is available for PTFE(Fluoropolymer):Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.Element PTFE Immersion Heater
(3).Long service life: Low watt density design (10 wattsuare inch, 1.5 w/cm2) for long service life.
(4).PVC RESISTANT HEATERS HEAD
(5).Safety Grounded and Thermal protection:
Replaceable thermal protectors is from 80°C to 105°C for solutions.
(6).CERTIFICATIONS: ISO9001 and CE.
(7).WATTS: FROM 1.5KW to 18KW
(8).VOLTAGES:120-600 volts, Three Phase standar,Sing phase available
(9).We have custom-built heaters and can make any Watts,voltages with the size according to customers’ requirement
(10).OPTIONS :(consult Our FACTORY for any installation)
(11).We recommend temperature controls and level controls for use with this immersion heater.
Element PTFE Immersion Heater
