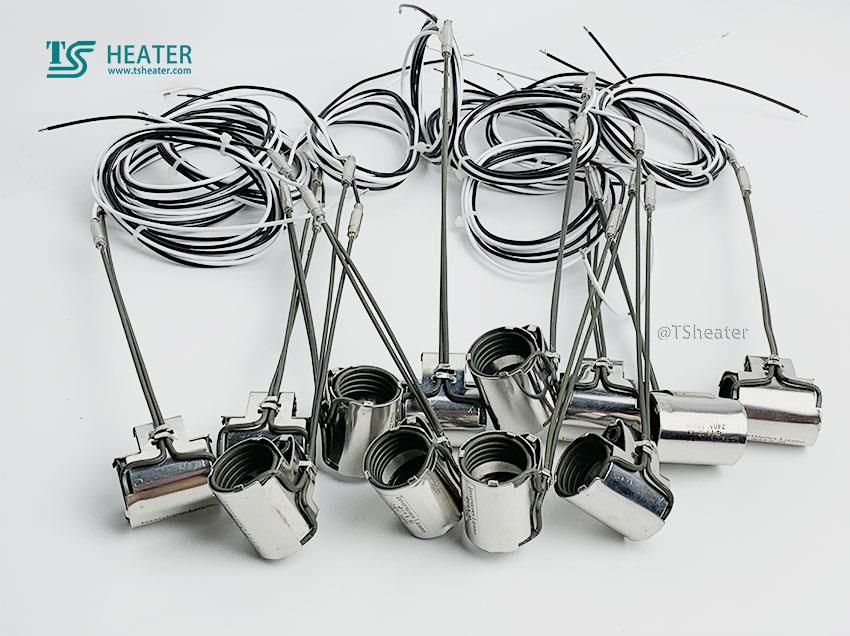

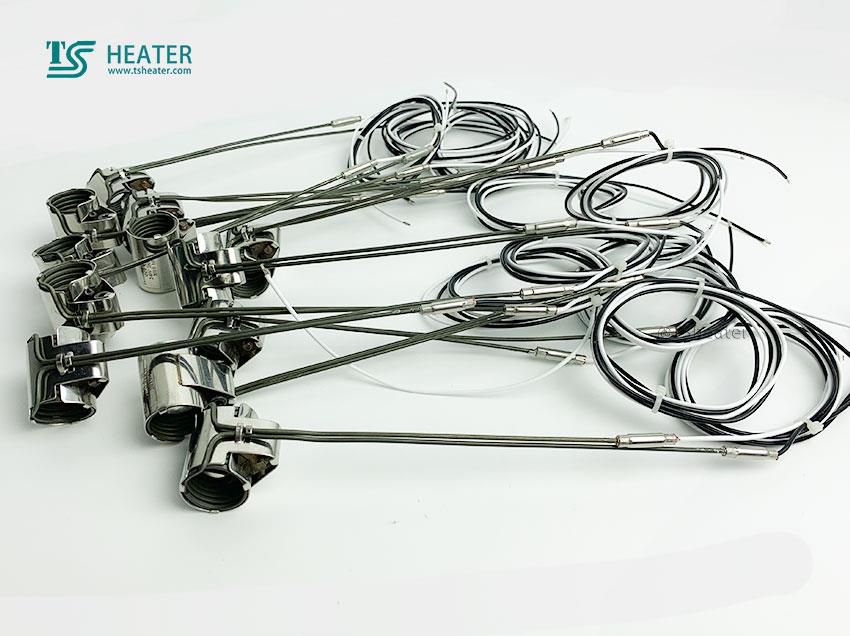

Axial Clamp Mini Coil Heater With Thermocouple On The Nozzle 240V / 268W
Heater Coil 1500w
Description

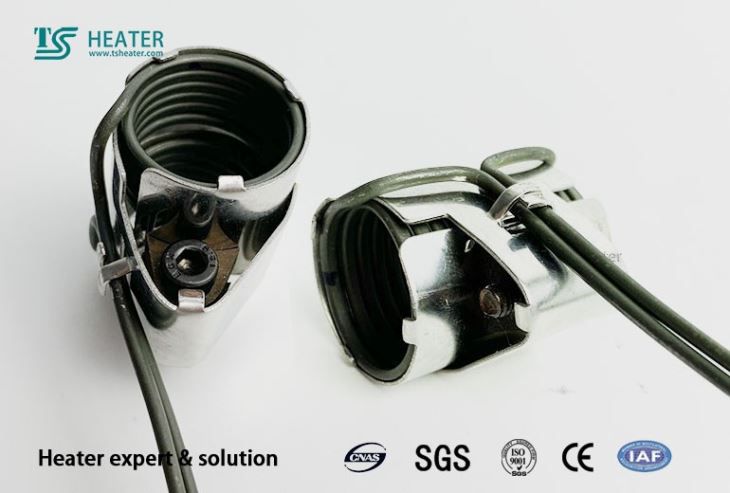

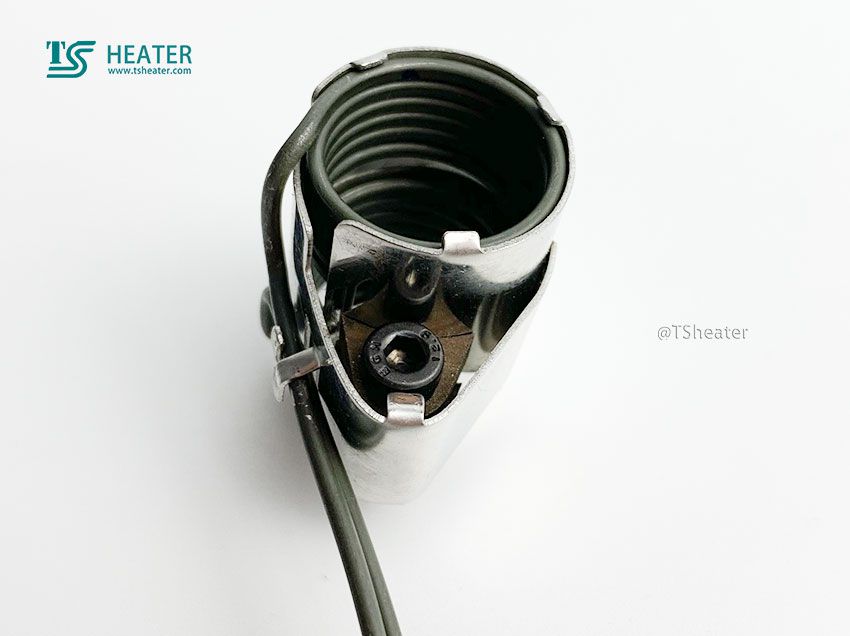

Axial clamp mini coil heaters are a proven performer for high cavitation applications including pre-forms, caps and closures, and razors. GME axial clamp heaters positively lock on the nozzle ensuring excellent heat transfer and durability. Adjustments can be made with a single front facing allen screw, greatly simplifying tightening and removal.
Heater Coil 1500w

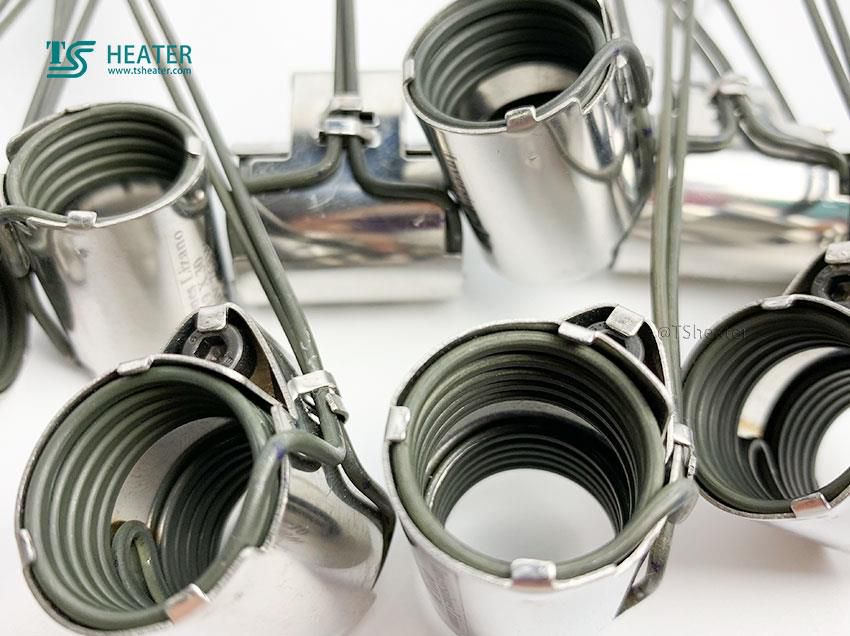

With flat mini coils in direct contact with the injection molding nozzle GME axial clamp heaters can be wound with more heater coils closer to the edge. This configuration improves responsiveness and heat profile.
Standard Axial Lock-up Heaters | |||
Diameter | Width | Watts | Volts |
“3/4” “(19.05mm)” | “1.2” “(30mm)” | 149W | 240V |
“3/4” “(19.05mm)” | “1.2” “(30mm)” | 268W | 240V |
“7/8” “(22.22mm)” | “1.2” “(30mm)” | 268W | 240V |
Heater Coil 1500w
Technical Specifications
Heater Sheath: CrNi Steel
High Voltage Stability: 800VAC
Insulation Resistance: >= 5M ohm at 500 VDC (Cold)
Leakage Current: <= 0.5 mA at 250VAC (Cold)
Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%
Maximum Voltage: 250V
Standard Connection: 72” Teflon to 500 deg. F
Heater Coil 1500w
Feature

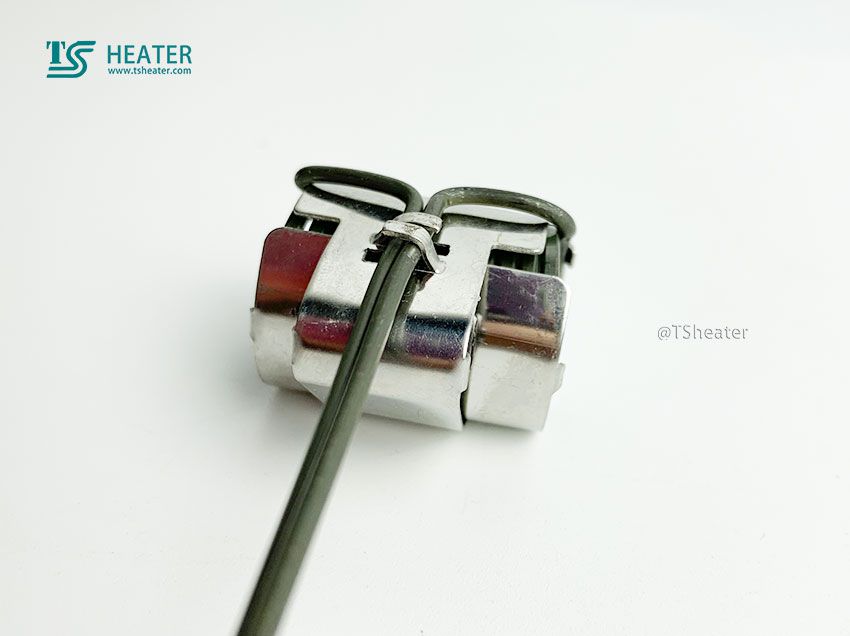

Positive locking positioning
Single allen screw adjustment for tightening and removal
Mini coils in direct contact with nozzle
Replaceable external thermocouple
Profiled for more heat at the Tip
Caps and Closure Applications
Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple
Also used in Plastic molding for the cosmetic industry
Application
1. Injection Molding
2. Packaging
3. Automotive
