Introduction

Electric Geyser Coil

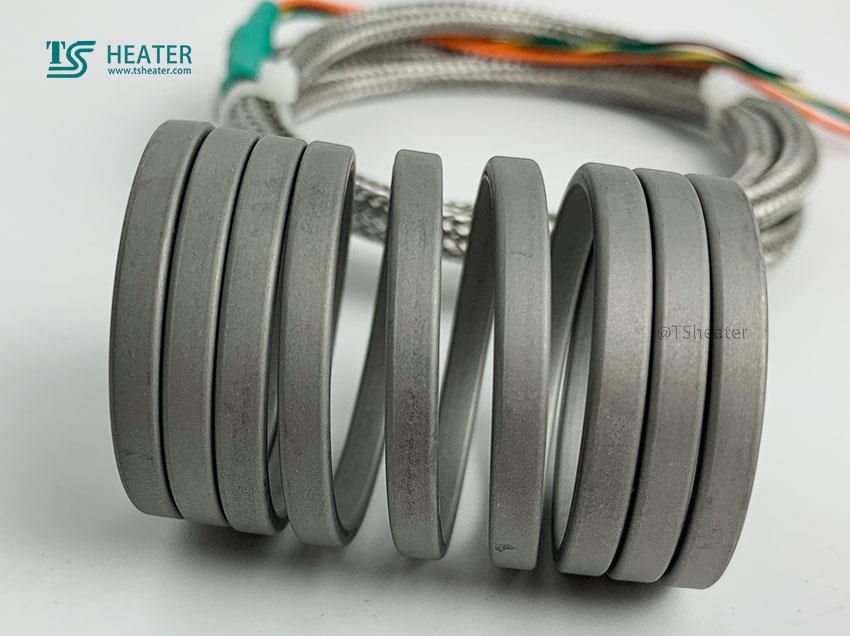

The hot runner coil heater is made of nickel-chromium resistance wire and placed in a chrome-nickel steel tube filled with MgO powder. After compaction, the heat transfer is faster and more efficient.

The hot runner heater is annealed to obtain ductility that can be bent to any shape.

Injection coil heaters with thermocouples are also available.

group

Features:

Electric Geyser Coil

1.Using sea water magnesium oxide rod, 8020 alloy and technology made of various shapes of round, square, flat section, can be matched with j-k or e-type thermocouple.

2.Specially for hot runner manufacturers to provide flexible and convenient self-winding heating strip, to solve the standard and non-standard hot nozzle (runner sleeve, nozzle) between the contradiction.

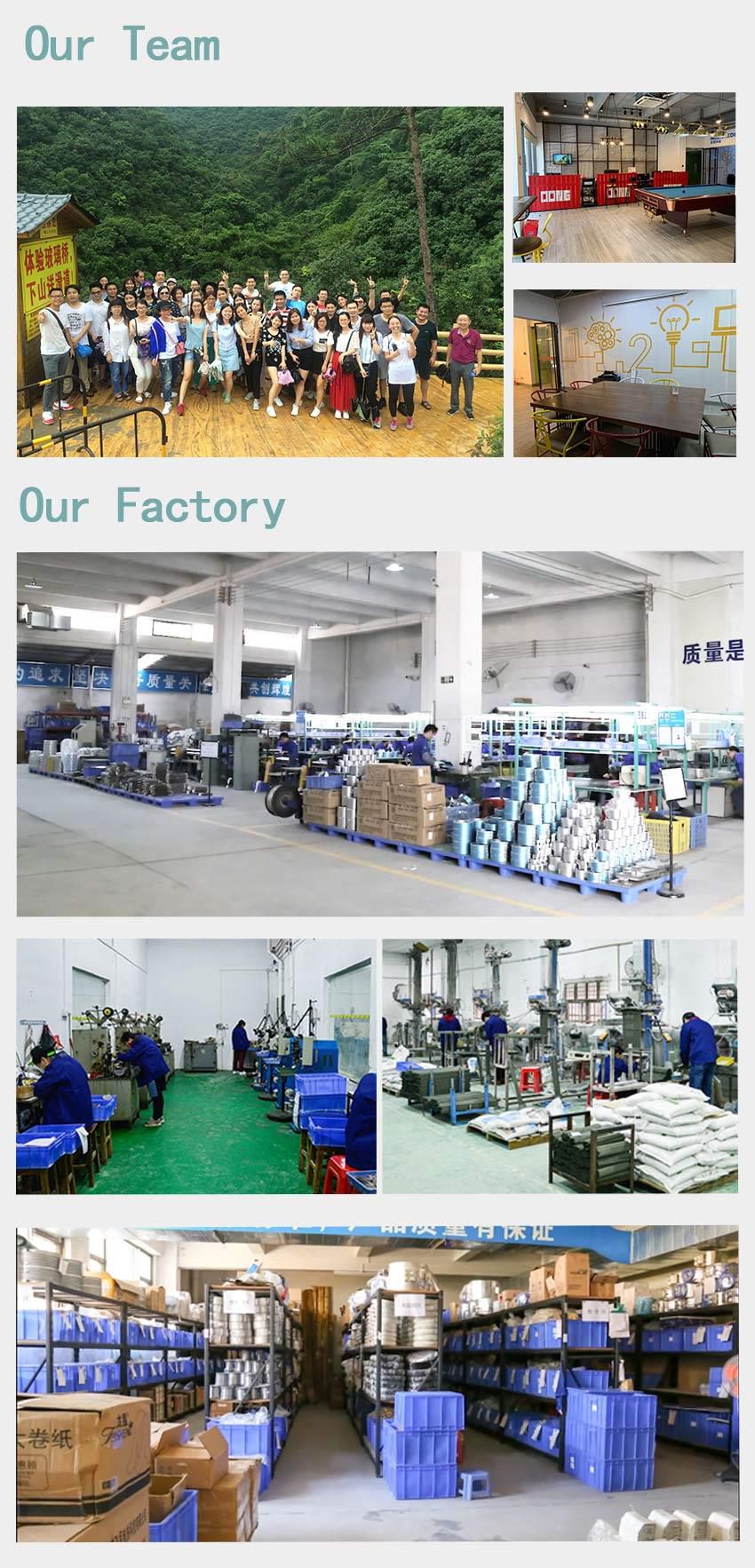

The company has strong technical force, complete production equipment, complete testing equipment, perfect quality assurance system, so that the product quality is constantly improving.

Company commitment: on the basis of quality, adhere to customer satisfaction, quality assurance, good reputation, affordable prices.

The product description

Electric Geyser Coil

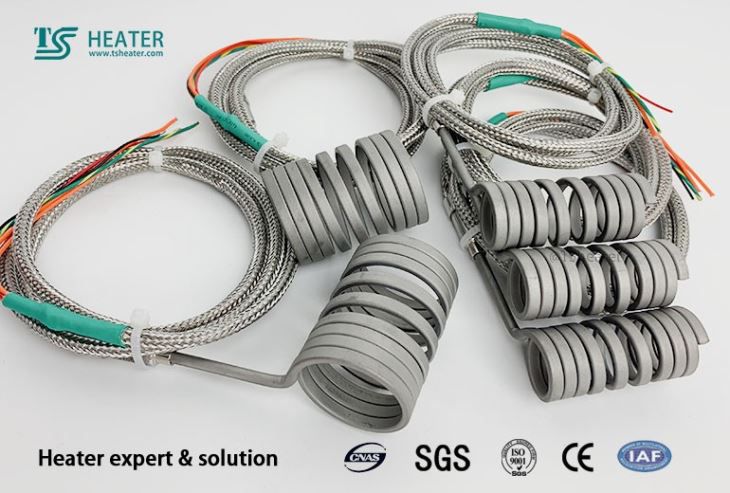

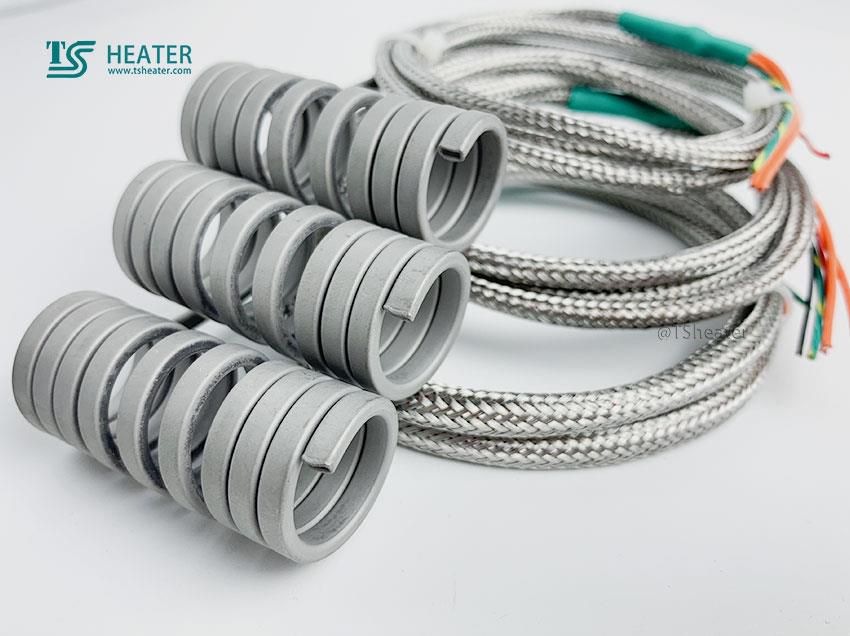

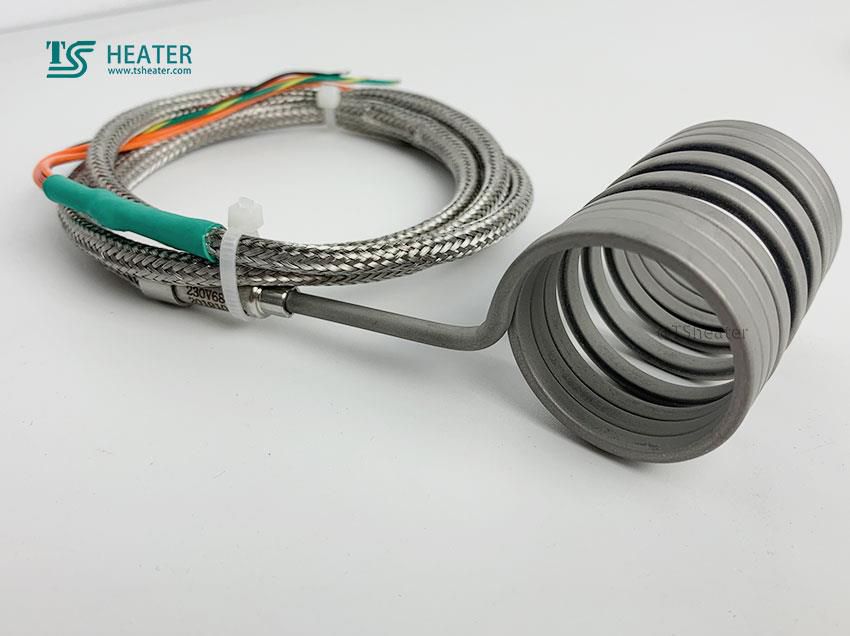

The products are widely used in the American market, and can also be made according to customer requirements of ordinary or flat coil heater

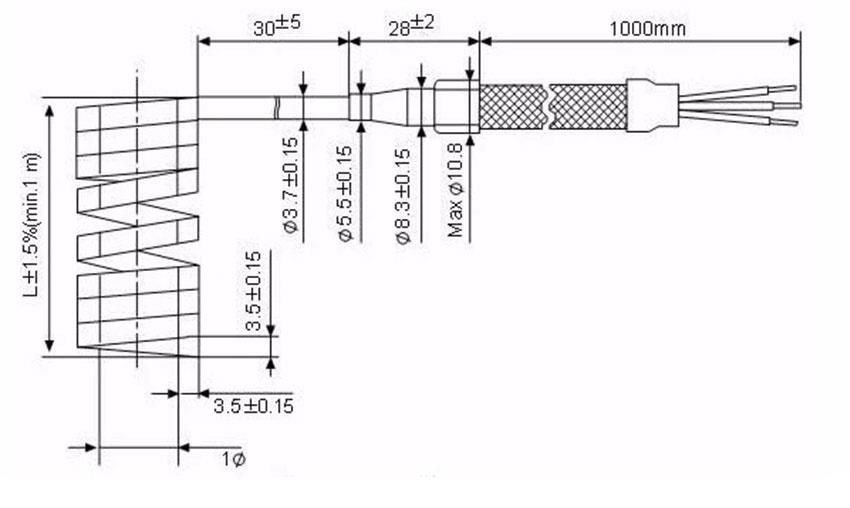

Cross-sectional area 3 x3, 4.2 X2.2, 4 x2, 4 x2. 7, 4 X2.5 3.3 X 3.3 X 3.5 3.5 4 X 4,2.2 X1.3

Minimum id 8 mm

Sheath material ss304 SS310

Insulation material high purity MgO

Resistance wire cr20ni80

The highest temperature of sheath is 700℃

The electrical strength of the mold is 800v A/C

Insulated >5 M W

Dimensional tolerance coil I.D+0.1 to 0.2mm// coil length +1mm

Fault tolerance +10%(+5% as required)

The voltage is 12v ~ 380v

Power 70w ~ 1000w

Built-in J/ kthermo thermocouple power supply

The length of the sheath 500/1000/1200/1500/2000 mm

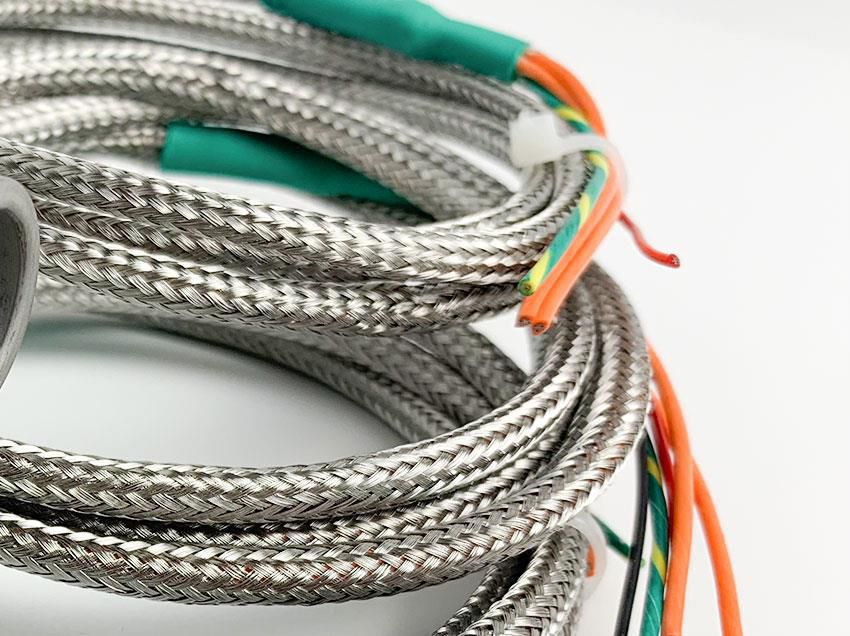

There are sanitary nylon, metal woven, glass fiber, silicone rubber, kevlar

The color standard for the sheath is black, other colors are also acceptable

Connectors do not carry or carry 5 pin XLR,4 pin minimum XLR connectors

Connector color silver or all black

Standard

Electric Geyser Coil

ID16mm

Length: 10.6/12.7/13.3 mm;

Voltage: 24/110/120/220 v.

Power: 100/150/250 w

With K or J

Kevlar casing spring coil

ID20mm

Length: 10.6/12.7m / 13.3mm;

Voltage: 24/110/120/220 v.
