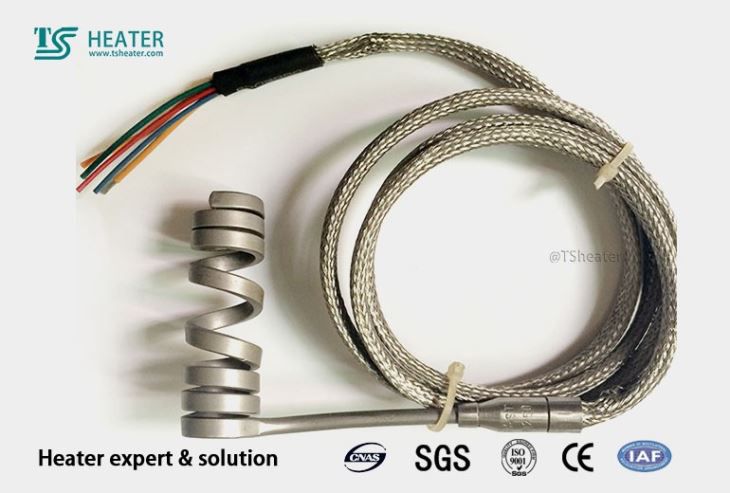

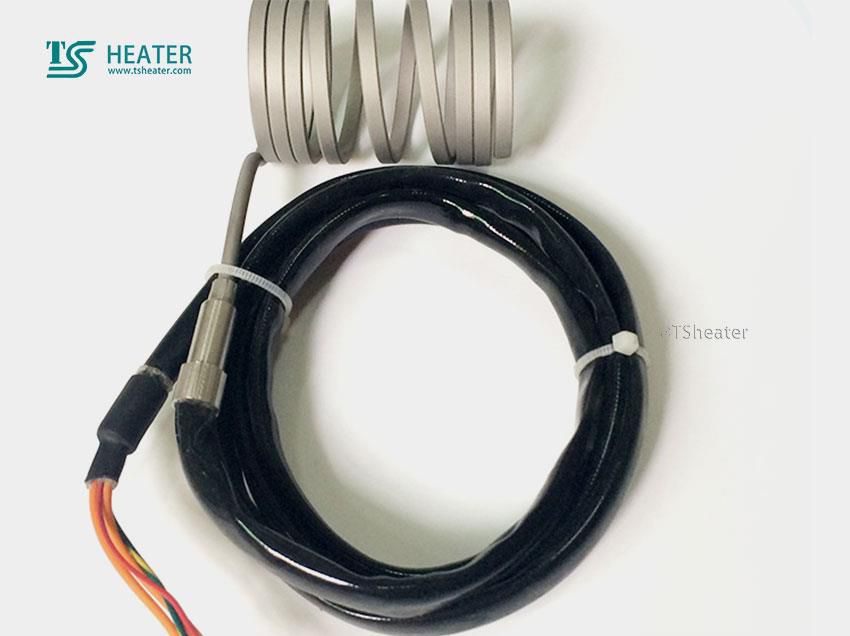

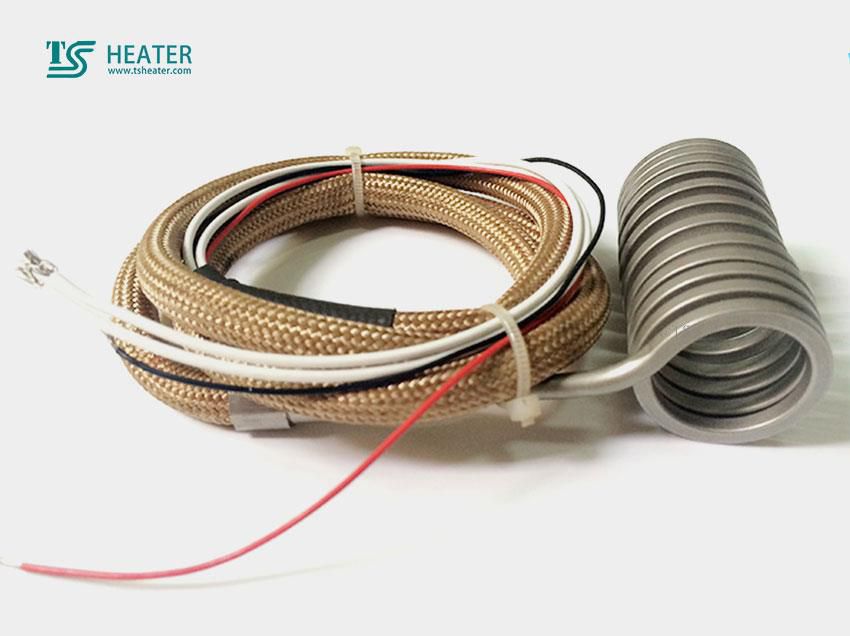

Coil heater description: 1) the spring tube heater is made of ni-cr resistance wire, placed in the ni-cr steel tube and filled with MgO powder. 2) spring heater is also known as high performance tubular heater or cable heater. 3) the spring heater can be built in or not built in thermocouple. 4) spring heater is widely used in heating engineering, mold, plastic industry, including conveying machinery, medical equipment, casting process, welding, heat treatment process and other industries and fields Hot Runner Mould System
Hot Runner Mould System
Product Description
pecification are widely applied in American market or make regular or flat coil heater for enail as request

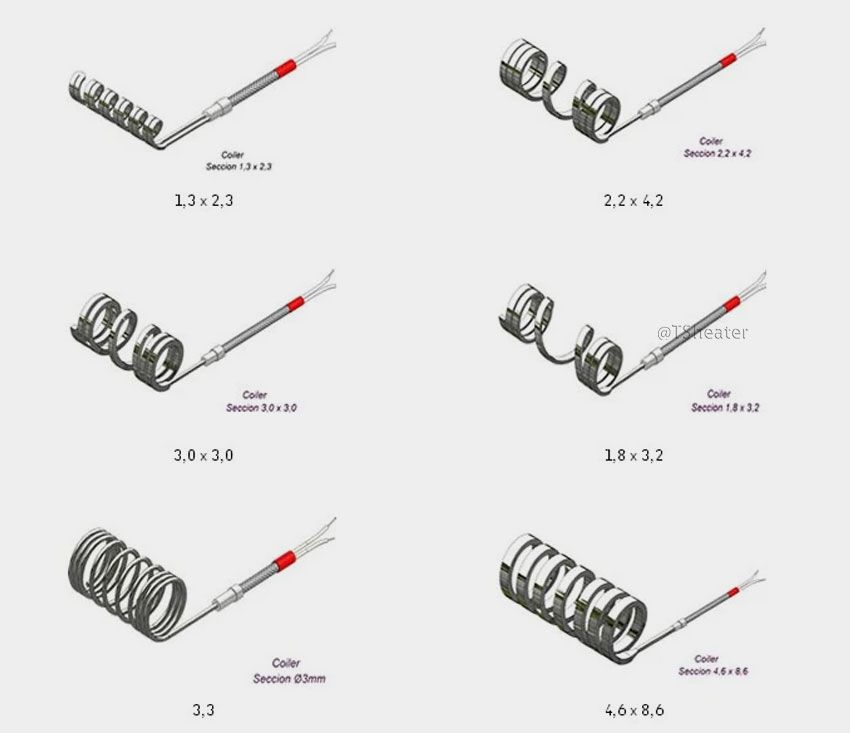

Sectional area 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
Minimum ID 8mm
Sheath Material SS304,SS310
Insulation Material High Pure MgO
Resistance Wire Cr20Ni80
Maximum Sheath Temperature 700°C
Die Electrical Strength 800V A/C
Insulation >5 M W
Dimensional Tolerance Coil I.D+0.1 to 0.2mm//Coil Length+1mm
Wattage Tolerance +10% (+5% Available Upon Request)
Voltage 12V~380V
Wattage 70W~1000W
Build-inthermocouplepower withoutor with J/Kthermocouple
Sheath's length 500/1000/1200/1500/2000mm
Availablesheath nylon,metal braided,fiberglass ,silicone rubber, kevlar
Sheath's color standard is black,other color is also available
Connector without or with 5 pin xlr,4 pin min xlr connector
Connector' color silver or fully black
