Fin Tube Heater

Introduction to finned tube heater:

Fin Tube Heater

Finned tube heaters are easy to install and maintain.

Flanged immersion heaters are designed for heating liquids and gases in vessels and pressure vessels for high power applications.

Finned tube heaters are made by brazing or welding tube elements to flanges.

The stock flange heater is equipped with a universal terminal housing.

Finned tubular heaters with tubular elements are also suitable for liquid immersion applications in small vessels requiring high kilowatts of electricity.

The unique flat geometry of the tubular element encapsulates more energy in a smaller space and has a lower watt density, making it particularly suitable for petroleum-based liquid heating applications.

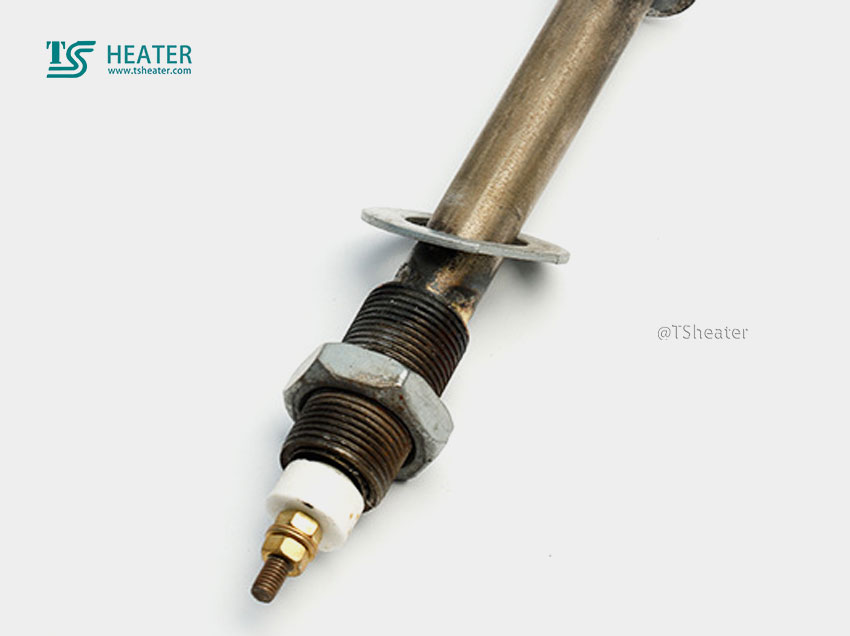

Water heating elements are made of hexagonal pipe threads by brazing or welding elements.

These devices are used for direct immersion in liquids and gases.

The water heater shall be installed through a threaded hole in the tank or container.

Water heating elements are available in a variety of pipe thread sizes and materials.

The element of water is available in many materials and is suitable for a variety of fluid heating applications.

The terminal housing can be used in indoor, outdoor and hazardous environments.

There are many options.

As we are a bespoke company, we can provide a large selection of sizes and configurations.

Please contact us to assist with your application.

Characteristics & Properties

Fin Tube Heater

Tube Diameter: Φ6mm-Φ30mm

Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc

Insulation Material: MgO

Conductor Material: Nichrome Resistance Wire

Wattage Density: High/Middle/Low (5-25w/cm2)

Lead Connection Option: Threaded Stud Terminal or Lead Wire

Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for industrial fin type heater）
