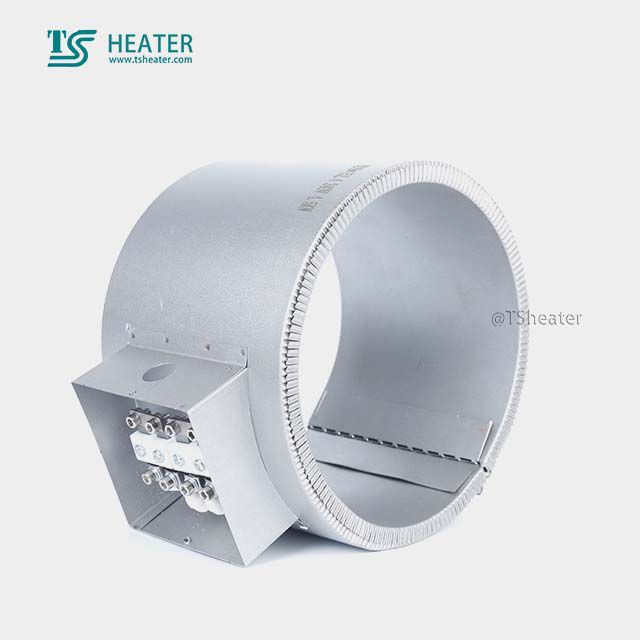

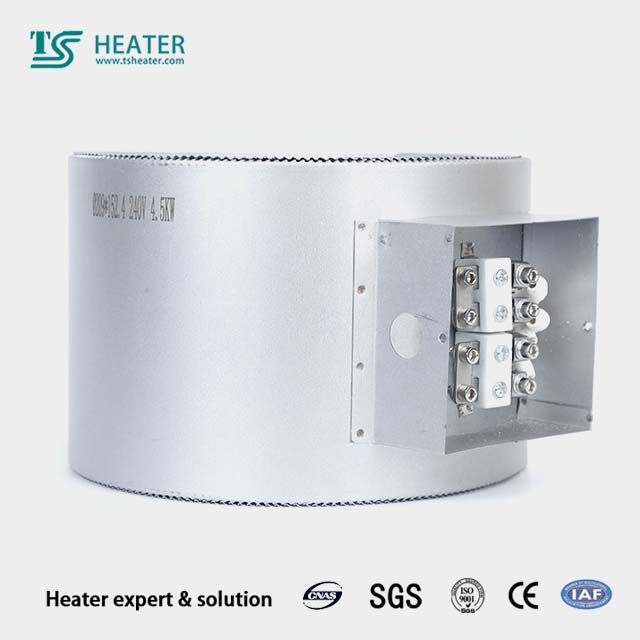

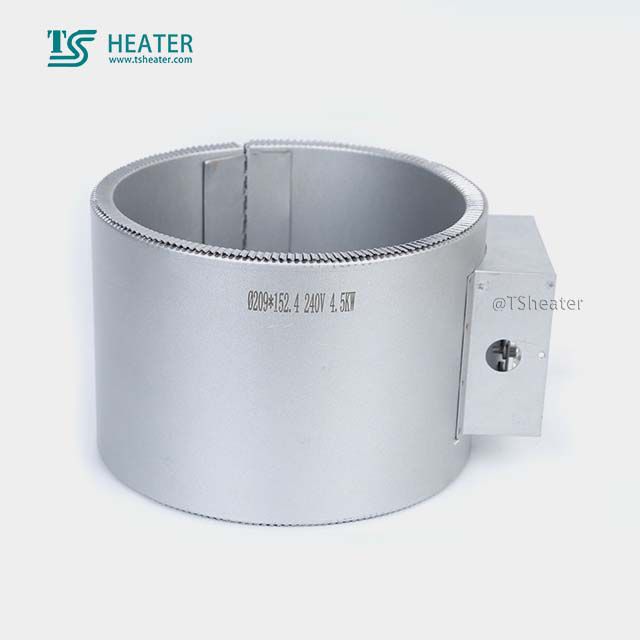

The Infrared Insulated Electric Resistance Ceramic Band Heater is made by threading alloy wires in a small ceramic box and wrapping the outside with a stainless steel shell. The power of our company's products is 0.5~1.5 times higher than ordinary ones. The heating element is made of imported round wire ceramic, which is bent into a spring shape and penetrated into a ceramic strip. The outer cover is made of stainless steel, and the middle is made of high-temperature thermal insulation cotton (aluminum silicate fiberboard) to prevent temperature leakage. Ceramic strips are high-frequency ceramics that have the characteristics of fast heat transfer, hard and not fragile, high temperature, non-deformation, and not easy to aging.
The Infrared Insulated Electric Resistance Ceramic Band Heater is made by threading alloy wires in a small ceramic box and wrapping the outside with a stainless steel shell. The power of our company's products is 0.5~1.5 times higher than ordinary ones. The heating element is made of imported round wire ceramic, which is bent into a spring shape and penetrated into a ceramic strip. The outer cover is made of stainless steel, and the middle is made of high-temperature thermal insulation cotton (aluminum silicate fiberboard) to prevent temperature leakage. Ceramic strips are high-frequency ceramics that have the characteristics of fast heat transfer, hard and not fragile, high temperature, non-deformation, and not easy to aging.
performance:
1. Fast heat transfer, uniform heating, and stable work.
2. The temperature does not leak, it can save electricity, the outer cover is not hot when touched by hand, and it is safe to work.
3. The power of the product is high, and the power of the ceramic rod threading method is 0.5 to 1.5 times higher than that of ordinary ones.
4. The product has a long service life, because the raw material ages slowly at high temperatures, so the product has a long service life.
Special customization:
1. Infrared Insulated Electric Resistance Ceramic Band Heater is a kind of heater with high temperature and long life. The higher and higher working temperature requirements in modern industry,
2. The user should provide product drawings or samples. If there are no drawings or samples, the product specification, model, voltage, power, etc. must be provided.
3. The surface withstands the power of the Infrared Insulated Electric Resistance Ceramic Band Heater is between 2.5 and 6.5 watts/cm².
Precautions for use:
1. Infrared Insulated Electric Resistance Ceramic Band Heater is a non-waterproof structure, so do not contact oil, water, plastic particles during storage, use, and installation to prevent leakage of electricity.
2. During installation, the ceramic electric heater must be closely attached to the heated body, and the surface of the heated body should be flat and complete without unevenness.
3. After use, if you find that the surface has a scorched black color, it indicates that the heat generation and the heat dissipation of the heated body are unbalanced, and should be adjusted in time to prevent burn-through.
4. When heating and using Infrared Insulated Electric Resistance Ceramic Band Heater, avoid hitting hard or colliding with hard objects to cause the tile to break, and the exposed alloy resistance wire will affect the operating life.
5. Before installation, check whether the installation position is consistent with the specifications of the Infrared Insulated Electric Resistance Ceramic Band Heater and whether the operating voltage is consistent.
Instructions for use
1. The working voltage shall not exceed 10% of the rated value;
2. The wiring part is placed outside the heating layer and insulation layer, and the shell should be effectively grounded;
application
1) Chemical fiber
2) Engineering plastics
3) Plastic machinery
4) Electronics
5) Medicine
6) Food
7) Various pipeline heating, etc.;
