Ceramic Heat Mat

Ceramic Heat Mat

ceramic heat mat can be made according to the shape and size of the equipment, and can be spliced, bent, wound, and heated close to the workpiece. It has the characteristics of a wide application range, fast heating speed, high heat utilization rate, and convenient operation.

Description

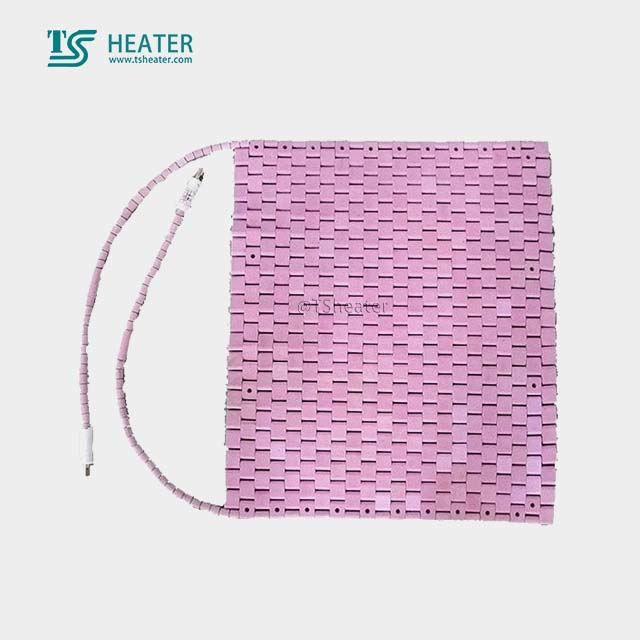

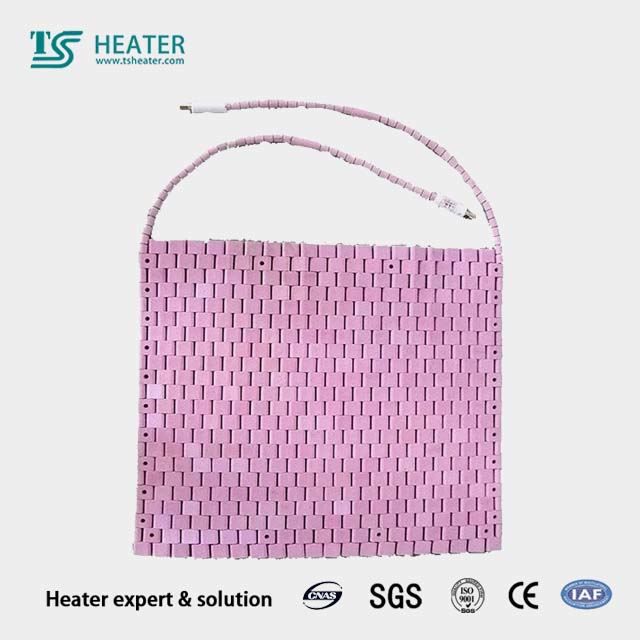

The ceramic heat mat is made of high-quality nickel-chromium alloy wire and cable and is made of high-purity alumina ceramic insulation. ceramic heat mat can be made according to the shape and size of the equipment, and can be spliced, bent, wound, and heated close to the workpiece. It has the characteristics of a wide application range, fast heating speed, high heat utilization rate, and convenient operation.



♦ The ceramic heat mat is an electric heater with a nickel-chromium wire cable pierced in an alumina ceramic element;

♦ According to the shape of the welding seam of the equipment, it can be rectangular, rectangular or triangular, fan-shaped, etc.;

♦ The ceramic heat mat is in close contact with the equipment for heating and can be bent. The corresponding specifications should be selected according to the weld shape and heat treatment requirements;

♦ Mainly used for pre-weld and post-weld heat treatment heating of welds of steel structures such as pipes and vessels;

♦ The temperature can be controlled only when the heater is matched with a temperature controller, and the temperature range is 0--1000°.







Advantage:

♦ High-temperature-resistant ceramic tiles can be precisely extended and bendable.

♦ Our company's design is flexible and easy to install.

♦ The ceramic heat mat is suitable for working in a high-temperature environment, and the surface load can reach 5-9W/cm2.

♦ Ceramic heat mat has the characteristics of good thermal conductivity, high insulation performance, and long service life.

♦ It has a fast heating speed, high heat utilization rate, significant energy saving, and low labor intensity.

♦ The ceramic heat mat is made of high-quality nickel-chromium alloy wire and cable, jacketed with high-purity alumina ceramic insulators to make crawler or rope heaters and other product forms.

♦ It can be made according to the shape and size of the equipment, and it can be spliced, bent, and wound close to the workpiece for heating.



application:

Various ceramic heat mats developed according to technical solutions are used in boiler, chemical, shipbuilding, power construction, machinery, and other sectors

ceramic heat mat2ceramic heat mat
