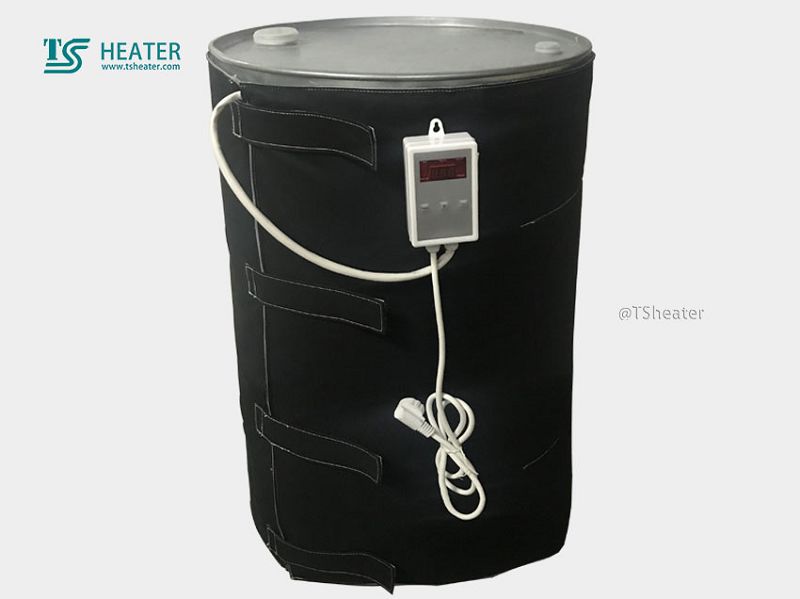

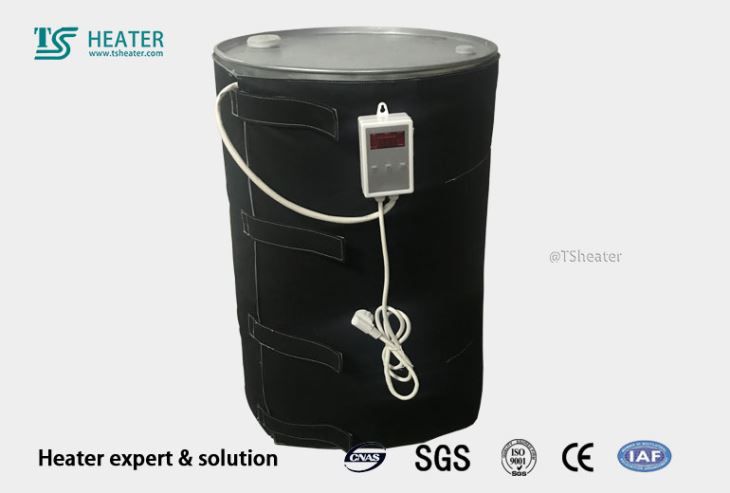

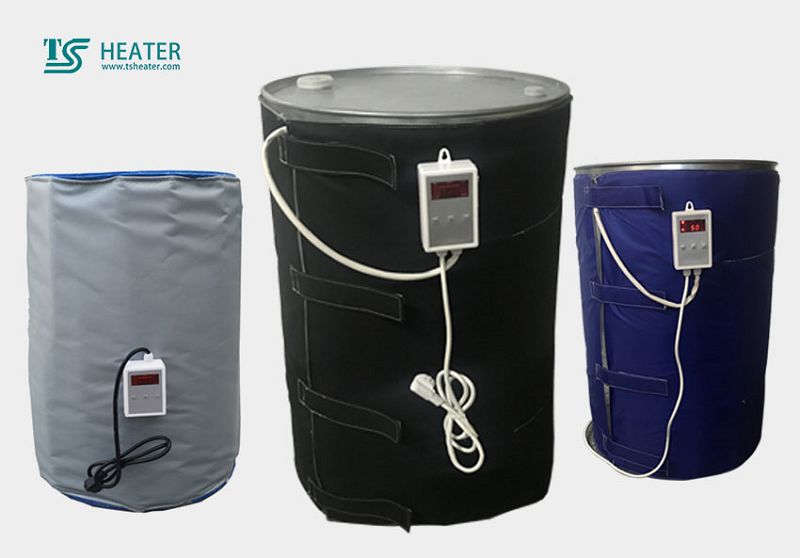

Plastic Drum Heater

Electrical performance of the plastic barrel heater:

1. Power supply voltage: 220V 50HZ

2. Rated power: 100-1500w/m2 (customized according to different requirements of users)

3. Rated current: 0.45A~5.5a

4. Temperature: Controllable temperature: ≤160℃±2℃;

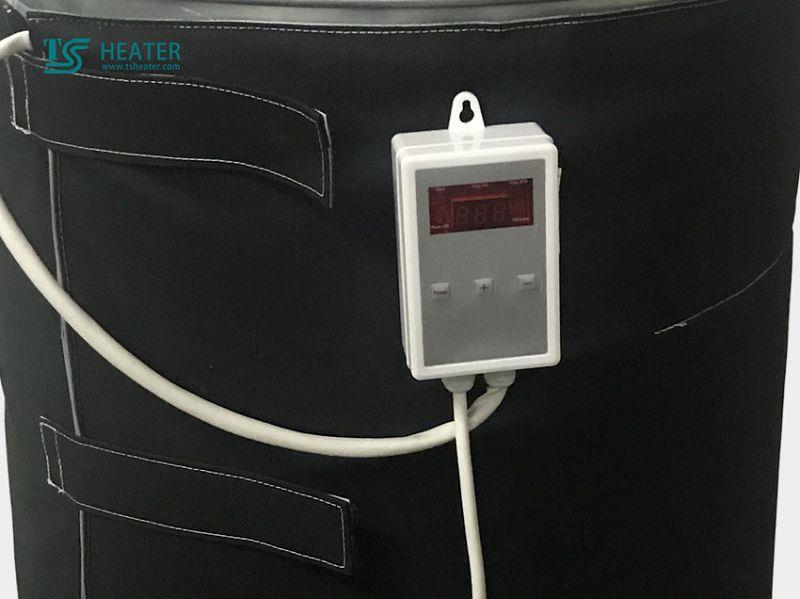

Accessories: Electronic temperature control box (customized according to actual use)

Constant temperature type: 35℃～160℃±5℃ (one grade per 5℃) (customized according to actual use)

5. Heating area: 2200mm×300mm.

(Customized according to actual use size)

6. Product size: 2500mm×400mm (customized according to actual use size)

The main performance of the plastic barrel heater:

Industrial electric blanket/Industrial electric blanket/Industrial electric blanket

1. Thicken the insulating layer to enhance the effect of heat preservation and heating, and evenly distribute the heating wires to ensure uniformity.

2. High temperature resistant flame-retardant fabric, which effectively strengthens the heating wire.

3. The industrial heating blanket is designed with connection and fixing devices, which can quickly connect the heating area of the extended industrial heating blanket.

4. The heated working surface and the insulating surface should be clearly distinguished. The heated surface should be able to withstand a temperature of 150°C.

5. Add a temperature control device inside the blanket to prevent inappropriate use of the heated blanket.

6. The temperature control probe and the hot wire are output separately, the wire length is 3 meters (electronic temperature control type).

7. Four temperature detection probes Pt100 (electronic temperature control).

specification:

Description of plastic barrel heater:

55 gallon
Full Coverage
Plastic Drum Heater
Single Zone 240V

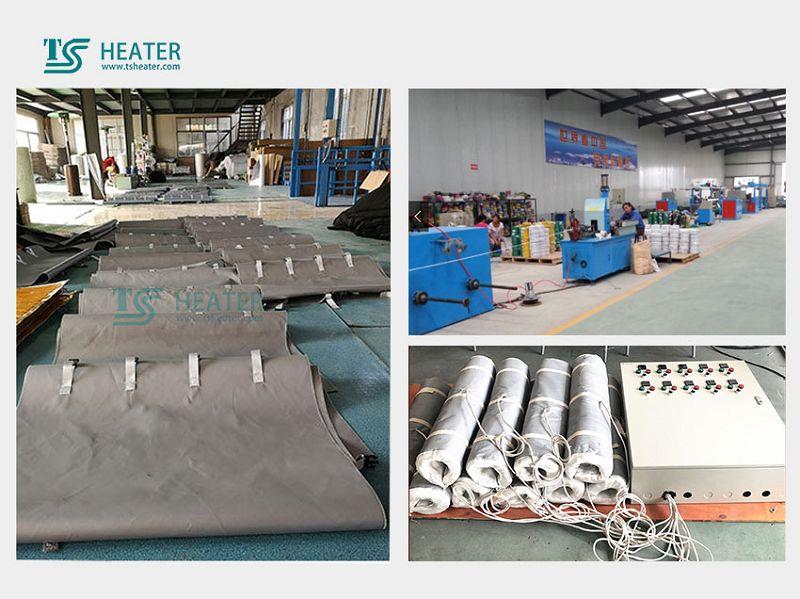

Factory show:
