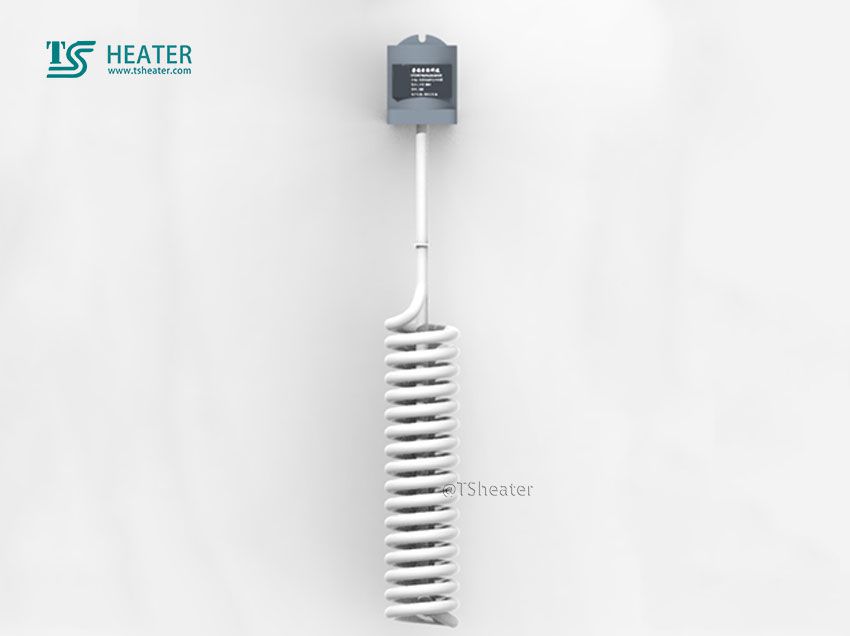

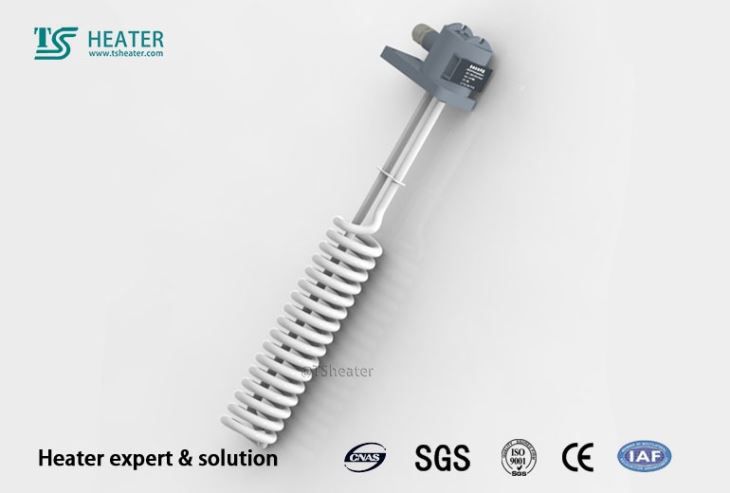

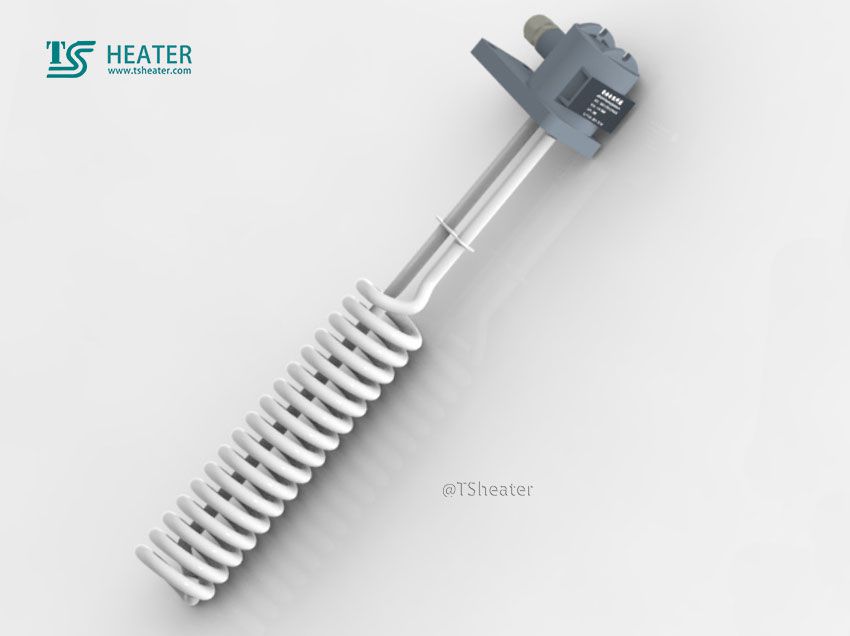

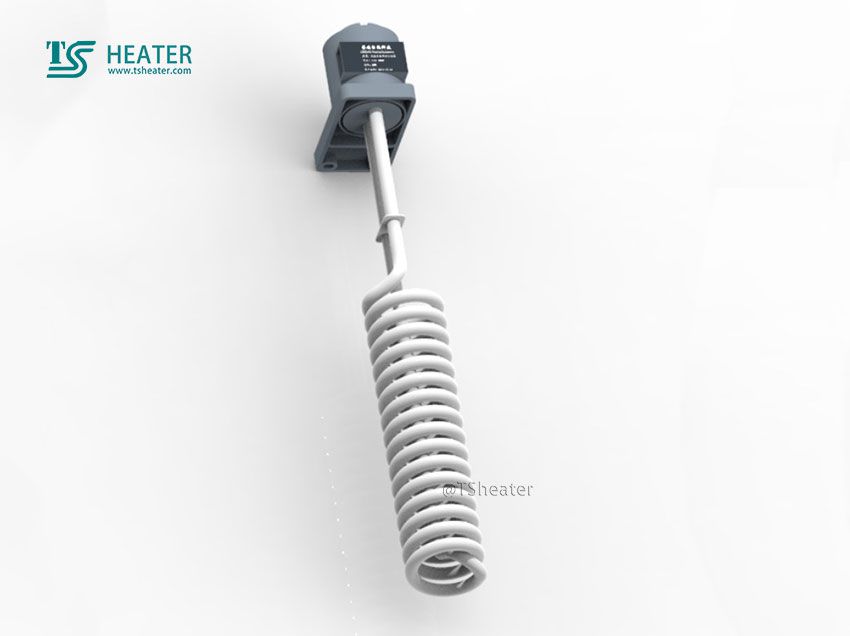

Teflon(PTFE) Electric Heater，Description of explosion-proof teflon electric heating tube 1. It has strong chemical corrosion resistance and can be used for heating highly destructive liquid. 2. The heating tube in the teflon electric heater is made of special metal with the coat of PFA. 3. Teflon electric heater can be adapted to PT-100, temperature fuse and temperature switch. 4. During use, the surface of teflon tube is not allowed to be bruised or scratched.
Teflon(PTFE) Electric Heater
PTFE heating tube/heating tube are designed with low surface power of 1.5w /Cm2 to ensure the service life of the heating tube/heating tube;
PFA/fluoroplastic tubes made from American dupont materials are corrosion-resistant and suitable for heating high-concentration acidic and alkaline liquids.
The external sheath can effectively prevent the electrical heat pipe from being damaged by the workpiece or the surface of the fluoroplastic by accident during operation.
Good stability and insulation performance, put an end to the electroplating plant often encountered heat pipe/heat pipe leakage, short circuit phenomenon;
Teflon(PTFE) Electric Heater
All the hanyun heating tube/heating tube wires are more than the national standard requirements of the wire, to ensure that the heating tube/heating tube long time working wire does not heat, to prevent the fire caused by wire load this serious safety problem;
Hanyun electrical heat pipe/heat pipe products factory test: power test, insulation test, life test;
Hanyun type fluoroplastic heating pipe/heating pipe has passed the CE certification of eu.
All heating tubes/heating tubes can use over temperature protection switch to protect the heater and equipment.
Voltage: single-phase 110V,220V,380V
Power: 0.5 KW to 120 KW.

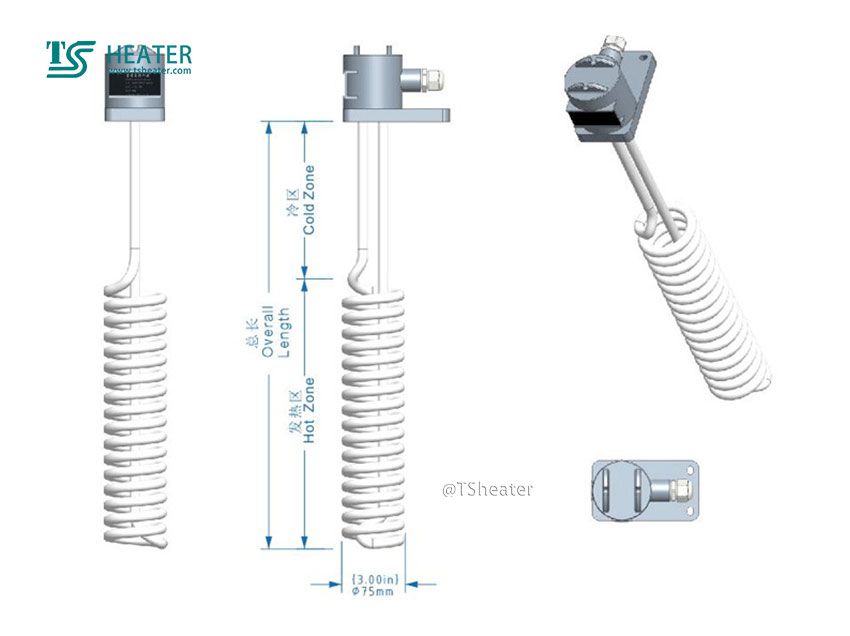

External dimension, installation method, voltage and power can be made according to customer requirements.
Teflon(PTFE) Electric Heater
