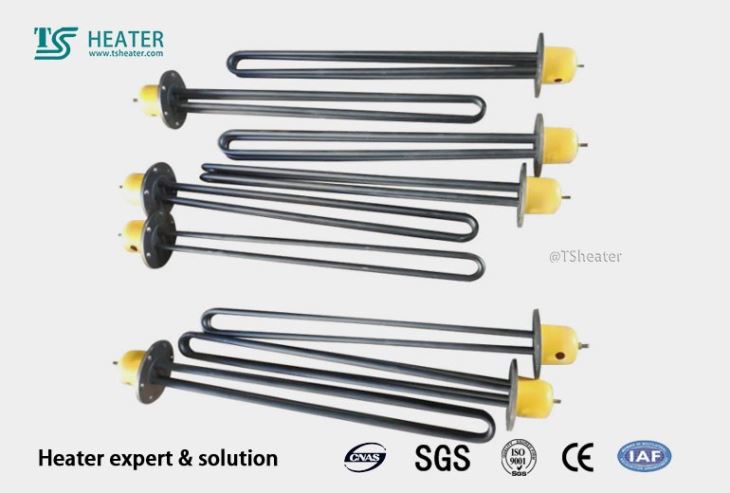

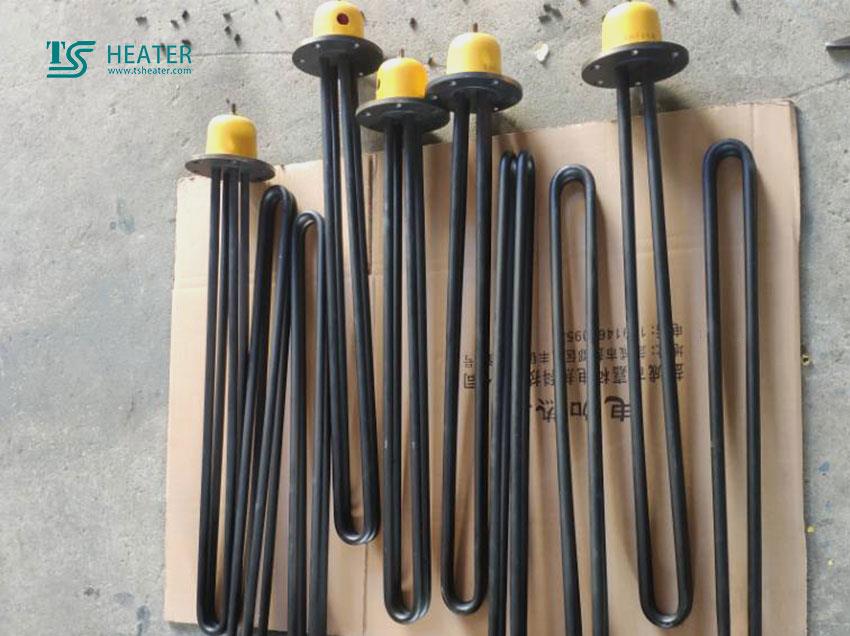

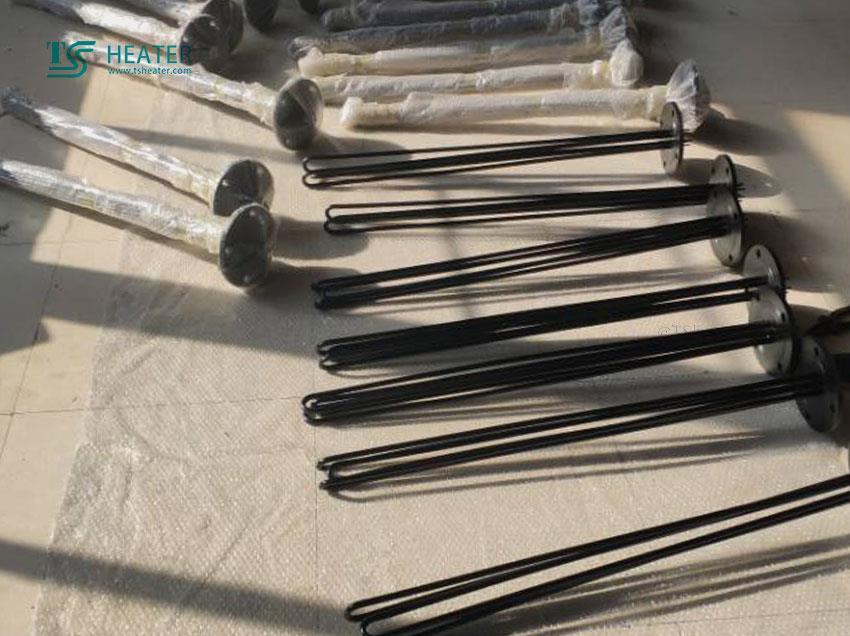

Tubular Electric Heater

Tubular Electric Heater

Designed for natural convection and forced convection space heating, our finned air range

Heaters are suitable for areas with increased heat transfer area and higher wattage Required.

With rugged construction, these finned heaters can be used for a variety of purposes The industrial environment.Finned tube heater for forced convection heating,Air or gas heating system.Industrial electric finned tube air heater can be customized according to your specific application needs.

Tubular Electric Heater

• dimensions of various diameters

• steel or stainless steel tubes or fins

Advantages of finned tube heater with high quality, high standard and low price:

• increase heat transfer surface area

• operational safety

• durable

• build solid

• easy to maintain

• secondary insulation bushing can be provided

CE certified TY flange heater for easy installation and maintenance.

Used to heat liquids and gases

Tanks and pressure vessels, flanged immersion heaters are ideal for applications requiring higher kilowatts.

TY flange heater is made by brazing or welding tube elements to the flange.

performance

Tubular Electric Heater

Power density up to 100 W/in 2 (15.5 W/cm 2)

Up to 3 megawatts

CE component identification up to 600VAC

Alloy 800/840 sheath temperature up to 1600°F(870°C)

316 stainless steel sheath temperature up to 1200°F(650°C)

304 stainless steel sheath temperature up to 1200°F(650°C)

Steel sheath temperature up to 750°F(400°C)

Power and voltage

TY usually provides 240 to 480VAC and watt flanged immersion heaters

From 150 watts to 1 megawatt.

TY will produce the highest voltage heater if needed

Over one megawatt of 600VAC and watts

Active configuration, please contact us.

Sheath material

Alloy 800 840;

SS 304, 316, 316L, 321;

titanium

Standard flange material

SS304, 316
