Hot Water Tank Heating Element
Describe
The flanged tubular heating element of 240v 5000w hot water tank also has electrical properties.
Although tubular heating elements are technically mature and widely used, innovative solutions exist in many applications.
The screws in tubular heating elements are standardized and suitable for liquids such as water.
Tubular heating elements are easy to install, control and maintain. Unique design can meet your requirements.
For corrosive environments, titanium or tubular heating elements with teflon sleeves may be used.
specification
Hot Water Tank Heating Element

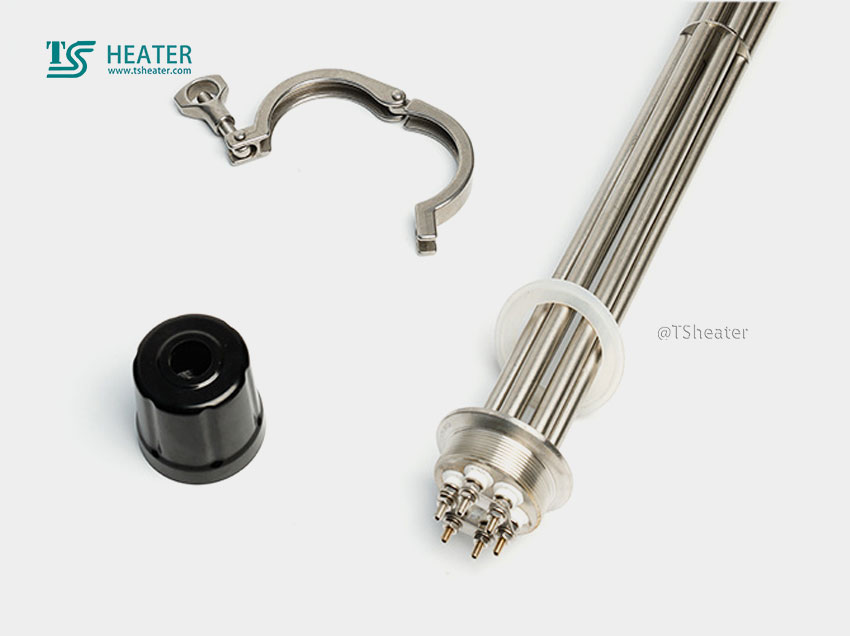

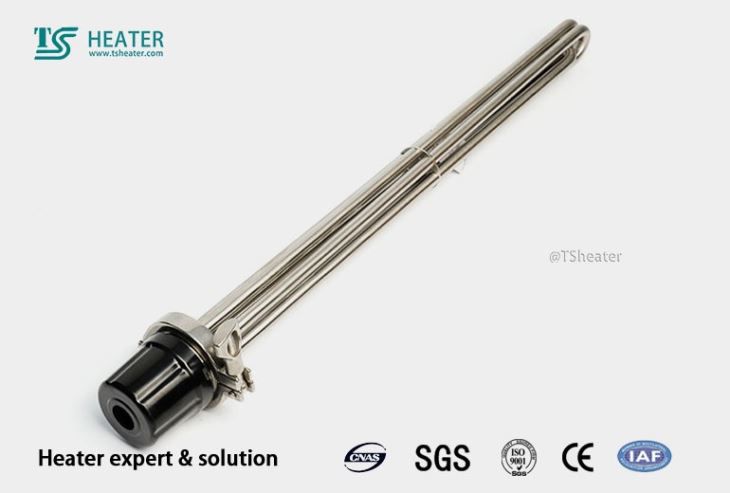

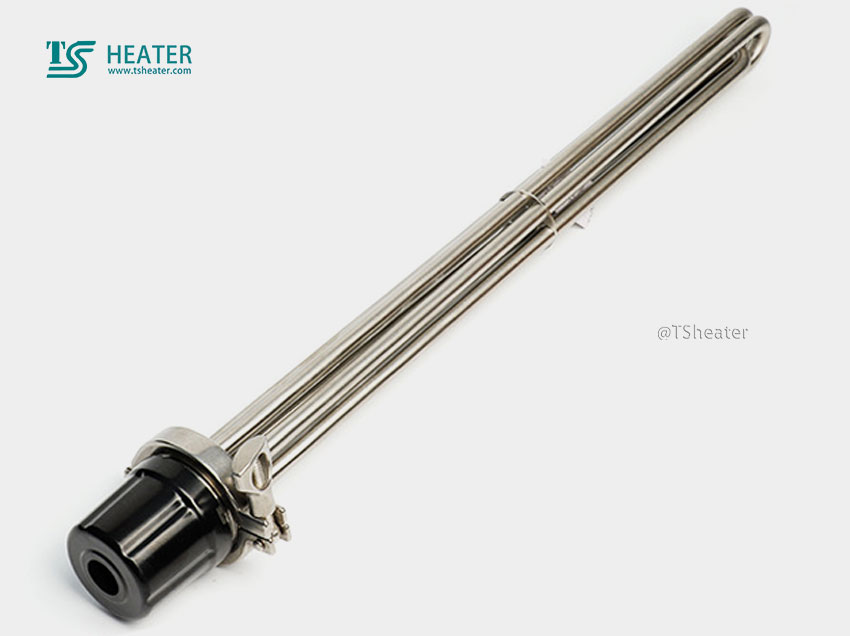

1.Name: flange type heating element of 240v 5000w hot water tank
2.Tube diameter: Φ 8 mm - 16 mm Φ
3.Pipe :SS201, SS304, SS316, INCOLOY800, etc
4.Insulation material: adopted
5.Conductor material: ni-cr alloy resistance wire
6.Wattage density: high/medium/low (5-25w/cm2)

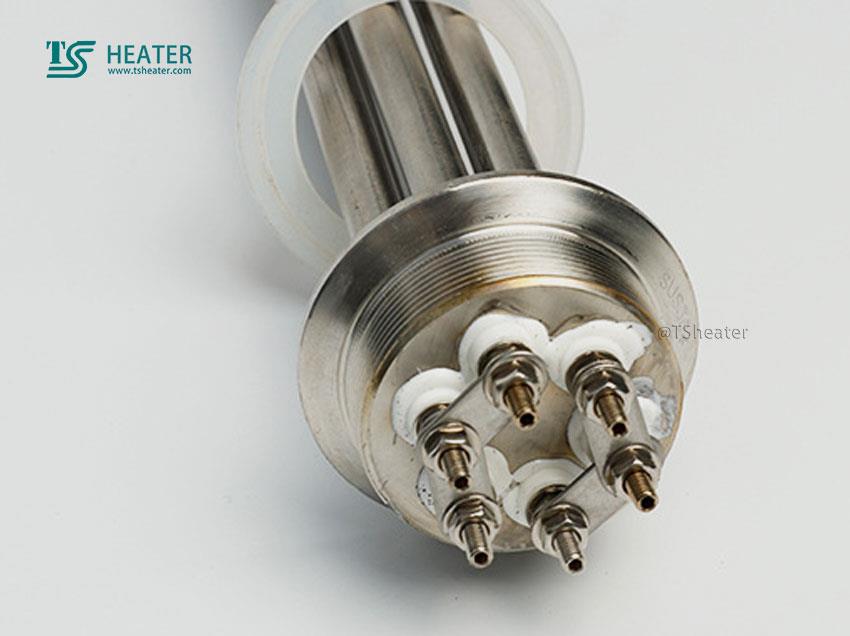

7.Lead connection options: threaded stud terminal or lead
8.Hi-pot test :1500V/S min
Insulation resistance: 20 m Ω minutes
10.Leakage current: maximum 0.75ma
Hot Water Tank Heating Element
