The advantages of Alumina metallic ceramic heating element are oxidation resistance, no fear of acid or alkali corrosion, all materials are lead-free, environmentally friendly, and non-toxic, and the ignition operation can reach 100,000 times without damage

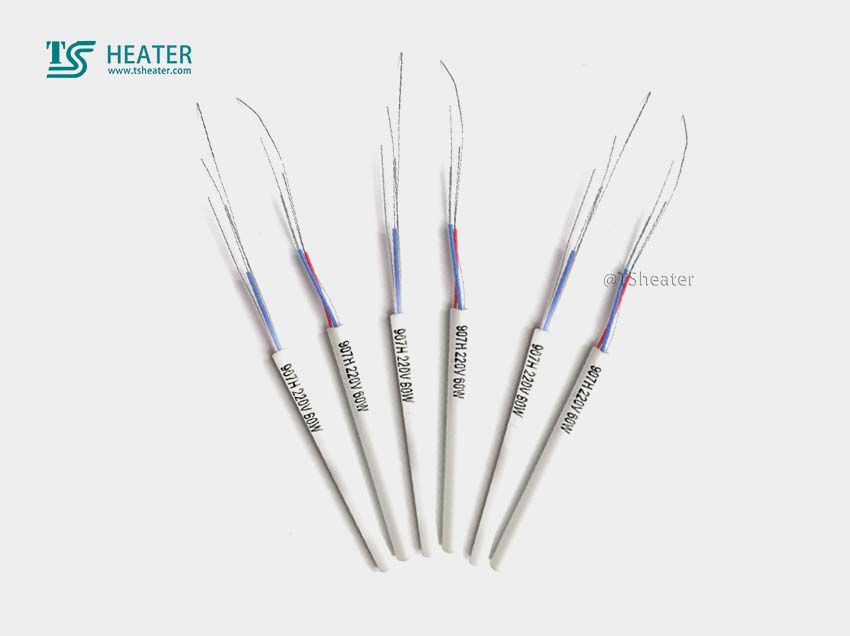

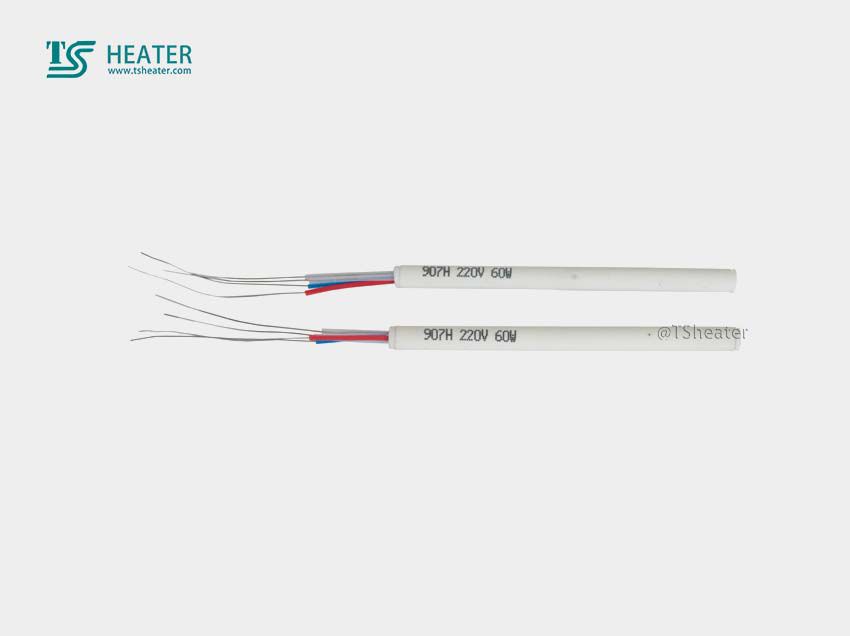

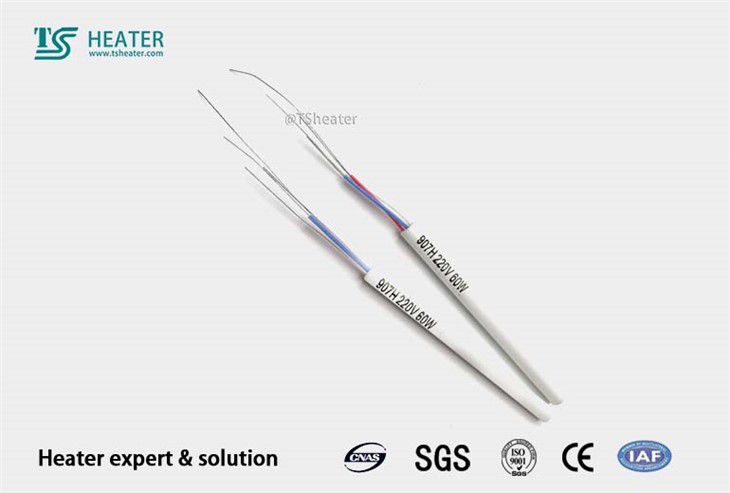

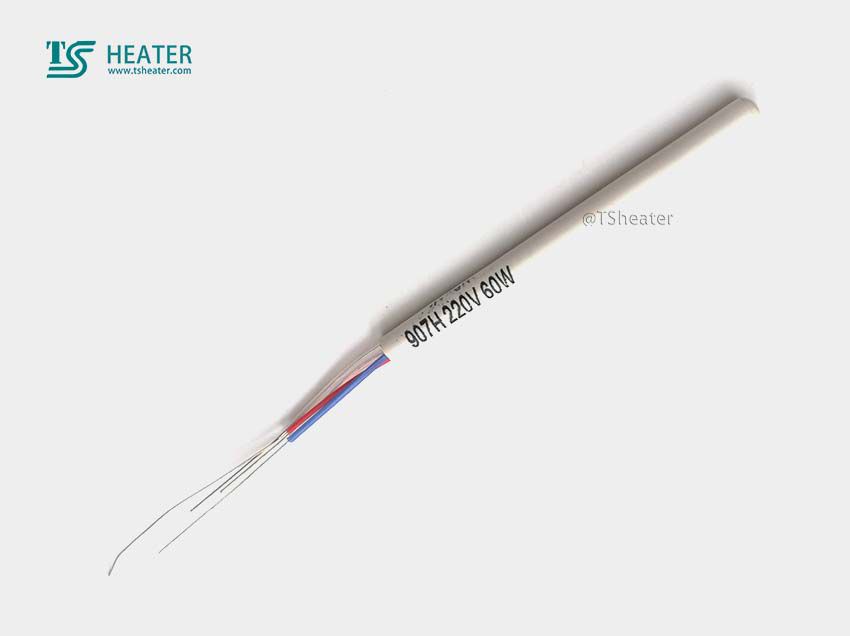

Model Number: 907H220V60W
Product Name: MCH ceramic heating tube/electric heating tube/heating tube/ceramic igniter/biomass pellet grill ignition rod/Cartridge Heater/Alumina metallic ceramic heating element
Voltage: 220V (specifically select according to needs, can be customized)
Cold resistance: >100 (selected according to specific needs, can be customized)
Power: 60W (specifically select according to needs, can be customized)
Leakage current: 1mA or less
Electrostatic capacity: 20PF or less
Electric strength: 3750V for 1 minute

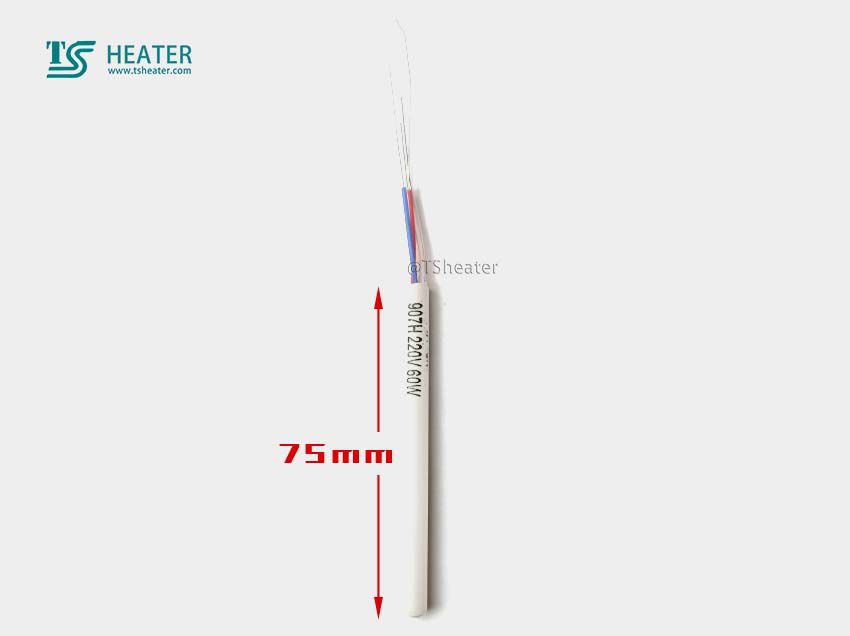

Dimension(mm)Φ10.5*Φ6.0*75mm
Working life: 50000 hours
Main materials: 96% alumina ceramics, metallic tungsten, molybdenum, nickel, etc.
Characteristic of Alumina metallic ceramic heating element
1. Small size, high power density, thermal efficiency as high as 98.6%
2. Low power loss, fast heating speed, fast temperature recovery speed, the heat immediately after power on, no need to wait.
3. Wide range of uses, acid and alkali resistance, corrosion resistance, dry burning resistance, solid, gas, and liquid general purpose.
4. No pollution, RoHS compliant
5. The surface is not electrified, safe, and reliable.
6. Improve the ceramic formula to make the porcelain body stronger
7. Good temperature control performance, no temperature runaway phenomenon occurs within 500℃
8. Linear stability, can achieve precise temperature control
9. Good insulation performance, safe to use
10. The product has a protective layer and mature craftsmanship to increase the lifespan.
11. The ignition operation can reach 100,000 times without damage
Application field of Alumina metallic ceramic heating element:
1: Daily life,
2: Industrial equipment,
3: Household appliances products
4: Igniter
5: Medical products
