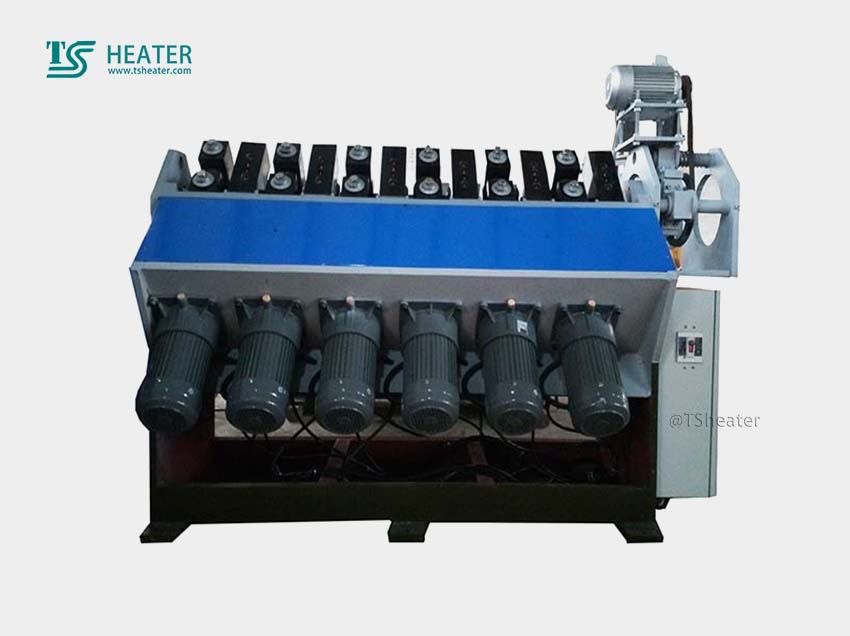

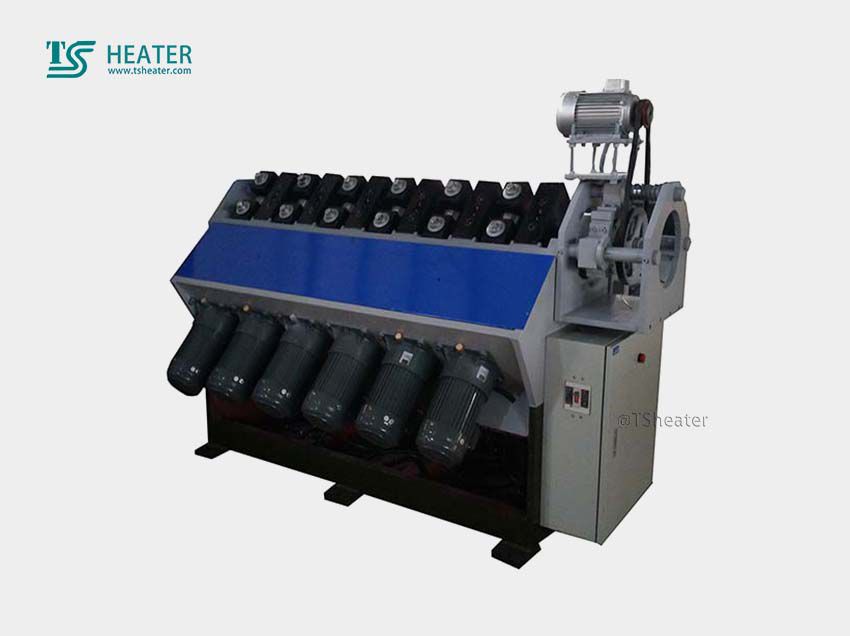

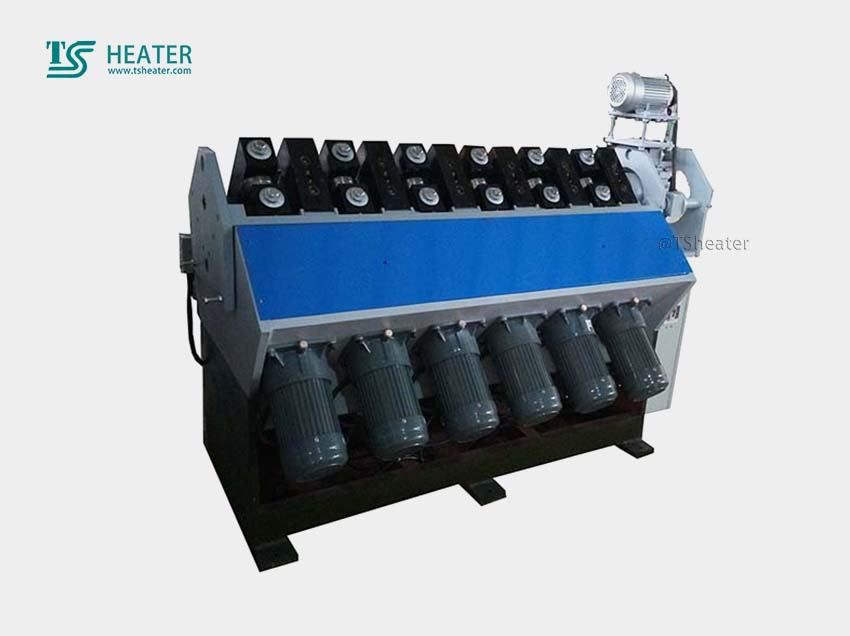

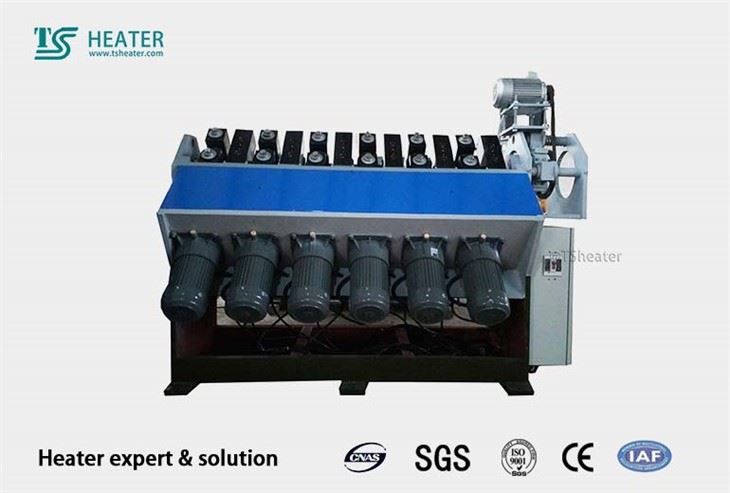

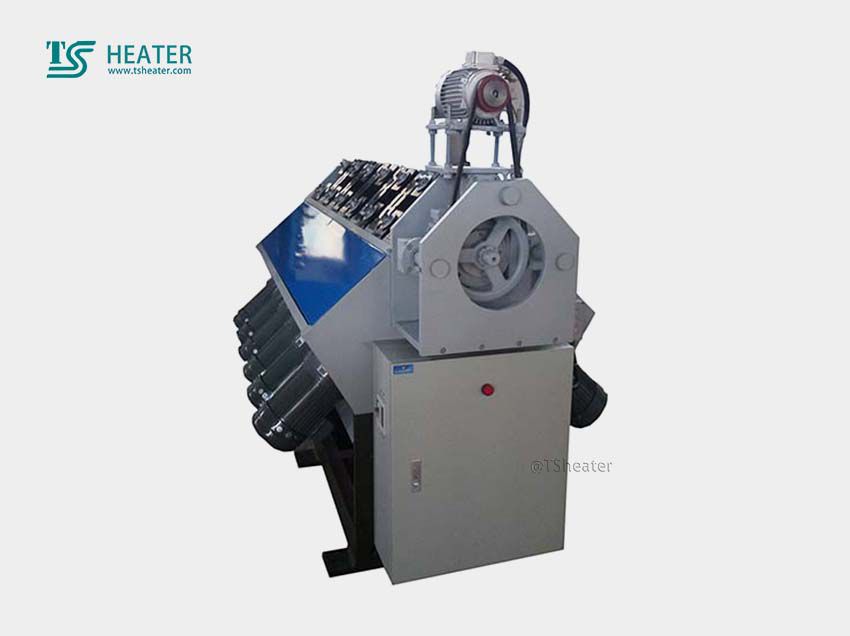

Cartridge Heater Restoration Machine

Cartridge Heater Restoration Machine

Cartridge heater reduction machines are generally used to reduce short heating elements. During the period of reducing short heaters, this process is very difficult and inefficient. The cartridge heater reduction machine covers the reduction of short-circuit heater filling and increases the reduction efficiency.

Description

Product: Cartridge heater restoration machine

Number: D12A cartridge heater restoration machine

Function: Reduce the diameter of the heater and increase the density of MGO powder


Features: low power and low noise

Shrinkage range: 4-9.5mm

Pipe material: copper, aluminum, iron, stainless steel, etc.;

Minimum length: 20mm

Contraction speed: uniform speed, non-uniform speed (can be customized).

High reduction efficiency: The machine can mass-produce cartridge heaters.

Roller: hard alloy roller or Cr12Mor roller (changing different molds can reduce the related heaters of different diameters.)


Application:

Short cartridge heaters, such as short cartridge heaters for automobiles.


Information for ordering cartridge heater restoration machine:

Reduce the pipe diameter before and after, such as Φ8-6.6mm

Reduce the length before

Power supply (for example, 1 phase in 220v, 3 phase in 380v, 50hz)


Cartridge heater reduction machines are generally used to reduce short heating elements.

During the period of reducing short heaters, this process is very difficult and inefficient.

The cartridge heater reduction machine covers the reduction of short-circuit heater filling and increases the reduction efficiency.
