Immersion Heater Coil

Operating principle of coil heater

immersion heater coil

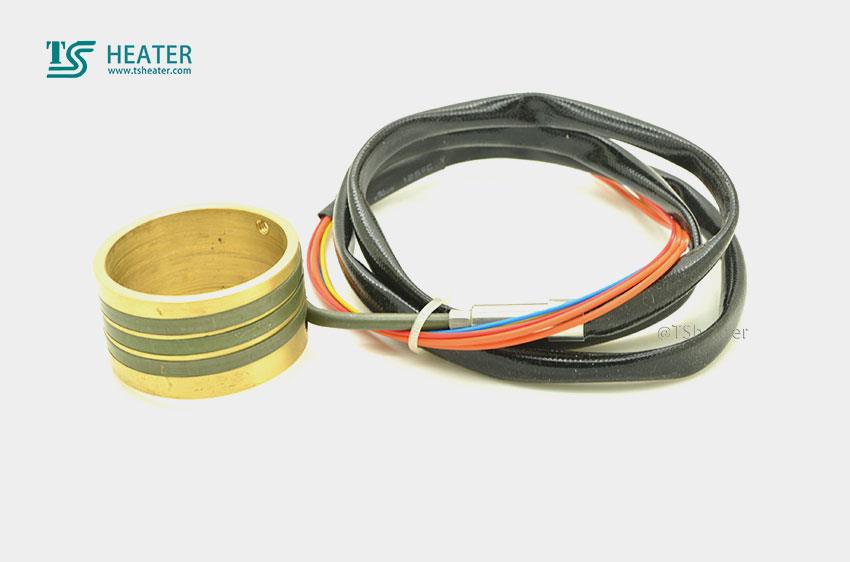

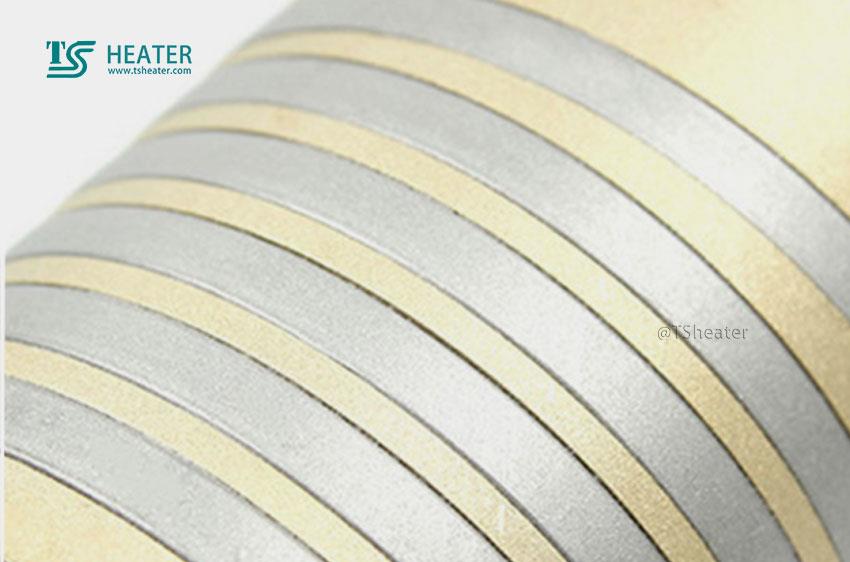

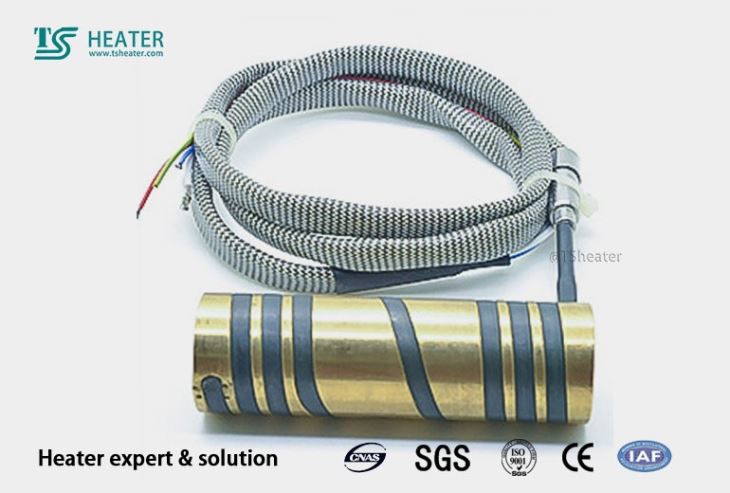

The square coil heater is designed to meet standards, with accurate installation and profile design to optimize the performance of the nozzle and other supporting components.They accommodate type "J" or "K" thermocouples that can be placed inside the top or middle of the heater.

immersion heater coil

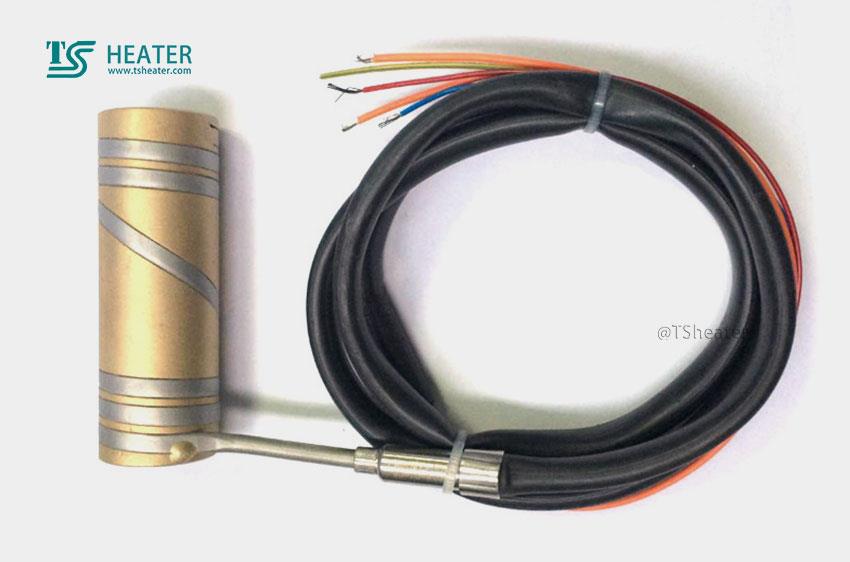

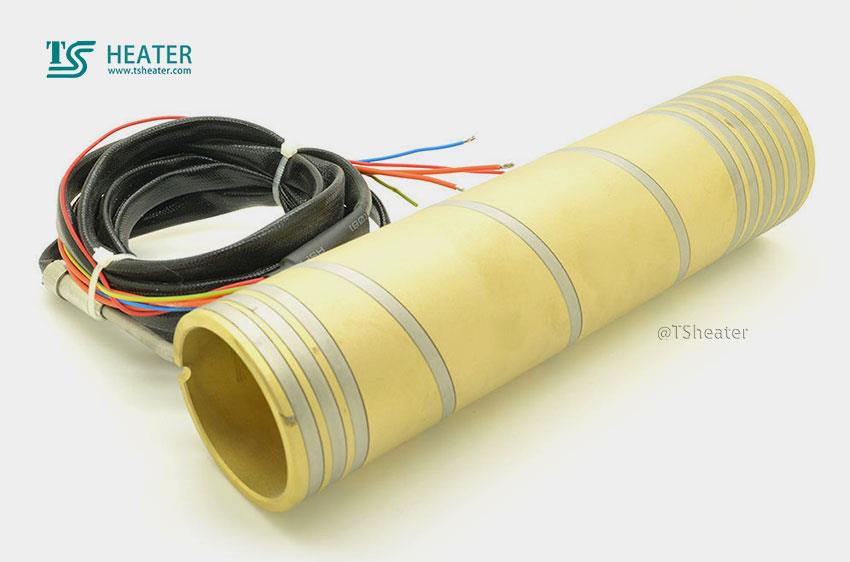

They can also be made with contour or distributed watt configurations.

1.Pitch circle area resistance: Φ 1.6;Φ 1.8;Φ 2.0;Φ 3.0;Φ 3.3;Φ 3.8;Φ 5.0;

2.Rectangular resistor area :1.5*2.1;1.7 * 3.5;2 * 4.2;2.2 * 4.2;2.7 * 4.5;4.2 * 6.5;

3.Square cross section area :3*3;3.5 * 3.5;4 * 4;

4.Sheath material :SUS304, SUS321

5.Internal resistance wire :Cr20Ni80

6.Maximum surface temperature :750℃

7.Input power :12V to 400V

8.Tolerance :+5% to -10%

9.Insulation resistance of dc 1000 v: 100 m Ω or higher

10.Leakage current :≤ 0.5ma

11.Inner diameter :8 mm ~ 100 mm

12.Thermocouple :K, J, E

13.Lead material: glass fiber, kevlar fiber, telfon fiber, silicone rubber, metal woven, steel wire.Heating element features of industrial coil heater:

1.Imported high purity MGO, excellent thermal conductivity, electrical performance;

2.Suitable for injection mould with high productivity and high requirement;

3.Adopt precision processing equipment and advanced manufacturing technology.

All our hot runner heaters adopt 1050C heat treatment, suitable for forming and bending of various molds.
