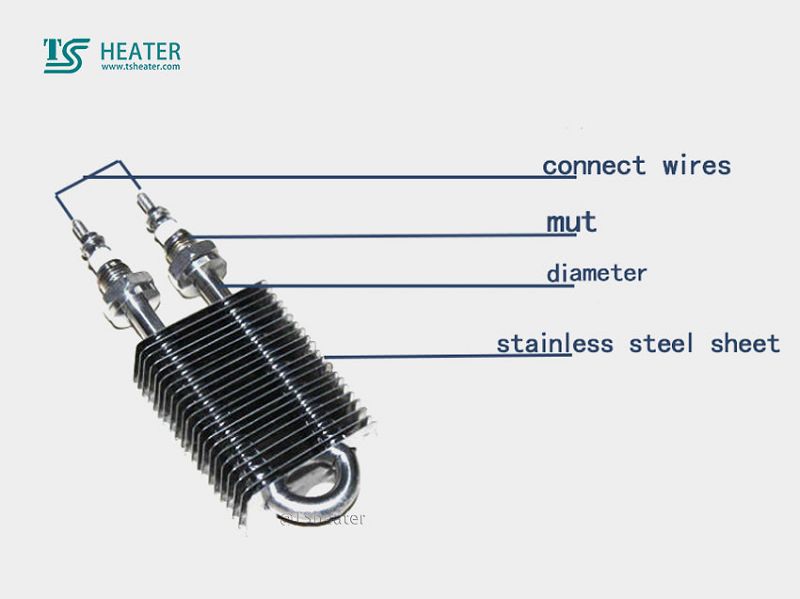

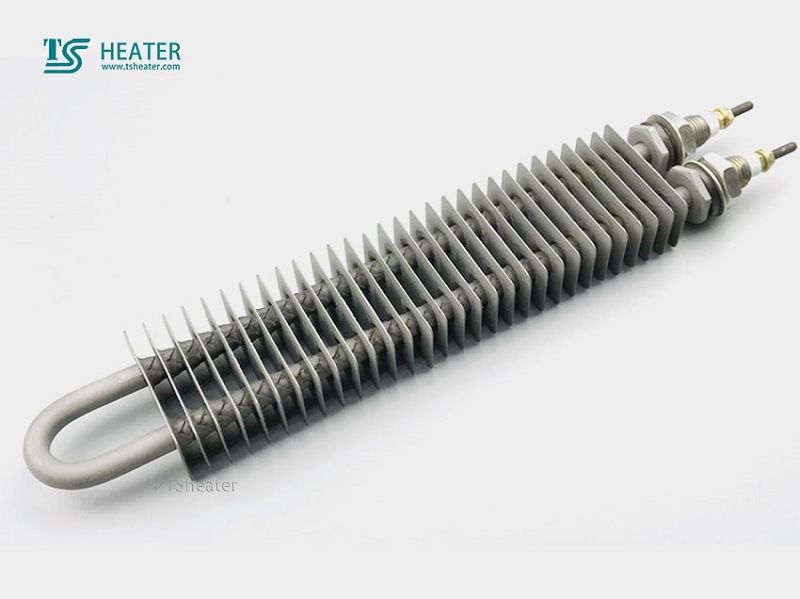

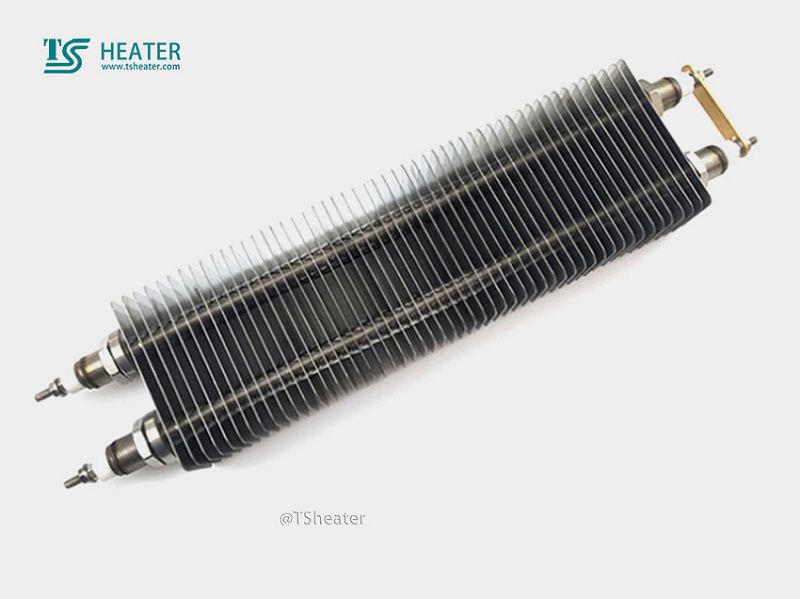

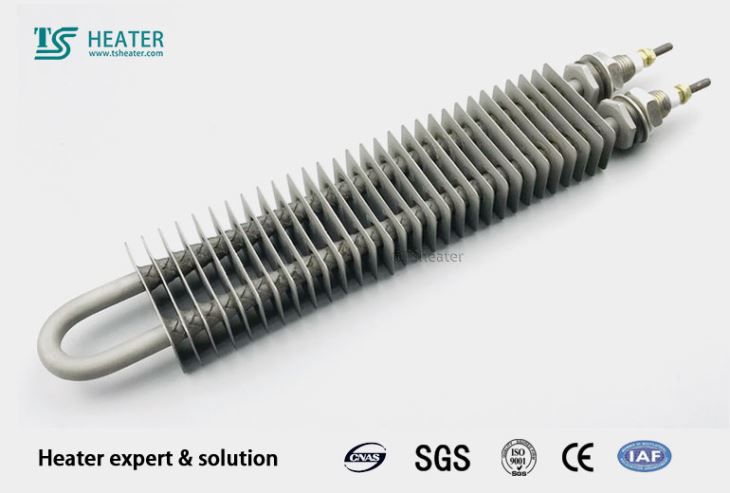

It’s a versatile and economical heat source for a wide variety of industrial and commercial applications.Standard tube diameters are 6mm, 8mm, 10mm, 12mm, 16mm,18mm,20mm etc ,other special sizes are available for Finned strip heater.Finned Strip Heater
Finned Strip Heater
It’s a versatile and economical heat source for a wide variety of industrial and commercial applications.Standard tube diameters are 6mm, 8mm, 10mm, 12mm, 16mm,18mm,20mm etc ,other special sizes are available for Finned strip heater. Depending on the diameter, lengths can be supplied up to 6000mm. Finned Strip Heater
Standard sheath materials are Stainless Steel 304,310s 316 and 321, but special sheath materials may be available based on diameter and size of the element required.Finned Strip Heater
Specification:Finned Strip Heater
No | Specification parameter | Details |
1 | Product name | Heat Exchange Parts Fin Tube Air Heater |
2 | Material | Stainless steel304,316,Incoloy800,840 |
3 | Voltage | 50V -480V |
4 | Power | 100-10Kw |
5 | Diameter | 10mm- 30mm |
6 | Bush | Brass or stainless steel |
7 | Density | 7-25w /cm² |
8 | Resistance wire | 7-25w/cm2 |
9 | Leak current | Cr20Ni80 or Ocr25Al5 |
10 | Insulation resistance | ≤0.5mA |
11 | Wattage tolerance | ≥11GΩ(cold condition) |
12 | Resistance Power | Cold condition:+5%-10% |

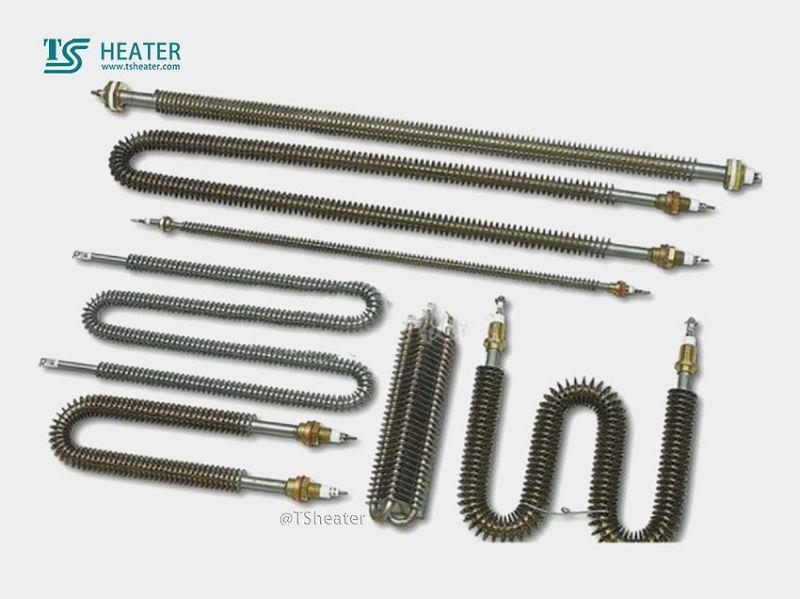

13 | Shape | M shape,U shape,Straight shape |
14 | Warranty | 5years |
Common heaters:
Application: Finned Strip Heater
Semiconductor Chamber Heating ,Water Lead Connection,Wire and Die Bonding
Equipment in Cold Climates or Applications
Medical Devices Equipments
Mold Die and Platen Heating
Packaging Equipment
Test Sample Heating in Gas Chromatography
Heat Transfer Machine etc
