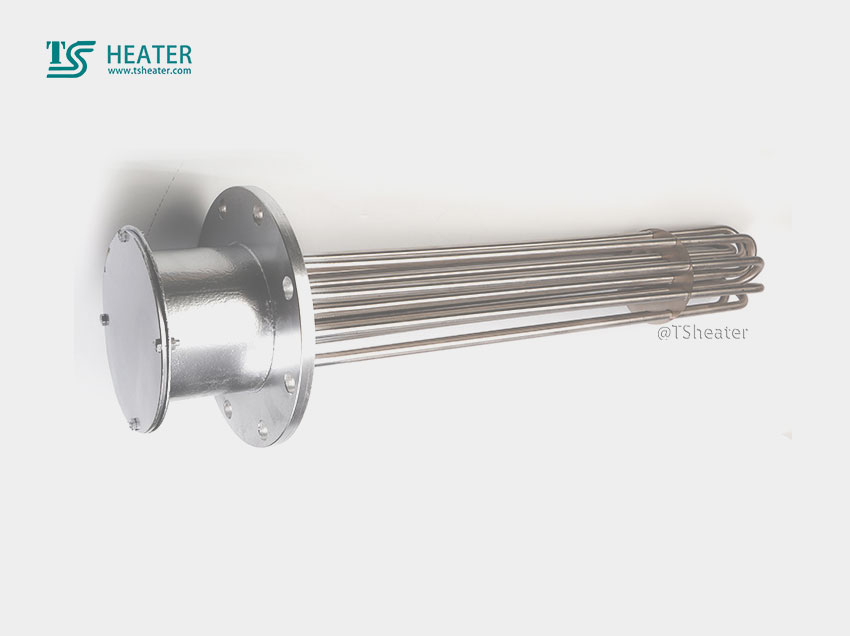

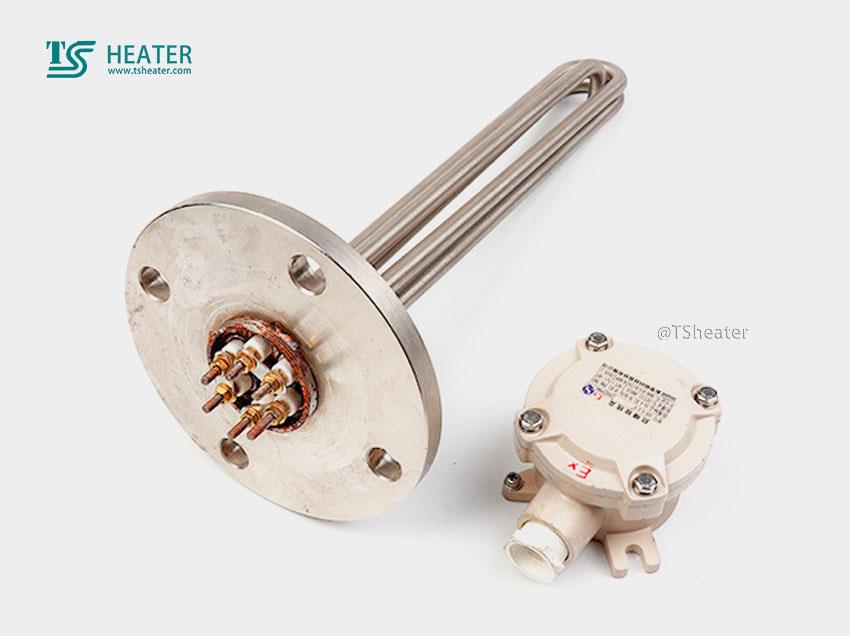

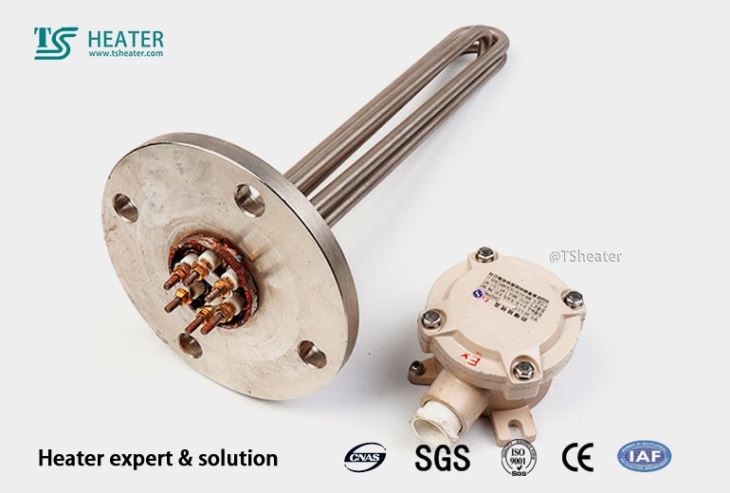

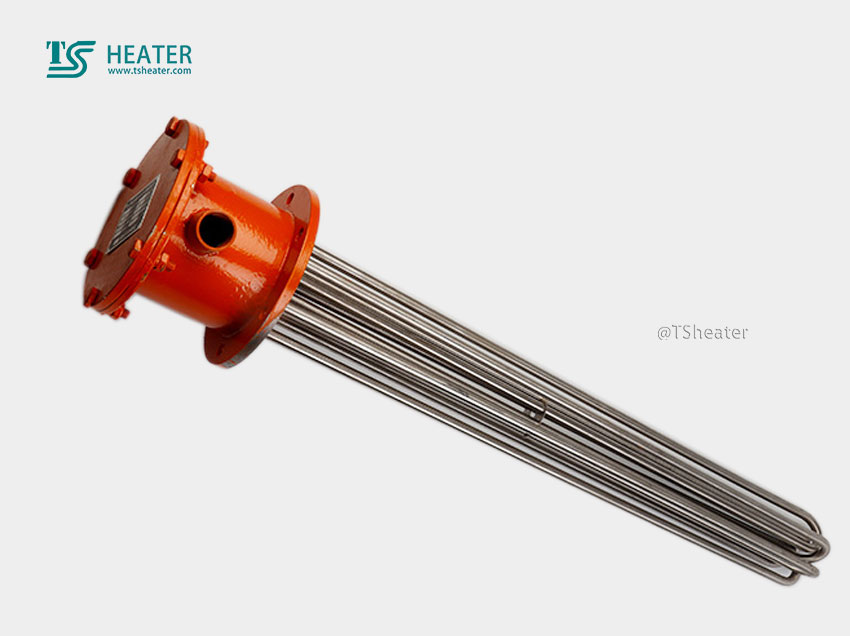

heating element for hot water heater Steam generator heating element High power electric heating tube 304 316 Flanged heater Support customized products.Flanged heater stainless steel cluster flange electric heating tube
Water Heater
Power Source:Electric
Dimension(L*W*H):customized
Weight:3.5kg
Warranty:1 Year
After-sales Service Provided:Free spare parts, Video technical support, Online support
Applicable Industries:Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Condition:New
Place of Origin:guagnzhou, China
Brand Name:ts heater
Voltage:220-440v
Certification:ISO9001
Product name:Heating Element
Application:Industrial Heating Parts
Wattage:customized
Diameter:8.1012mm
Material:SUS304
Insulation material:High-purity Mgo
Resistance wire:Cr20Ni80/CR25AL5
The product description
Tubular heating element is the most commonly used heating method.
Suitable for heating liquids, gases and solids.
Match different materials according to different application environment.
It is economical, malleable and easy to use.
Tubular heating element
Commonly used pipe diameter size is 6mm, 6.5mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm
Common installation methods include pipe thread connection, screw thread fastener connection and pipe flange connection
Heating medium liauid, gas, solid
Tube material iron,SUS304,321,316l, 310 s,Incoloy800 Incoloy840, titanium, ptfe
0 cr25al5 resistance wire materials, 0 cr21al6nb, 0 cr27al7mo2, Cr20Ni80, GH140
The available voltage is 12v-660 v
Power density 1-25w squared/cm
