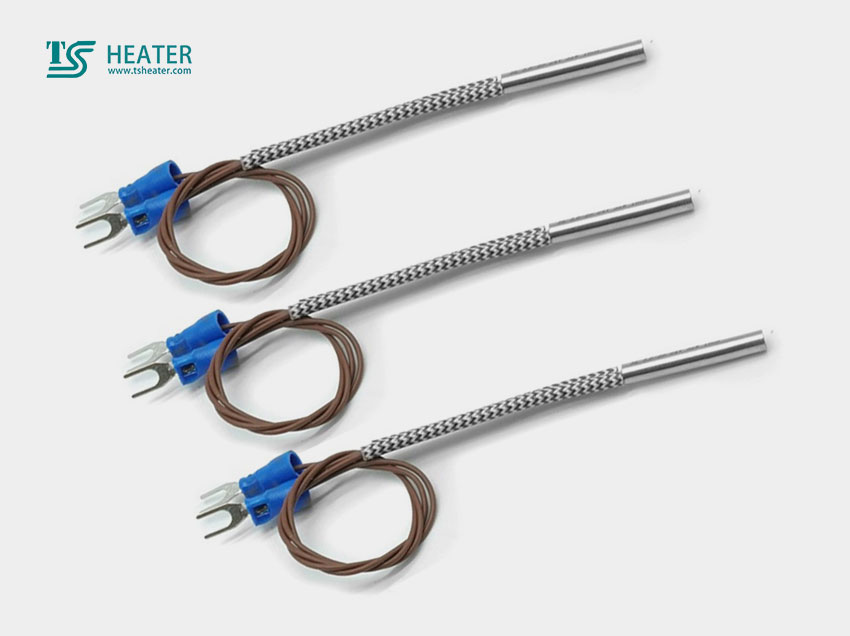

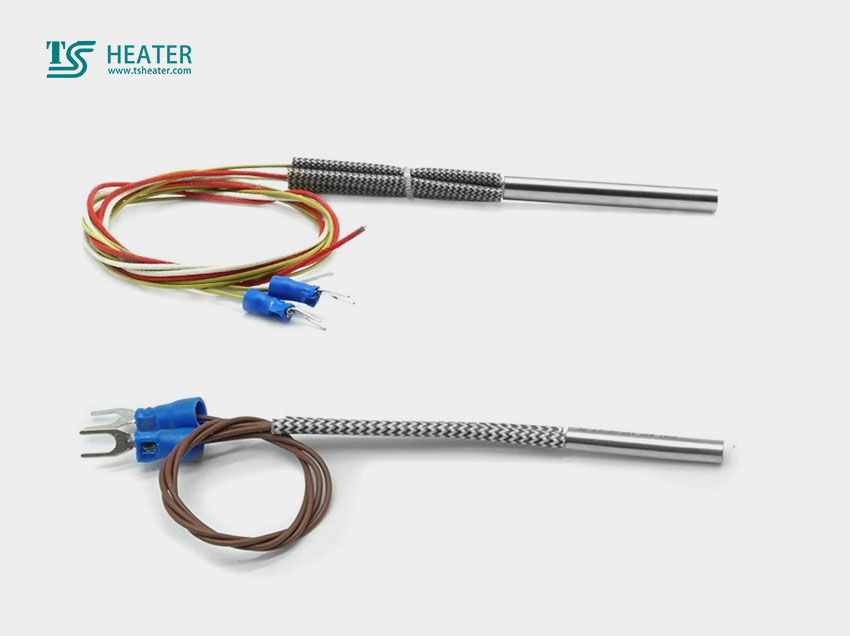

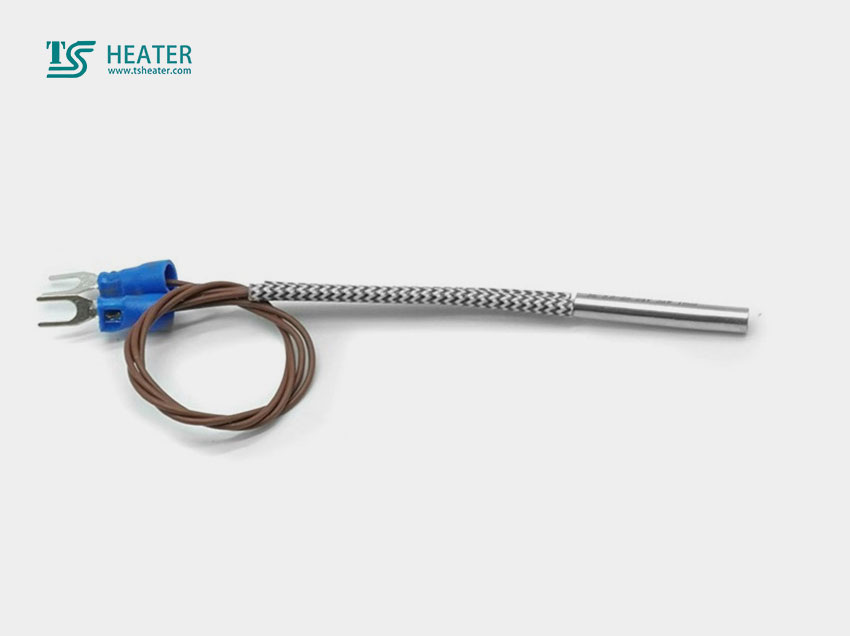

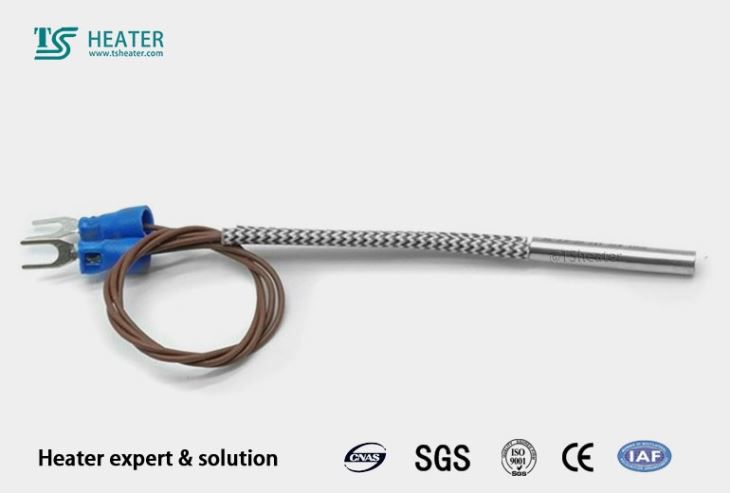

Mini Heating Element

Customized stainless steel sheath torch heater for any application

Mini Heating Element

mini heating element Mini Diameter 2mm 3mm 4mm Cartridge Heater., but other special sizes can be used for 12V electric Cartridge heaters

The length can be supplied up to 3000mm depending on the diameter

Standard sheath materials are stainless steel 201,304,316 and 321, but special sheath materials can be based on the required diameter and size of the element

Mini Heating Element

mini heating element with metal shell, excellent heat transfer performance, uniform temperature, oxidation resistance, corrosion resistance, long service life at high temperature

Flexible lead extensions or other installation options are available for specific applications

Diameter: Φ 2 - Φ4 mm

Tube material :SS201, SS304, SS316, SS321, incoloy800

Insulation material: adopted

Conductor material:NiCr2080

Wattage density: high/medium/low (5-30w /cm2)

Lead connection options: threaded stud terminal or lead

Lead type :300mm standard (teflon/silicone high temperature glass fiber can be used in electric cylinder heater 3D printer)

Mini Heating Element
