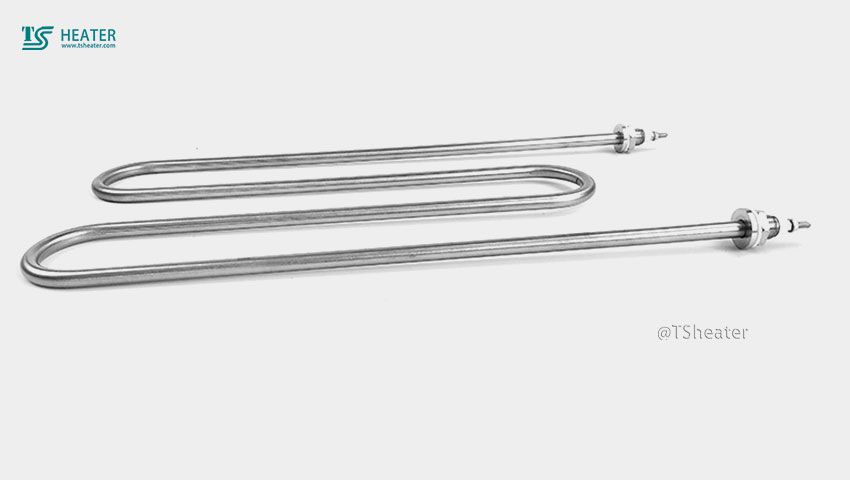

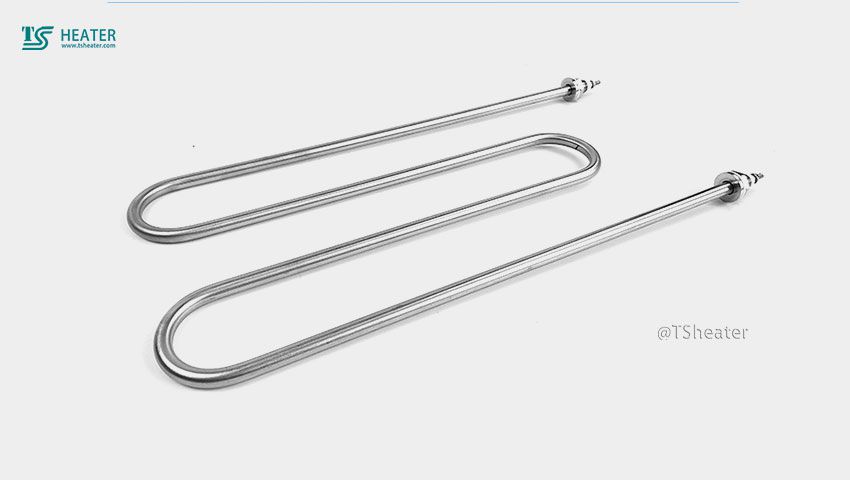

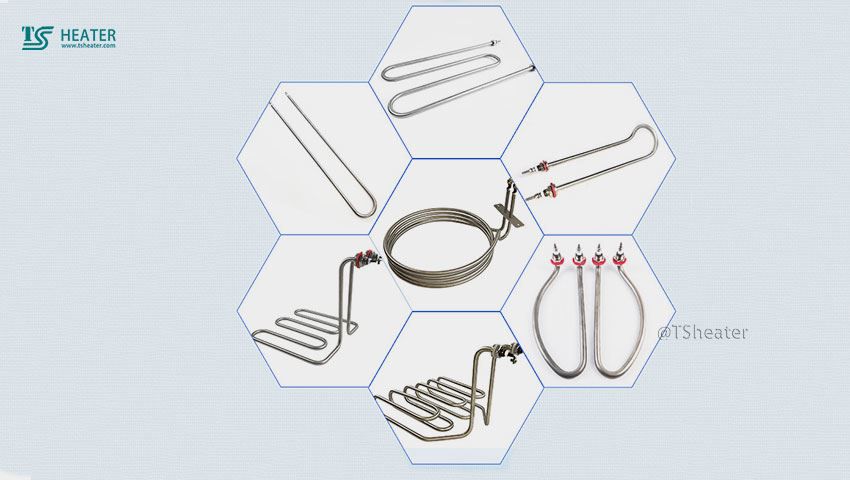

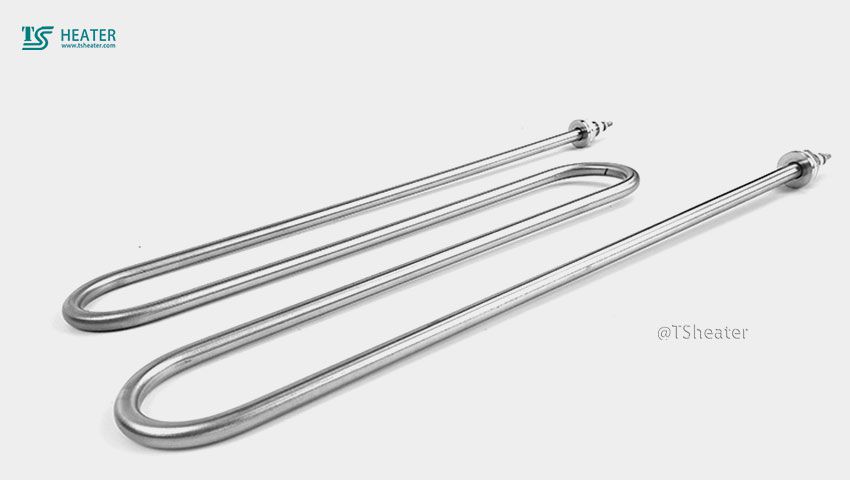

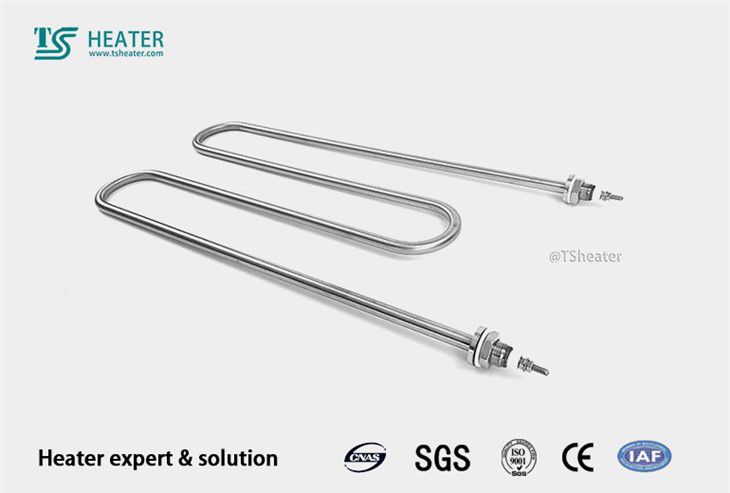

Tube heating element is a customized product of various shapes customized according to customer requirements. These tube heating elements are the result of years of experience in perfecting high power density components that can have a long life at high temperatures.
Description of tube heating element
The tube heating element is a metal tube shell. The alloy wire (nickel-chromium alloy, iron-chromium alloy) that is evenly spirally heated along the central axis of the tube compactly fills its voids and has good magnesia sand heat insulation performance. The two ports of the tube are used Silicone seal. The service life of tube heating element is very long, and the design life is usually over 10,000 hours.
Features:
(1) Can be designed for voltage: 110-380V
(2) Single injection power: 10W-80KW
(3) Material: copper, stainless steel, titanium.
(4) Specifications: various special-shaped electric heating tubes, explosion-proof electric heating tubes.
(5) Customizable: shape, surface, specifications, etc.
New stainless steel electric heating tube ordering instructions:
1) With years of experience in heat treatment and temperature control, we can assist you in designing a heater suitable for your application.
2) The user should provide drawings or samples, as well as product specifications, models, voltages, power supplies, etc.
3) Any shape can be customized.
