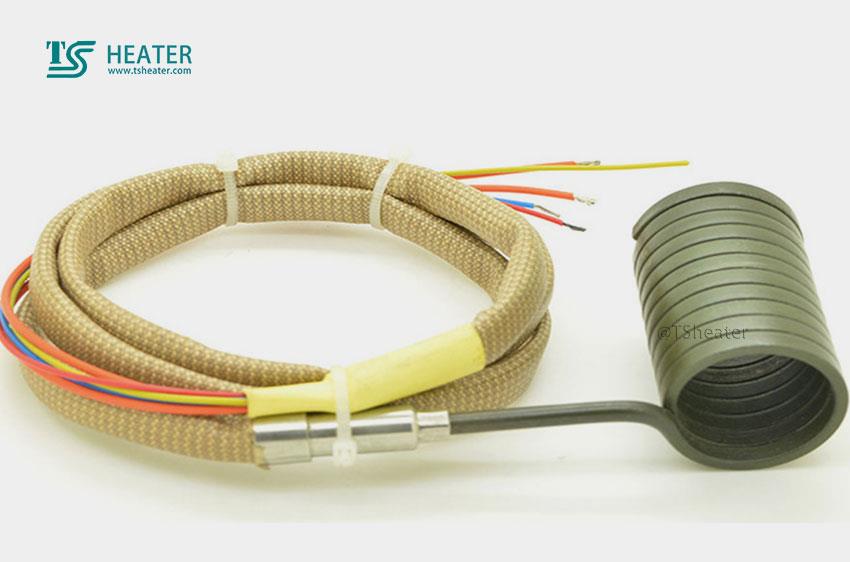

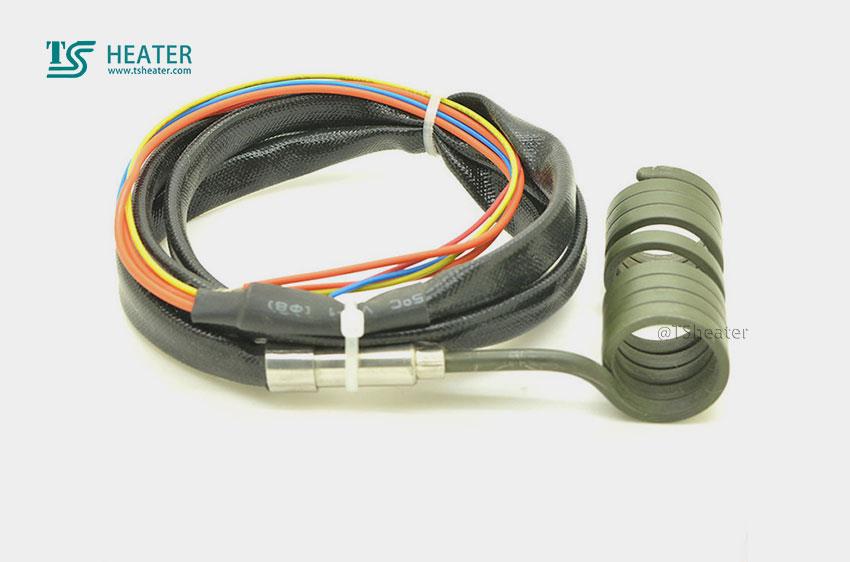

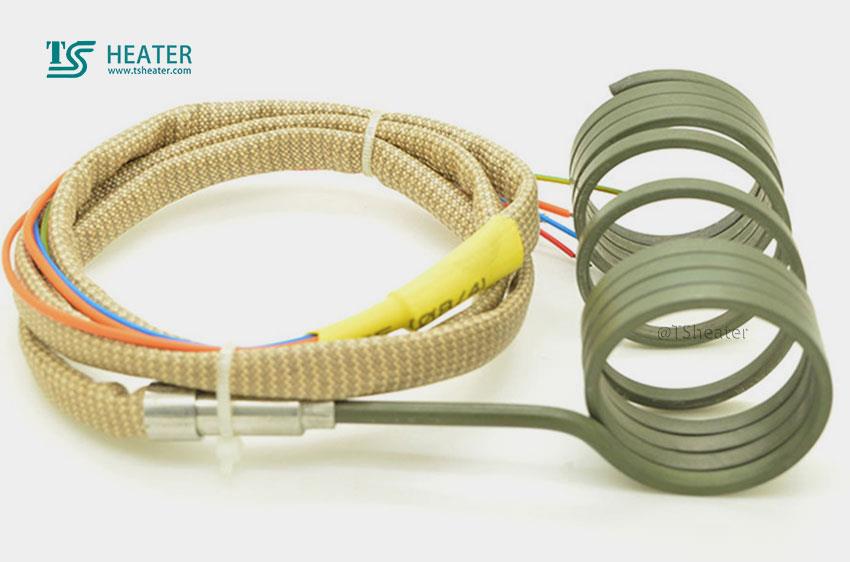

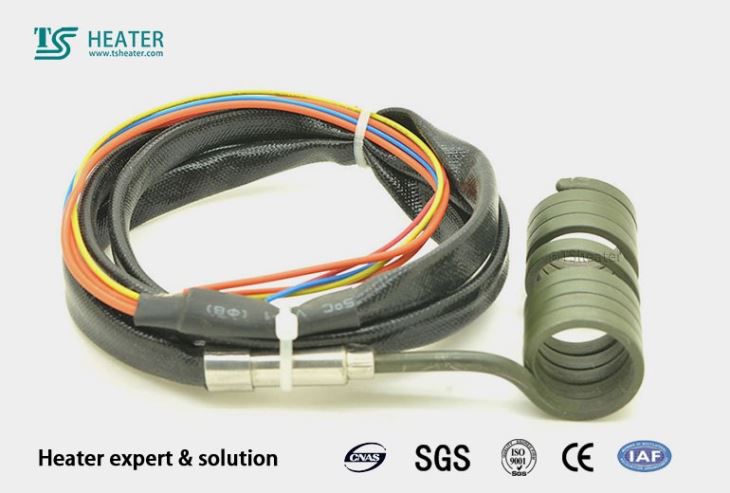

industrial heater coils Hot runner heaters, also known as cable heaters, can be made in a variety of shapes according to their various applications.Industrial Heater Coils Typically, hot runner heaters are configured for small diameters and high performance nozzle heaters are fully annealed.Industrial Heater Coils
Industrial Heater Coils/Hot runner heaters are used for injection molding machine nozzles and runner liners to provide an optional distributed power model for 360 ° heat also available.Hot runner heaters can also be used for cylindrical heaters where holes of irregular size are found.During packaging installation, a straight, round cable heater may wind through the seal strip.
Item description Spring coil element，Industrial Heater Coils
Main application Mainly used in injection moulding machine, hot runner nozzles and bushings, packaging machine, hot runner injection moulds, injection & blow moulding machine nozzles, hot runner manifolds etc.

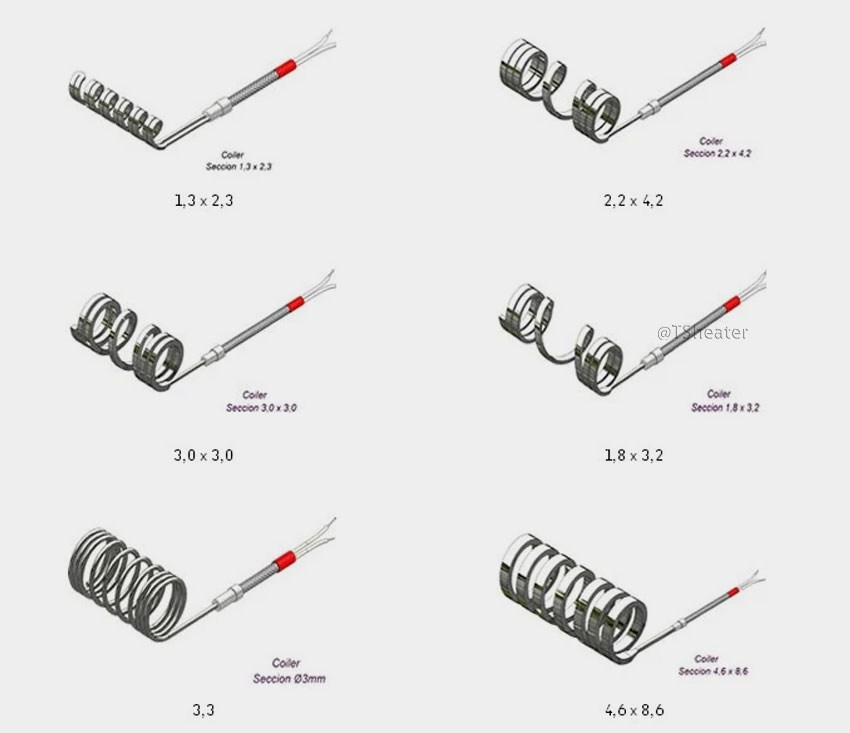

Sectional area: 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3X3.3, 3.5X3.5
Sheath material SS304
Insulation material: High pure MgO
Resistance wire :Cr20Ni80
Max temperature:700degrees
Without Thermocouple: J/K Type
Sheath length 500/1000/1200/1500/2000mm
Available Sheath Material Stainless steel braided/Fiberglass braided/Silicone sheath/Armor sheath/Dual terminal/Dual terminal teflon insulated.
industrial heater coils
