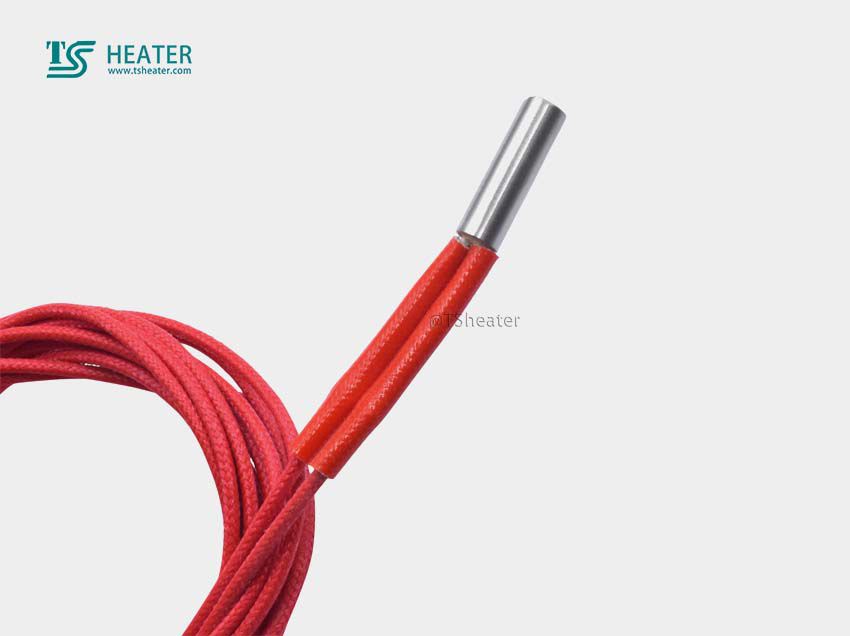

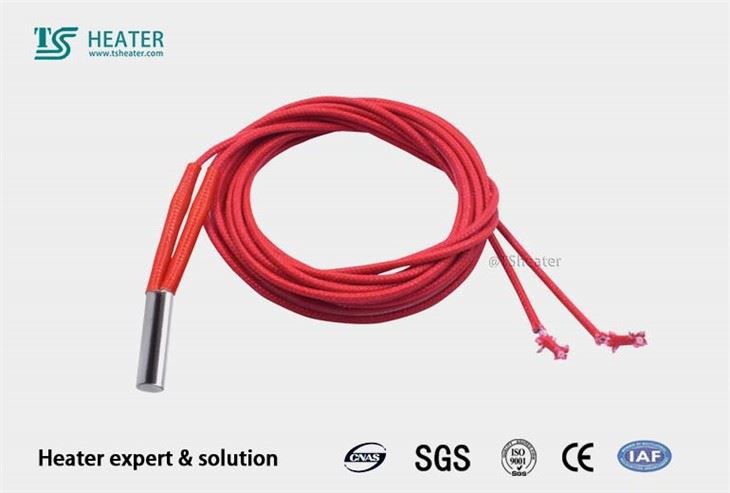

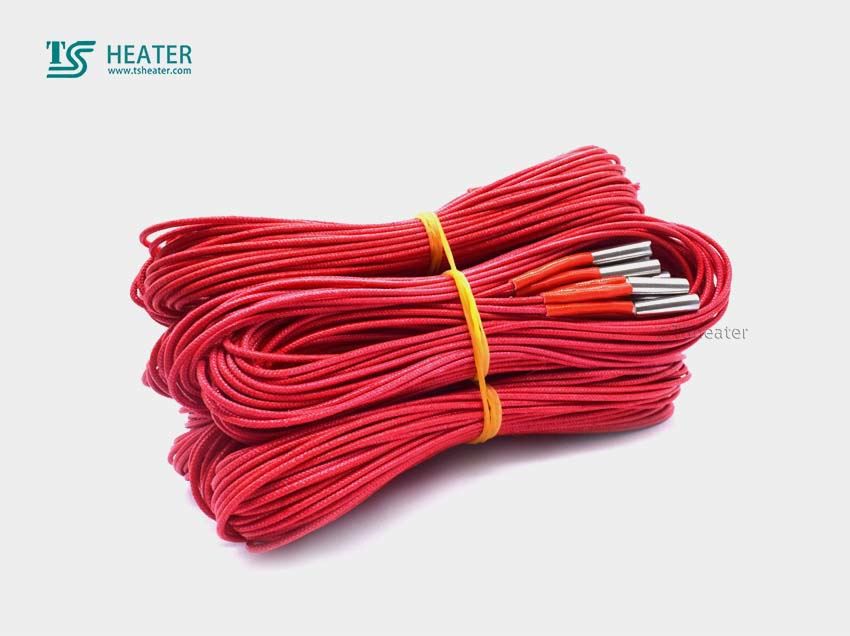

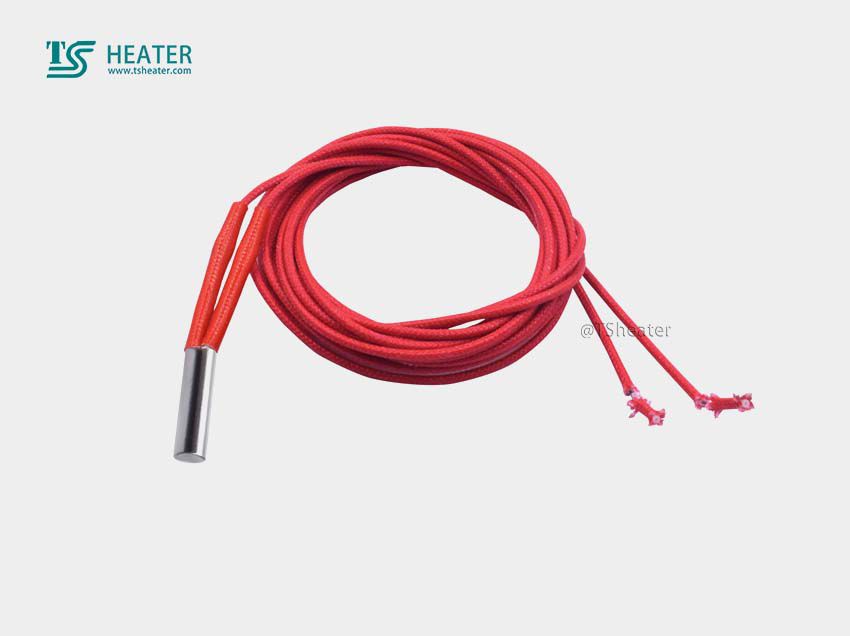

3D printer heater cartridge, this is a heater with high technical requirements. In China, not all factories can produce such 3D printer cartridge heaters. The production of TS heater is very mature and very popular among customers. Mainly used in high-end 3D printers in Europe and America.
3D printer heater cartridge, this is a heater with high technical requirements. In China, not all factories can produce such 3D printer cartridge heaters. The production of TS heater is very mature and very popular among customers. Mainly used in high-end 3D printers in Europe and America.
Features of 3D printer cartridges:
1. The minimum diameter is 3 mm.
2. The length is not limited, 15 to 2000mm
3. High power density, the highest power density is 50W per square centimeter.
4. Long life
5. Warranty: one year
6. According to the use environment, different types of wires can be used.
3D printer heating cartridge application:

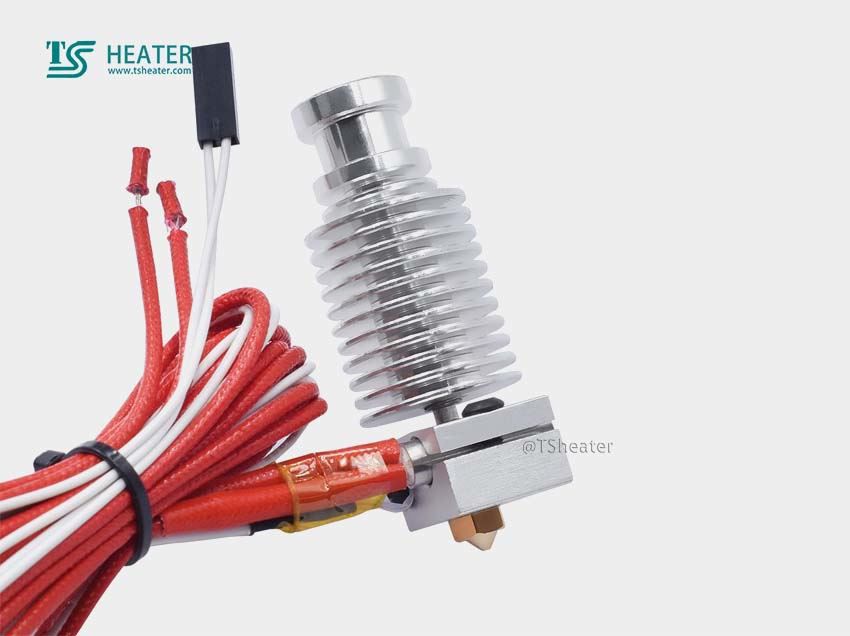

* 3D printer.
*Extruder.
*Injection and blow molding.
*Food processing machinery.
*Packing Machine.
*Hot runner bushing.
*Hot plates, molds, and molds.
* medical equipment.
Technical tolerances of heating cartridges for 3D printers:
The outer diameter of the heating cartridge of the 3D printer: +0 -0.05mm
The length of the heating cartridge of the 3D printer: ±0.3mm
Cold resistance: ±5%
Common type:
Nickel core glass fiber high-temperature wire
The heat-resistant temperature is 300 degrees, and the bending resistance is general. It is suitable for 3D printing equipment for heating module fixed models.
Quality guarantee period: 1 year
Substandard product score: 0.03% (Reason: the wire is damaged, the resistance deviation exceeds the standard, but it does not affect the normal use)
Product damage rate: 0.05% (referring to the product cannot be used normally during the quality guarantee period)
Welcome to inquiry~
